Grass Valley Kayak HD Installation v.6.9.4 Jun 02 2011 - Manual (Page 122)

122 Kayak HD — Installation and Service Manual
Section 3 — Configuration
Install - Misc Menu

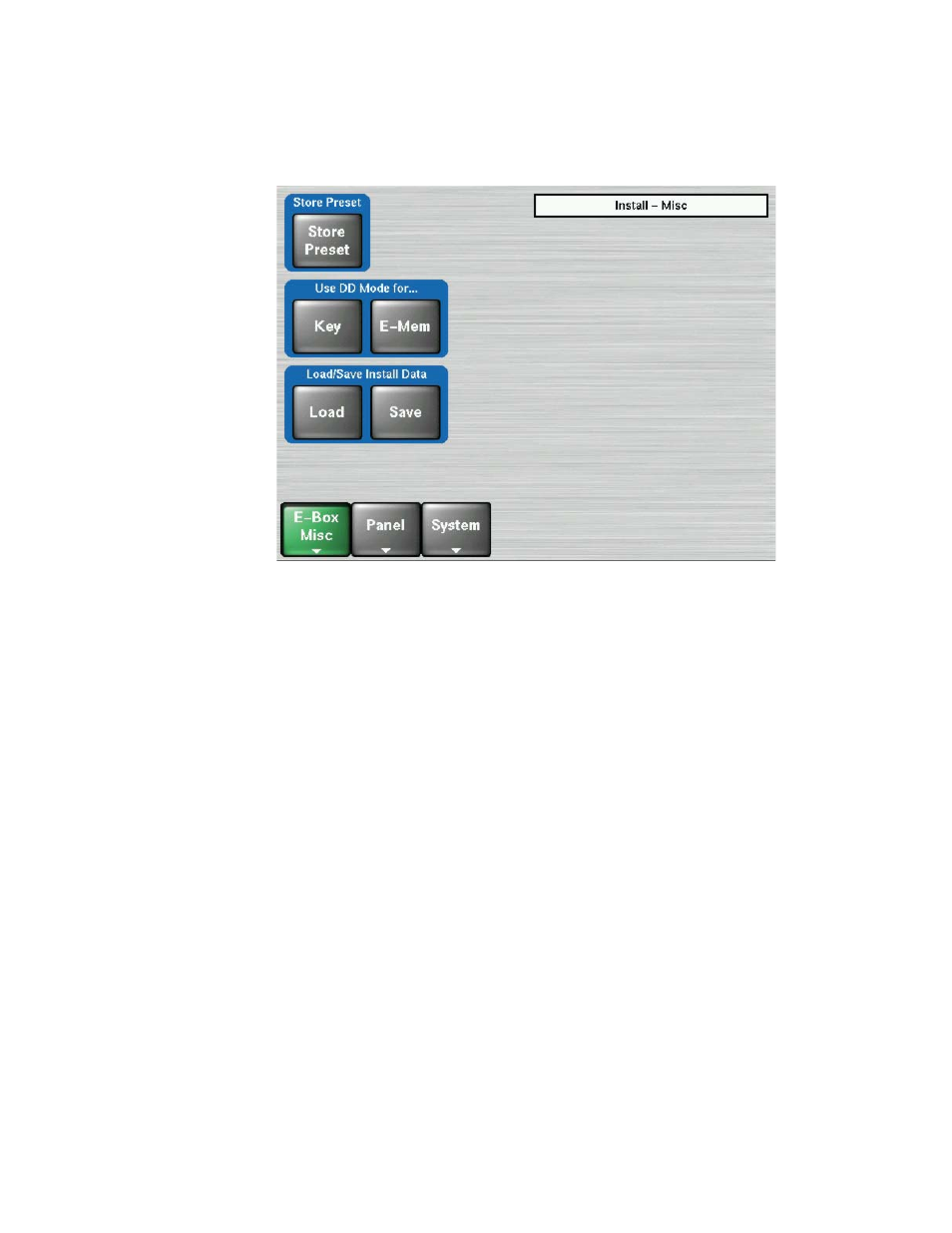

Figure 78. Install - Misc Menu
Store Preset
Pressing Store Presets the panel user operating settings are saved. To recall
the settings use the Recall Operation Preset button in the Home menu.
DD Modes
In the Default Mode (buttons not illuminated) the behavior of Kayak’s E-
MEM and Keyers system is closer to that of Kalypso/Zodiak switchers.
If a DD Mode button is activated (button illuminated) the behavior is like that
of the KayakDD or XtenDD switcher systems.
Load Save Install Data
Used to load or save all Install settings to or from a supported USB stick.
Note The Save button is grayed out (inoperable) if a USB stick is not present in a
supported control panel USB port. The Load button is grayed out if no USB
stick is present of if no files are available to load from the USB stick. USB
ports labeled SPARE are not supported.
