12. Tutorials
Products
The compact router applies logic to the port direction setting when a master port is connected to a
dynamic port. In this case, the machine at the dynamic port is always controlled and the machine at
the master port is always
controlling .
Configuration
Configuring the ports of a machine control router requires either CRConfig or CRSC.
The Control Panels
Control panels are optional if you have an automation system.
1RU Panels
The CP1616 control panel has 38 buttons:

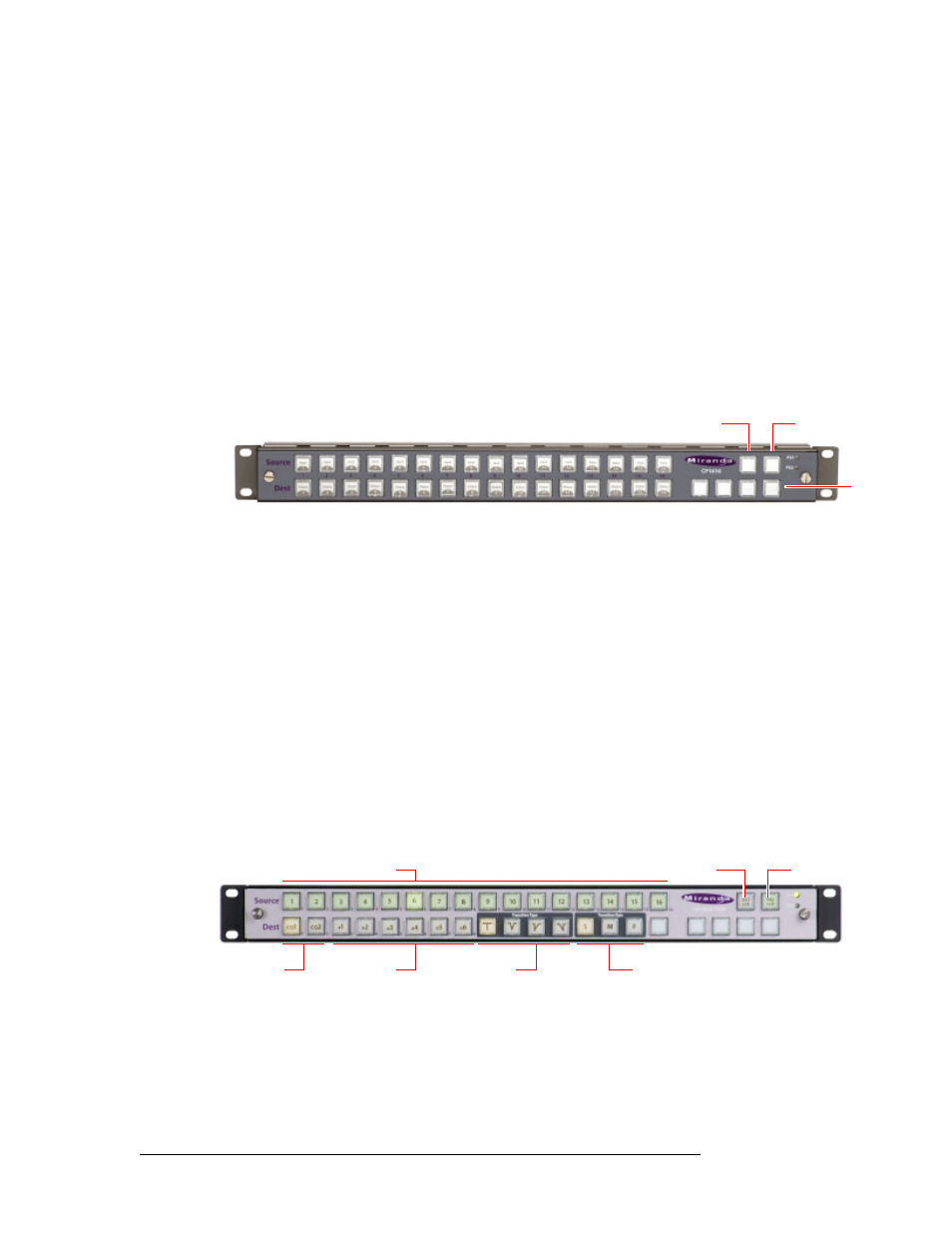

Figure 12-24. Front view of the CP1616 Control Panel
The CP1604 control panel resembles the CP1616, but it has 4 buttons in the lower row on the left,
instead of 16. The CP1602 has 2 buttons in the lower row on the left.
The CP0808 has 2 rows of 8 buttons at the far left.
In stand-alone systems, a CP1616 has 16 source selection buttons, 16 destination selection buttons,
the 2 lock buttons shown, and 4 level selection buttons (as shown).
In a Compact Router Series system, all buttons except the lock buttons (shown) are configurable. In
an NV9000 system, all buttons are configurable, including the lock buttons.
You can mount a 1RU panel on any 1RU router or remote panel module.
The CP3201 is a 1RU panel that resembles the CP1616, but it has 32 source buttons (in 2 rows of
16) and no destination buttons. The CP3201 cannot be used as a captive panel. Its design requires a
CRSC or NV9000 network.
CQX Panel
The CP1602-CQX is also a 1RU control panel that has 38 buttons:
Figure 12-25. Front view of the CP1602-CQX Control Panel
The CP1602-CQX control panel has 16 source buttons, 2 CQX destination buttons, 6 auxiliary des-
tination buttons, 4 transition type buttons, 3 transition rate buttons, and 7 function buttons.
Of the function buttons, 5 are presently disabled, reserved for future use, and two are active. The
active buttons are ‘Destination Lock’ and ‘Panel Lock’.
Panel Lock Destination Lock
Level Selection
Panel Lock Destination Lock
Transition Rate Transition Type CQ Outputs (2) Aux Outputs (6)
Inputs (16)
