13. Operating Panels
Performing Takes
3 Press source S.
Pressing another destination button (always) starts a new take.
In standard mode, a normal take occurs on all selected levels.

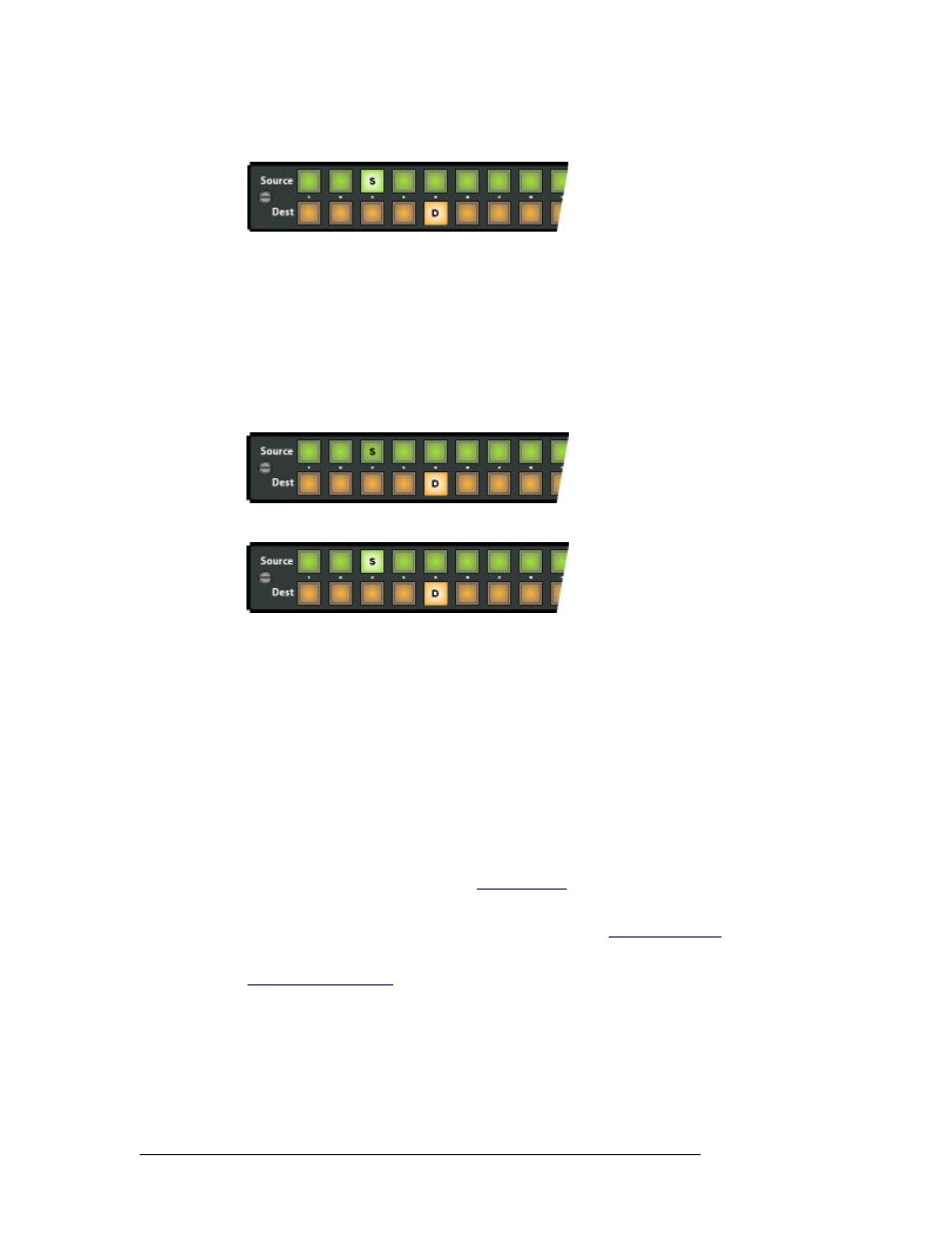

Example — Normal Take in Enhanced Mode
You want to route source S to destination D.
1 Do not press any level buttons. Doing so initiates a breakaway for the previously chosen desti-
nation.
2 Press destination D.
3 Press source S.
Pressing another destination button (always) starts a new take.
In enhanced mode, a normal take occurs on all the levels defined for the destination.
Breakaway Takes
A breakaway takes multiple sources on different levels to a destination. Breakaway ‘takes’ are per-
formed on all control panels except CQX panels.
To perform a breakaway, first press a destination button. Then alternately press level buttons (one
or more) and source buttons. The multiple ‘takes’ occurs immediately when you press the source
buttons. The previous route (for the destination) is lost.
Please note:
• Takes on CP3201s are different. See CP3201 Takes on page 104.
• If a destination is locked, the destination button is usually red, high-tally when selected. You
cannot perform a take for a destination that is locked. See Performing Locks on page 107.
• The meaning of a take for a machine control router is different from takes on other routers. See
Machine Control Takes on page 106.
Example — Breakaway in Standard Mode
You want to take SD video from source 1 to destination 2. But you also want to take AES12 from
source 3 and both AES34 and AES56 from source 4.
(Assume that these sources and destinations are enabled and remain enabled.)
