13. Operating Panels
Performing Takes

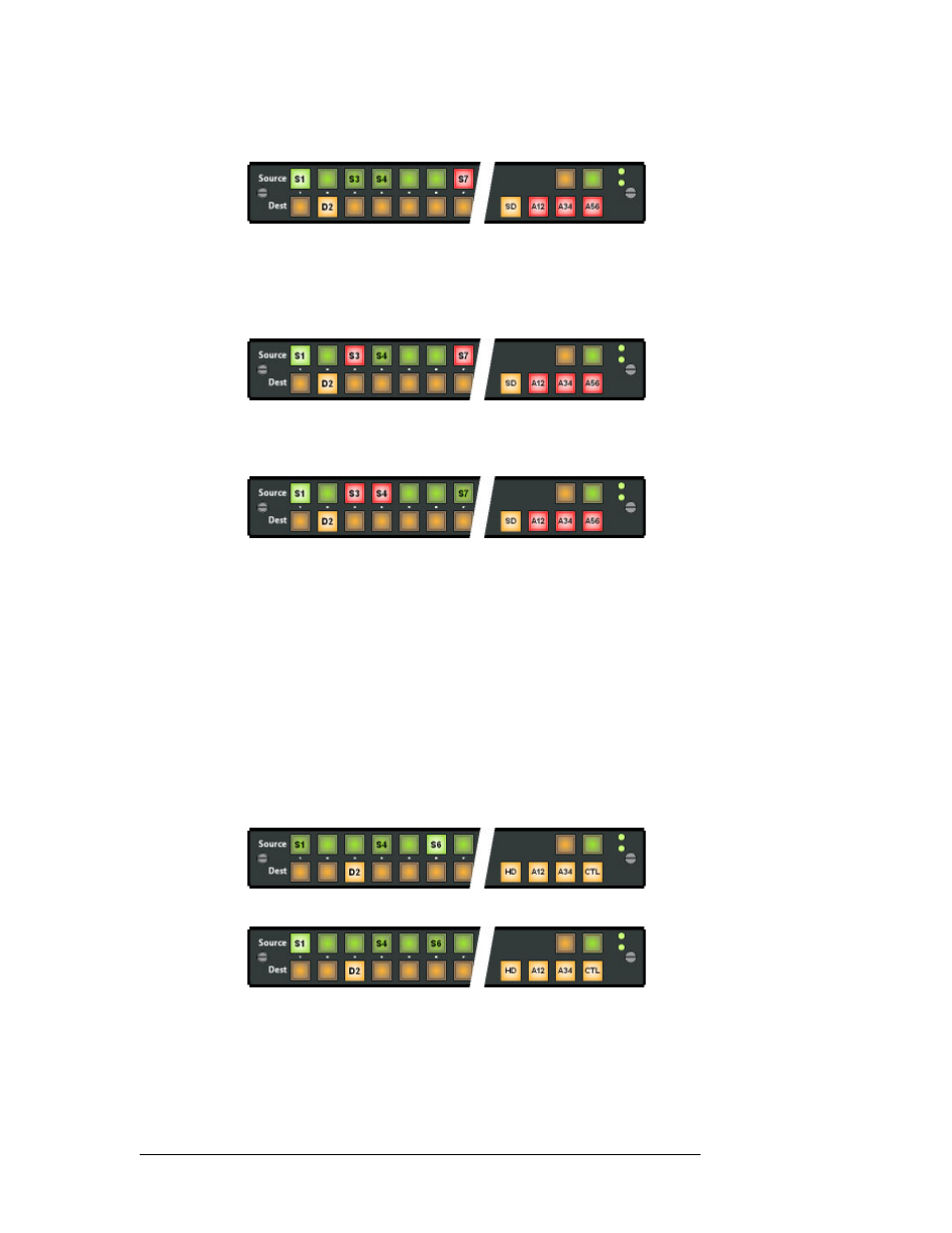

2 Select just level SD. Press source 1.
Source 1 is high-tally because you have taken SD — the primary level — from this source.
Source 7 is red because the other levels still come from source 7. (The SD level button is amber
because SD is the primary level. The other level buttons are red because they are not primary.
All level buttons go high-tally once again, red or amber.)
3 Select just level A12. Press source 3.
Source 3 goes high-tally red because it is not the primary source. All level buttons go high-tally
once again.
4 Select both A34 and A56. Press source 4.
Source 4 goes high-tally red because, like source 3, it is not the primary source. All level but-
tons go high-tally once again. Source 7 goes dim because no other levels come from source 7.
Pressing another source button without selecting a level would revert the take to a normal take,
undoing the breakaway you started.
Pressing another destination button (always) starts a new take.
Example — Breakaway in Enhanced Mode without Hold — Variant 2
You want to take all levels from source 1 to destination 3 except CTRL, which is to come from
source 4. Destination 3 is presently connected to source 6.
The levels defined for the destination are HD, A12, A34 and CTL. HD was defined first in the des-
tination description. Therefore it is considered the primary level.
1 Press destination 3. The previous source was 6 so it is high-tally.
2 Do not press a level button. Press source 1.
Source 1 goes high tally because it provides all levels including the primary level. (All level
buttons are amber because all levels belong to the primary source.)
