13. Operating Panels
Performing Takes

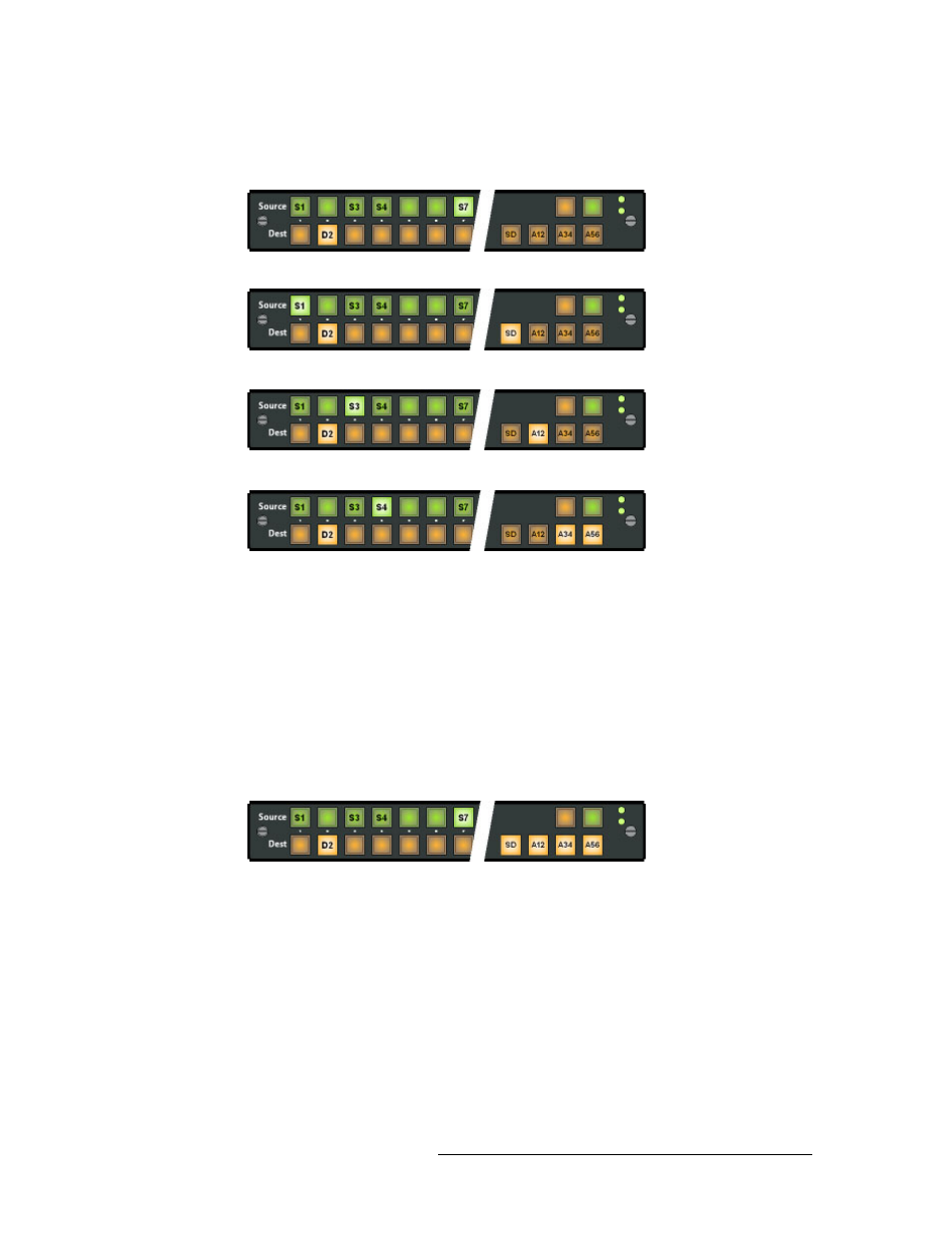

The level buttons are SD, A12, A34, and A56.
1 Press destination 2. The previous source was source 7 so it is high-tally.
2 Select level SD (only). Press source 1.
3 Select level A12 only. Press source 3.
4 Select levels A34 and A56 only. Press source 4.
Double-press any of the level buttons to highlight the source that contributes that level.
You can continue to break sources away, ad infinitum, and you can come back to the destination
later and it will still show the breakaway. You could add or remove breakaway sources at that time.
Example — Breakaway in Enhanced Mode without Hold — Variant 1
You want to take SD video from source 1 to destination 2. But you also want to take AES12 from
source 3 and both AES34 and AES56 from source 4.
The levels defined for the destination are SD, A12, A34, and A56. SD was defined first in the des-
tination description. Therefore it is considered the primary level.
1 Press destination 2. The previous source was source 7 so it is high-tally.
