36 Rev 2.0 • 29 Mar 10
6. Setting Up Machine Control Routers
An Overview of Machine Control Routers
How to Change a Port Type
1 From the left-hand navigation area, expand the ‘System Configuration’ pane and click ‘Setup
Machine Control Router’.
2 Select the router and locate the row listing the ‘Port Number’ you want to update.
3 On the row, click in the ‘Port Type’ column. A drop-down menu appears:

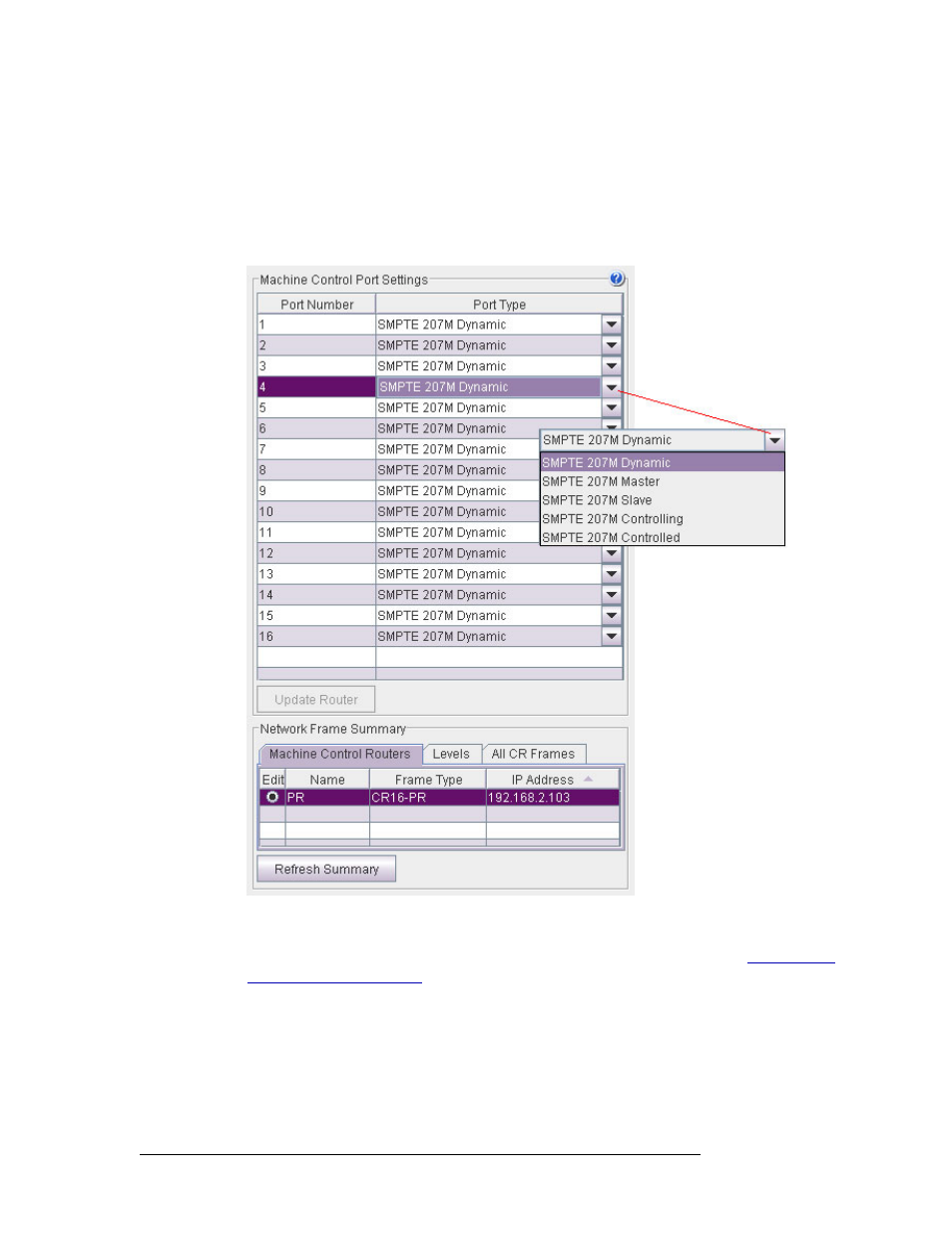

Figure 6-3. Setup Machine Control Router Page
4 From the drop-down menu, select a new port type. There are five types of ports: ‘Controlled’,
‘Controlling’, ‘Dynamic’, ‘Master’ and ‘Slave’. For a complete description, see An Overview
of Machine Control Routers on page 31.
5 Click
Update Router
. CRSC uploads the port configurations to the router.
