Compact Router System Configurator • User’s Guide 83
12. Tutorials
Products

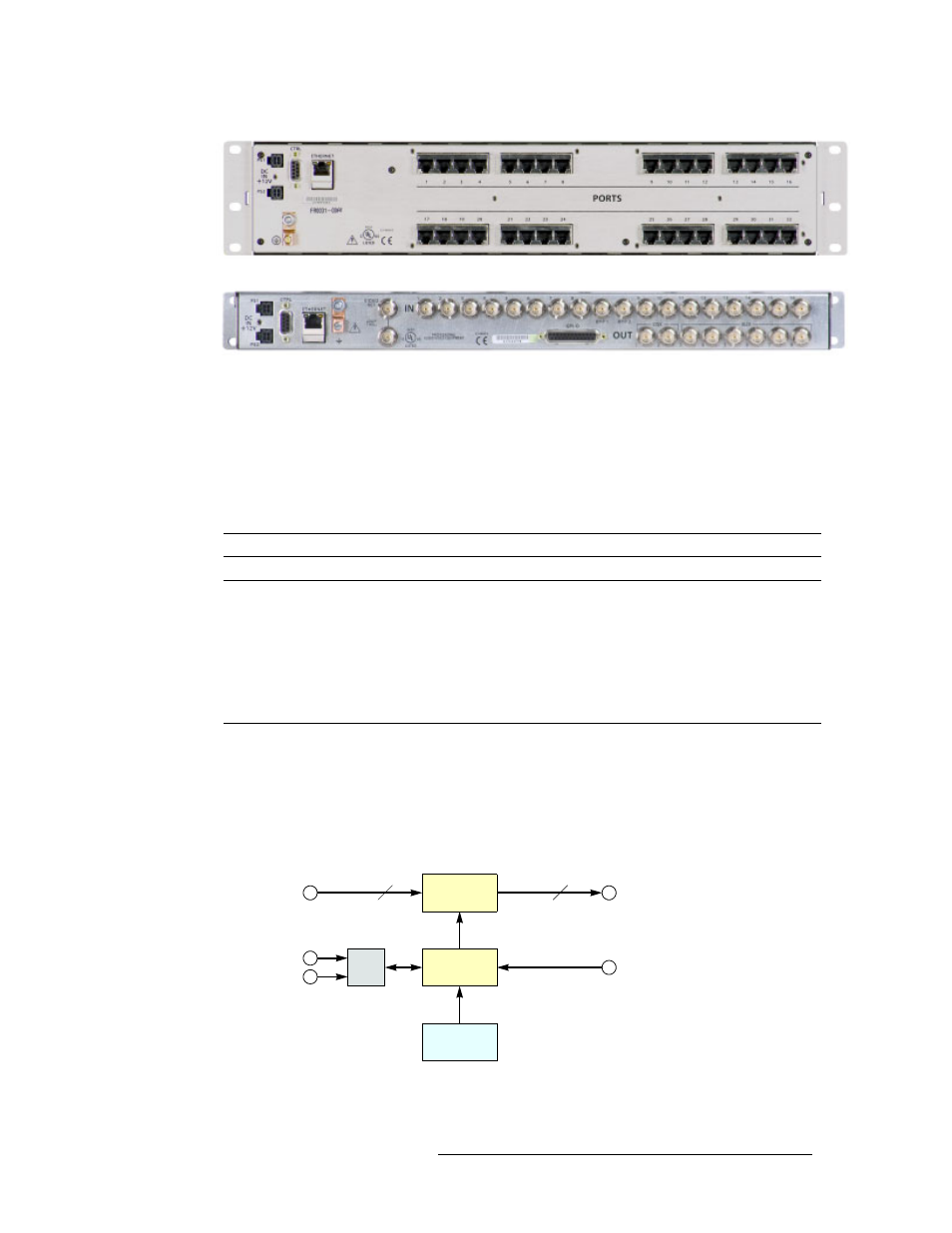

Figure 12-15. Rear View of the CR32-PR Machine Control Router
Figure 12-16. Rear View of the 16×2 CQX Router (HD or SD)
Some routers (e.g., the CR3204-AA or the CR0808-3Gig) have fewer input or output connectors
than shown here.
All compact routers save their state in non-volatile memory. Thus, if a power loss occurs, a router
can recover almost instantly. All compact routers require a few seconds to initialize.
All compact routers have an automation port (DE9, RS-422 or RS-485).
All routers except machine control routers accept these video reference rates:
The machine control routers do not receive video reference signals.
Digital Video Routers
The 1RU digital video routers have 16×16, 16×4, or 8×8 crosspoint matrices, depending on the
model. The 2RU digital video routers have either 32×32 or 32×4 crosspoint matrices.
Figure 12-17 shows a simplified view of the digital video router:
Figure 12-17. Block Diagram of the Digital Video Router
NTSC (30/1.001) Hz frame rate 525 lines/frame
PAL 25 Hz frame rate 625 lines/frame
HD trilevel (24/1.001) Hz frame rate
24 Hz frame rate
25 Hz frame rate
(30/1.001) Hz frame rate
30 Hz frame rate
50 Hz frame rate
(60/1.001) Hz frame rate
60 Hz frame rate 1080p
1080p
1080i
1080i
1080i
1080p, 720p
1080p, 720p
1080p, 720p
M N
µP Logic
Inputs
(Equalized)
Outputs
(Reclocked)
Crosspoint
Switch
Control
Panel
Video
Reference
Automation
Ethernet
(optional)
M = 8, 16 or 32
N = 4, 8, 16, or 32
