13. Operating Panels
Performing Takes

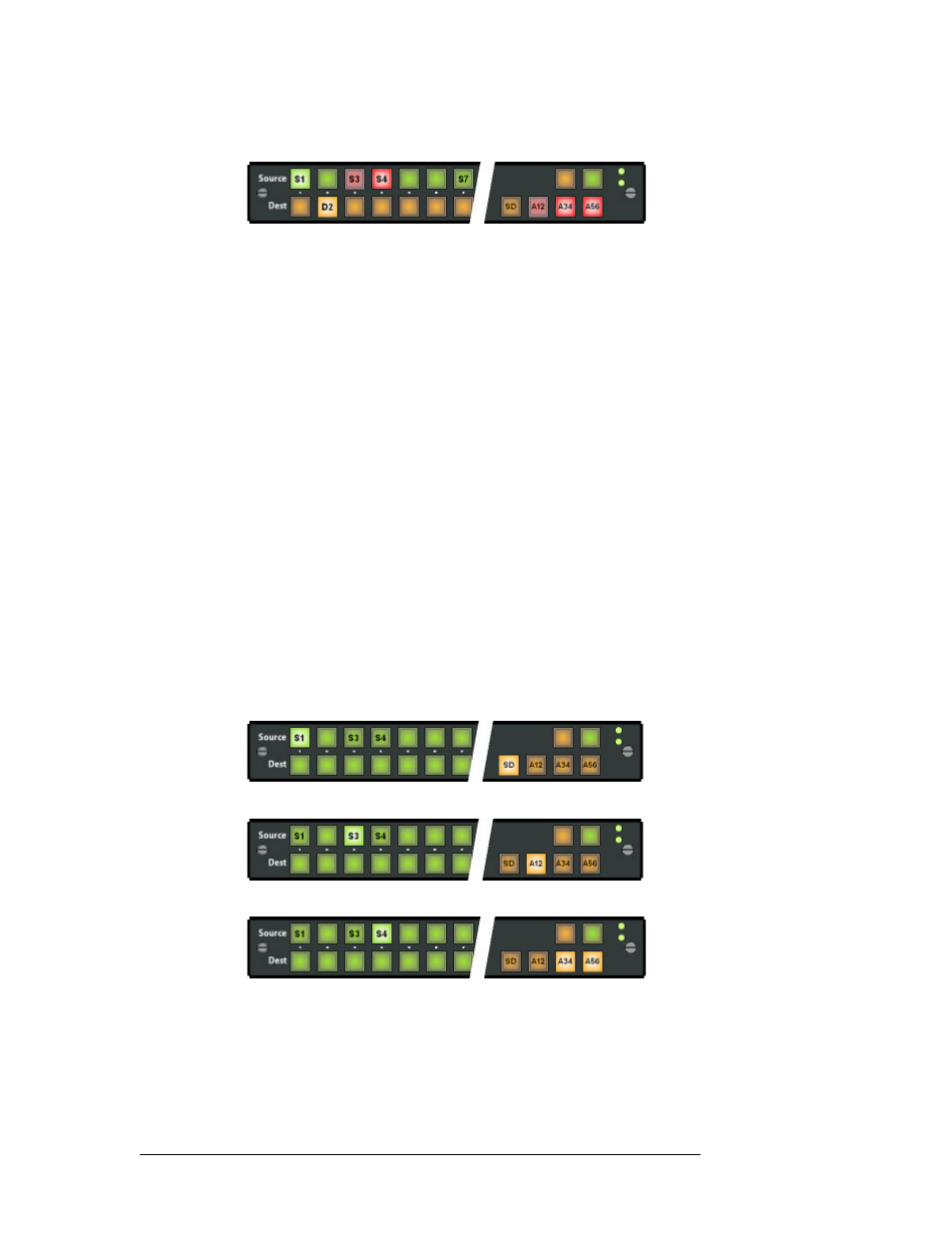

4 Select just A34 and A56. Press source 4.
Source 4 goes high-tally red because, like source 3, it is not the primary source. The level but-
tons remain unchanged. Again, you could choose another source at this point. Pressing another
source button without selecting another level simply changes the source for that selected level
(or levels).
Pressing another destination button (always) starts a new take. If you wish to clear the breakaway
for destination 2, press destination 2, then press a source without selecting any levels.
CP3201 Takes
CP3201 takes are slightly different. In a CP3201, only the default destination which cannot be
selected or deselected. Presently the configuration page for CP3201s contradicts this.
Example — Normal Take for CP3201
You want to route source S to the default destination. Just press source S. It’s a single button press.
A normal take occurs on all the levels defined for the default destination.
Example — Breakaway for CP3201 in Standard Mode
You want to take SD from source 1 to the default destination. But you also want to take AES12
from source 3 and both AES34 and AES56 from source 4.
(Assume that these sources and destinations are enabled and remain enabled.)
The level buttons are SD, A12, A34, and A56.
1 Select just level SD. Press source 1.
2 Select just level A12. Press source 3.
3 Select just levels A34 and A56. Press source 4.
If these levels are selected, you can double-press any of the level buttons to highlight the source
that contributes that level.
You can continue to break sources away, ad infinitum.
To clear the breakaway, select all levels and then press a source.
