6. Setting Up Machine Control Routers
An Overview of Machine Control Routers
Using the ‘Setup Machine Control Router’ Page
In the upper portion of the ‘Setup Machine Control Router’ page, the ‘Machine Control Port Set-
tings’ section displays all currently added ports and the port type. Using this section you can
change the port type. In the lower portion of the page the ‘Network Frame Summary’ section has
three tabs that display data related to machine control routers for easy reference. Each tab displays
either ‘Machine Control Routers’, ‘Levels’ or ‘All CR Frames’ (compact routers) defined in the
network by Name, Frame Type, IP Address and Subnet Mask.

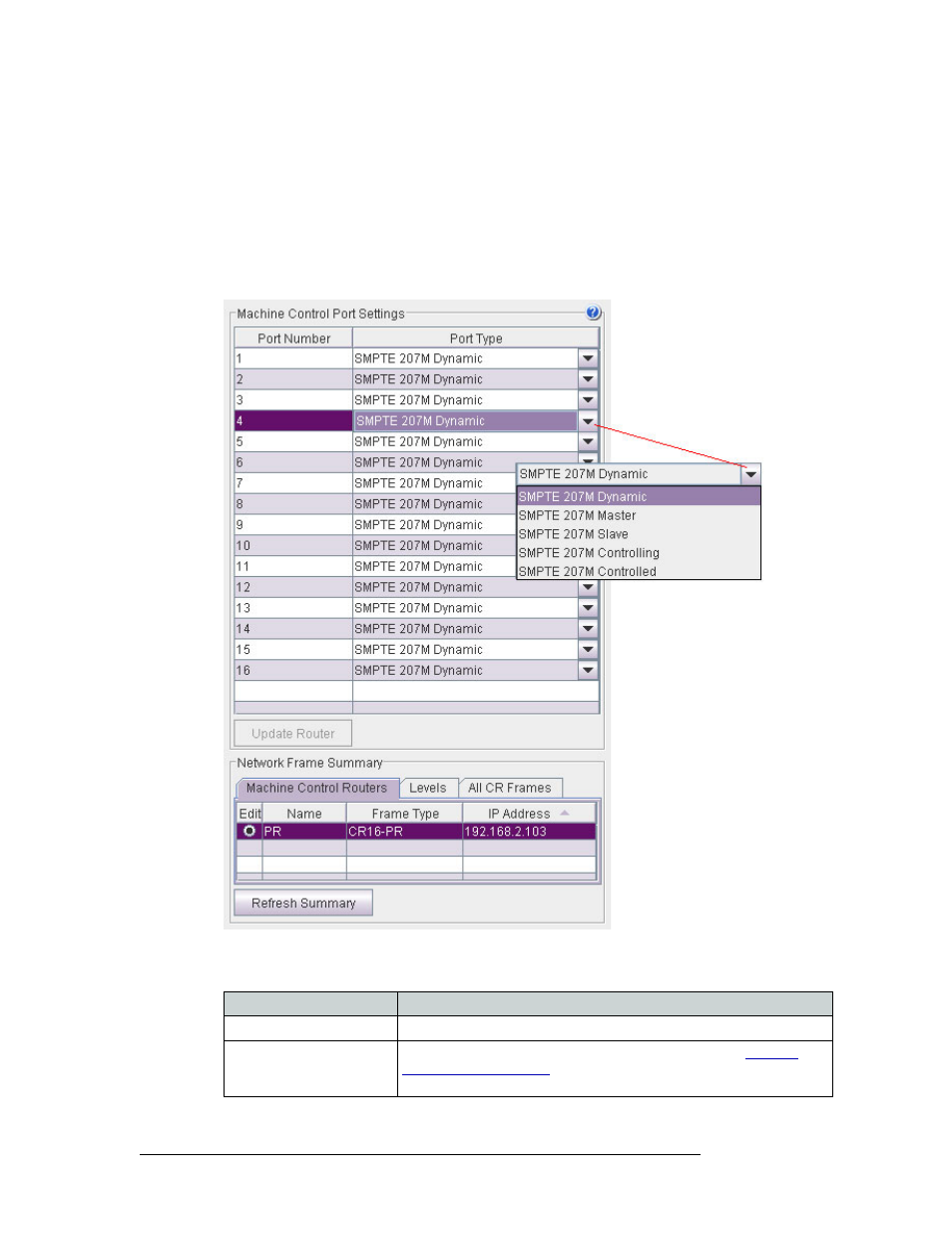

Figure 6-2. Setup Machine Control Router Page
The ‘Machine Control Port Settings’ section displays the following:
Column Description
Port Number Port number of a port on the machine control router.
Port Type Port type assigned to the port. There are five port types. (See Machine
Control Router Port Types on page 32.) Port types are selected from the
drop-down list.
