3
Manual Operation and Setup
28
TNC 124

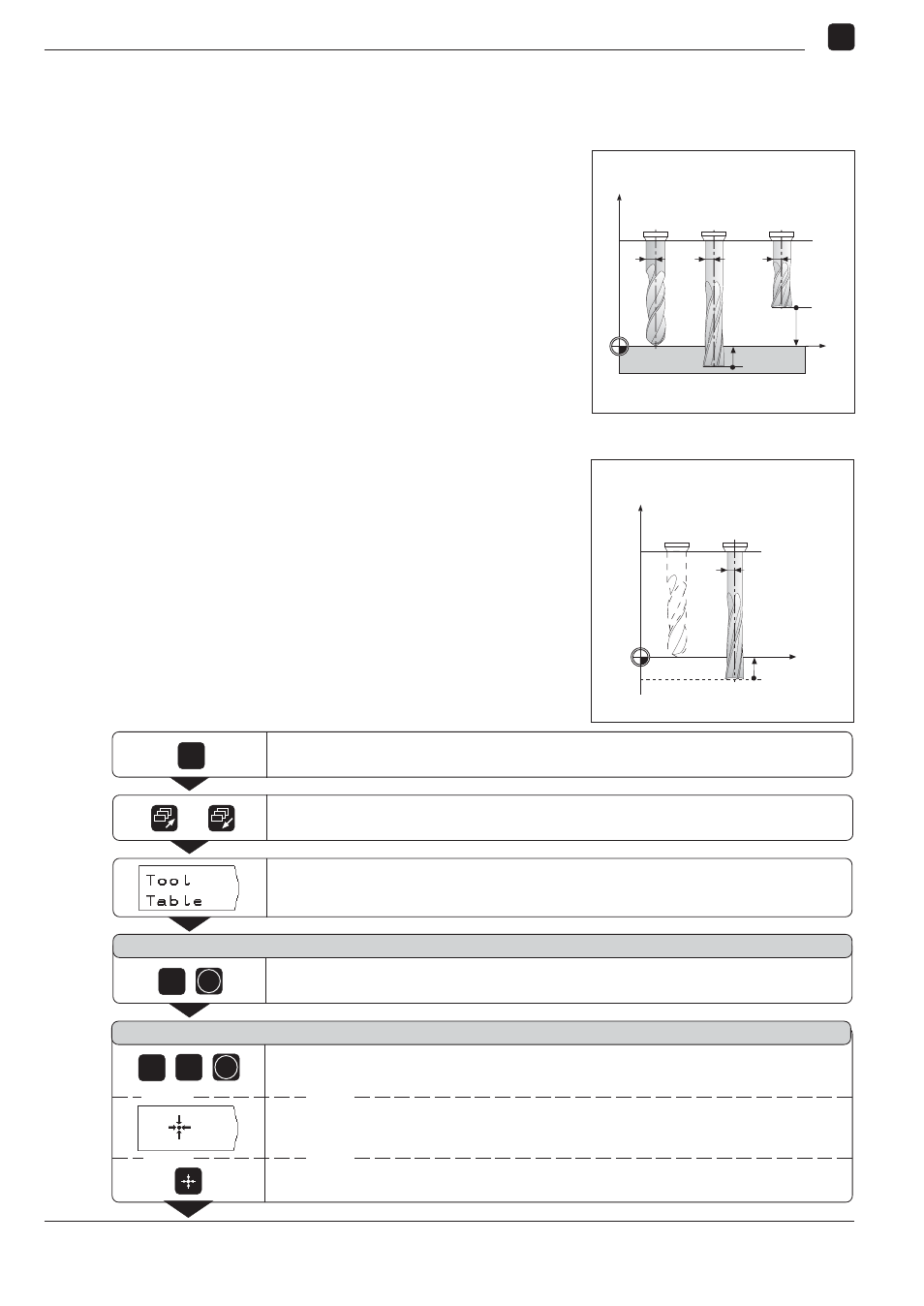

Entering tool length and radius
Enter the lengths and radii of your tools in the TNC's tool table. The
TNC will then take the entered data into account for datum setting
and all other machining processes.
You can enter up to 99 tools.
The tool length is the difference in length DL between the tool and
the zero tool.
To enter the tool length directly move the tool until it touches the
workpiece and transfer the tool position coordinate by using the ac-
tual position capture function.
Sign for the length difference DL
If the tool is longer than the zero tool: DL > 0
If the tool is shorter than the zero tool: DL < 0
Example: Entering the tool length and radius
into the tool table
Tool number:
e.g. 7
Tool length:
L = 12 mm
Tool radius:
R = 8 mm
MOD
Z
X
∆L
3
<0
∆L
2
>0
∆L
1
=0
R
1
T
1
T
2
T
3
R
2
R
3
Z
L
7
>0
L
0
=0
T
0
T
7
R
7
X
Fig. 3.5:
Tool length and radius
MOD
Select the user parameters.
Go to the soft-key row containing Tool Table.
Enter the tool number (such as 7) and confirm your entry with ENT.
7
ENT
Open the tool table.
/
T o o l n u m b e r ?
ENT
Enter the tool length (12 mm) and confirm your entry with ENT.
1
2
T o o l l e n g t h ?
or
or
Capture the actual position in the tool axis by pressing the soft key.
or
or
Capture the actual position in the tool axis by pressing key on the handwheel.
