6.4.3 Watch Page
6-14
6.4.3 Watch Page
The specified data is displayed.

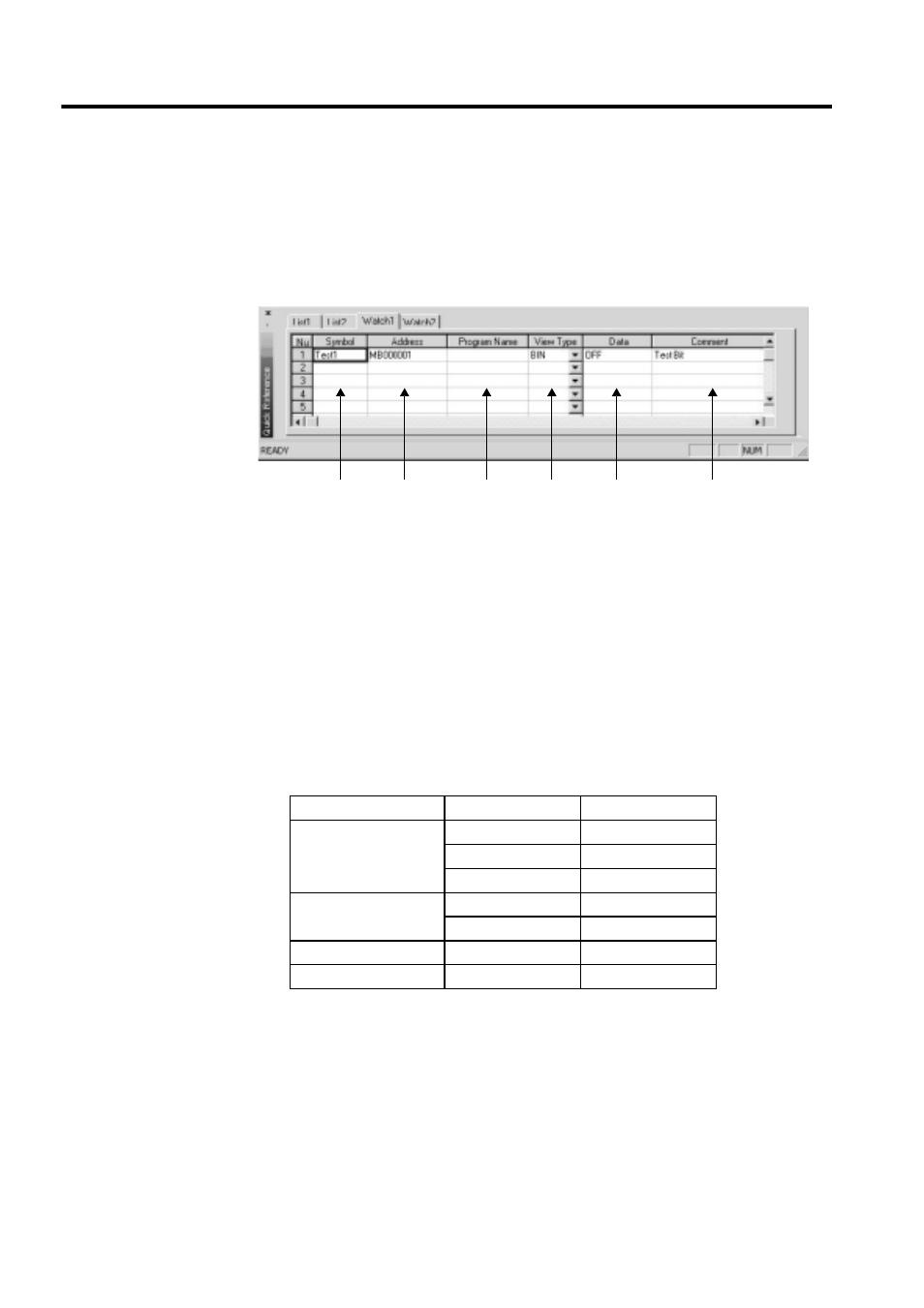

„ Watch Page Configuration
1. Symbol
Input the symbol of data.
2. Address
Input the register address of data.
A-registers and #-registers are not available.
3. Program name
Input the program name. This is required only when a local register is specified in the
address item.
4. View Type
Select the view type of data.
5. Data
The current values of the specified data are displayed. They can be modified except the
C-registers.
6. Comment
The comment of the symbol is displayed. When the comment of the symbol is edited,
the symbol database is also updated.
Address display Type View Type Display data
Word (W) DEC Decimal
BIN Binary
HEX Hexadecimal
Long (L) LONG Decimal
HEX Hexadecimal
Float (F) FLOAT Float
Bit BIN ON(1), OFF (0)
