Epson BrightLink 1485Fi 5000-Lumen Pixel-Shift Full HD Ultra-Short Throw 3LCD Interactive Laser Projector User Manual
Page 200
200
2.

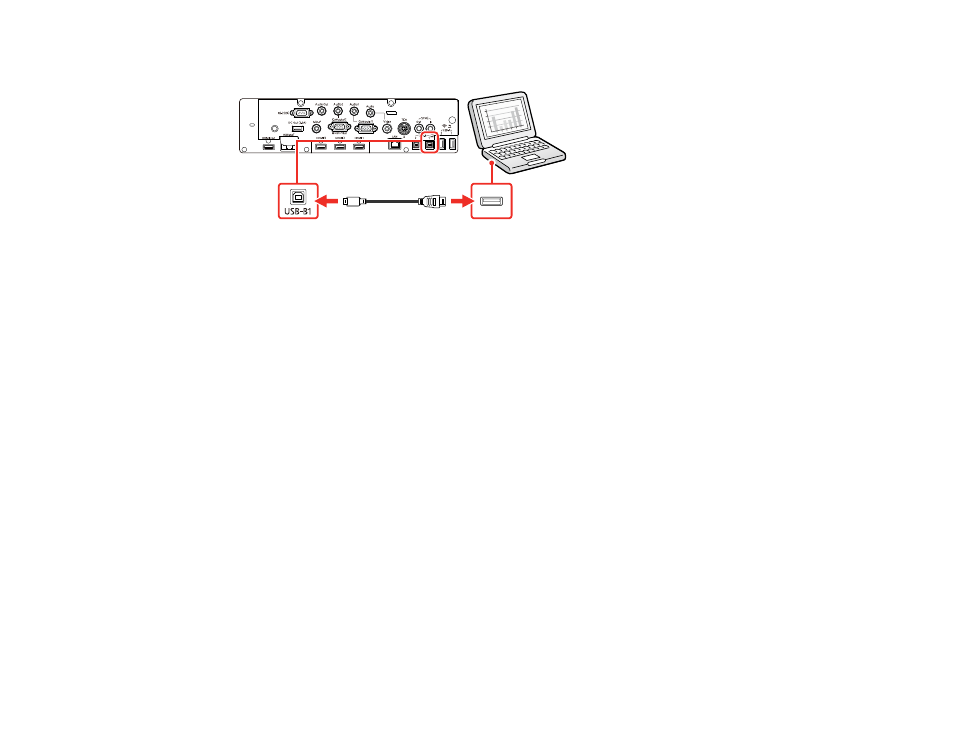

Connect a USB cable to your projector's
USB-B1
port.
3.
Connect the other end to any available USB port on your computer.
4.
Press and hold the
Esc
button on the control panel or remote control as you connect the power cord
to the projector's power inlet.
5.
When the power and Status lights are blue, and the Laser and Temp lights are orange, release the
Esc
button.
The projector shows up as a removable disk on your computer.
6.
Open the removable disk and copy the
pjconfdata.bin
file to your computer.
7.
Once the file has copied, do one of the following:
•
Windows:
Open the
My Computer
,
Computer
,
Windows Explorer
, or
File Explorer
utility.
Right-click the name of your projector (listed as a removable disk) and select
Eject
.
•
Mac:
Drag the removable disk icon for your projector from the desktop into the trash.
The projector turns off when you disconnect the USB cable.
Note:
If the projector does not turn off and the lights continue flashing, see the link below for a
solution.
Parent topic:
Copying Menu Settings Between Projectors
Related references
