36
Connecting External Speakers Using HDMI ARC
If your external speakers or A/V receiver are HDMI ARC-compatible, you can connect them to the
projector's
HDMI2 (ARC)
port using an optional HDMI cable.
In the projector's Settings menu, make sure the
HDMI CEC
setting is enabled and then enable
HDMI2
ARC
. In the projector's Sound menu, set
Sound Output
as
ARC/Optical (PCM)
or
ARC/Optical (Auto)
in
Other Than HDMI3 (Game)
.
Note:
The projector's speakers are disabled when audio is output to a device connected to the
HDMI2
(ARC)
port. If you want to output higher quality audio, set
Sound Output
as
ARC/Optical (Auto)
in the
projector's Sound menu.
1.
Remove the projector's side cover, if necessary.
2.

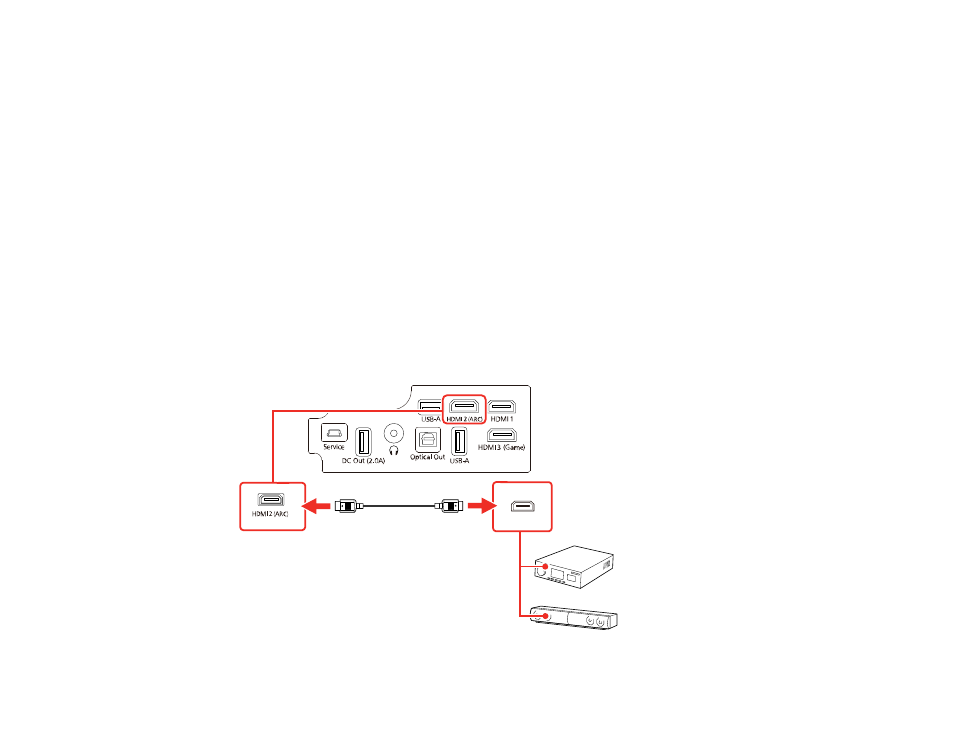

Connect the HDMI cable to the ARC-compatible HDMI port on your external speakers or A/V
receiver.
Note:
To display signals in the 18 Gbps transmission band, such as from a 4K 60 fps source, use a
cable rated for HDMI 2.0 or higher or you may have trouble displaying an image.
3.
Connect the other end to the
HDMI2 (ARC)
port on the rear of the projector.
