125


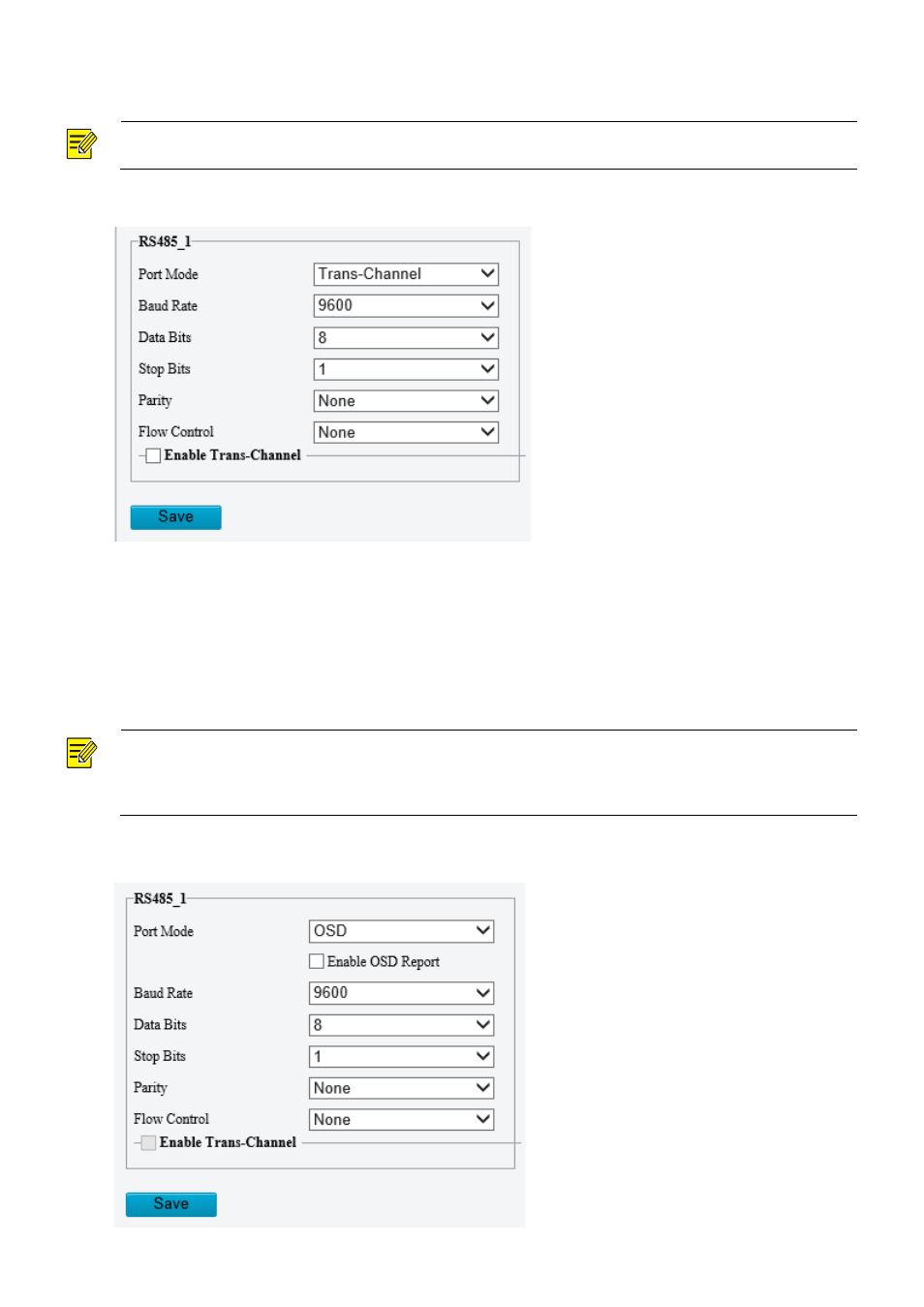

Trans-channel
Used to transmit data between the RS485 port and the third-party device.
NOTE!
This feature is not available to all camera models.
(3) Set Port Mode to Trans-Channel .
(4) Enable Trans-Channel .
(5) Enter the destination address and port, that is, the IP address and port number of the third-party
device to which the transparent channel is connected.
(6) Click Save .

OSD
Receive serial port information from the third-party device through the RS485 port and then overlay the
parsed information on the OSD.
NOTE!
In order for the camera to correctly parse the received serial port information, make sure the serial
port information sent from the third-party device conforms to our data formats. Contact our technical
support for more information.
(1) Set Port Mode to OSD .
