16
7.3
Switching off

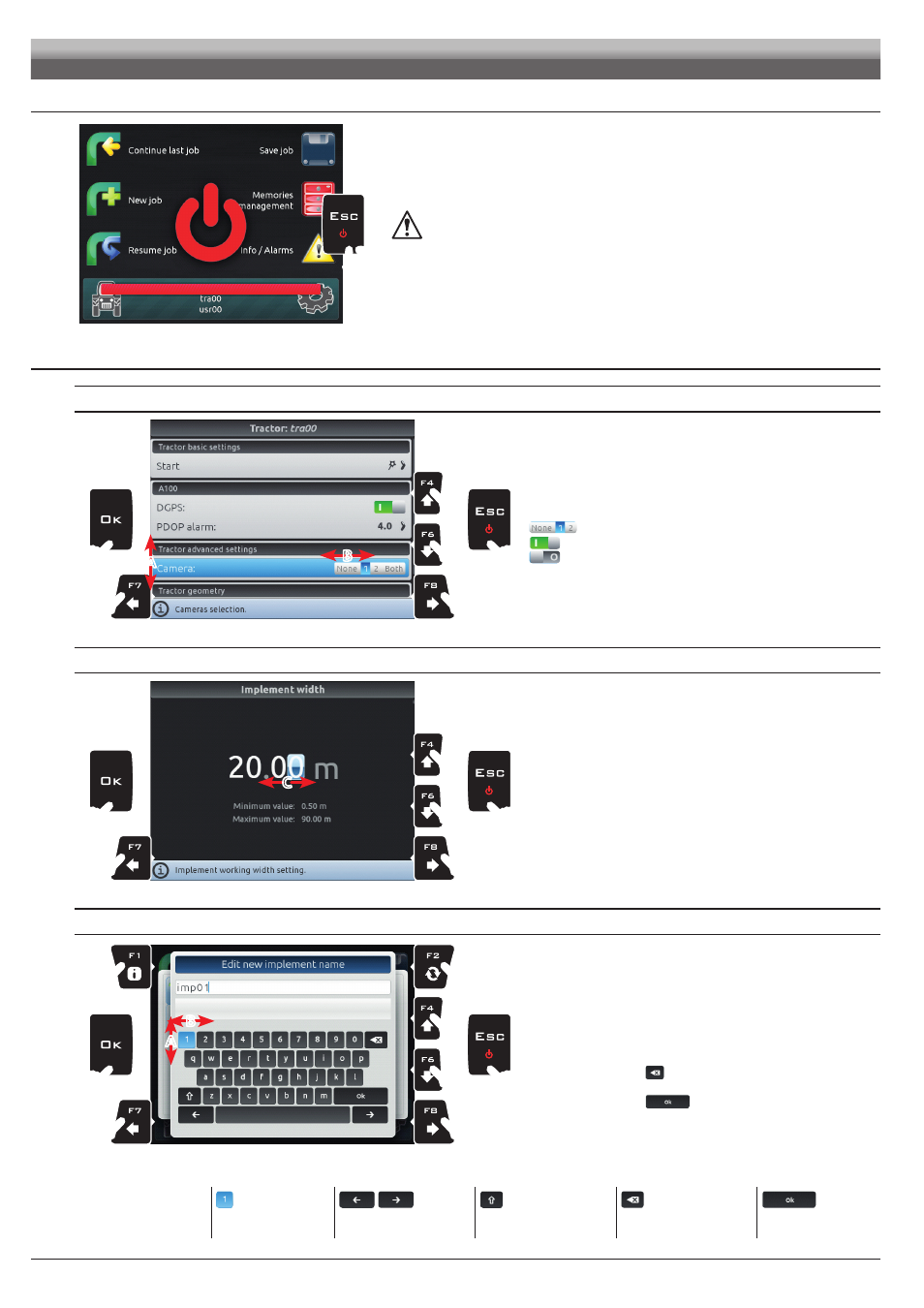

Fig. 29
Keep
ESC
key pressed until Bravo 400S is switched off.
During switching off Bravo 400S saves the current job, do NOT press any
other key and do NOT disconnect the power supply until Bravo 400S
display turns off.
WARNING: ALWAYS use the special key to switch off the device;
otherwise ALL data concerning the spraying and the setup will be lost.
7.4
Use of keys for setup
SELECTION AND ACCESS TO MENU ITEMS
1A
1A
1B
1B
3
2
B
A
Fig. 30
1A Press in succession to move across the menu items (UP / DOWN).
The selected item is highlighted with a blue bar (
A).
1B Press in succession to move across the available options (LEFT / RIGHT).
Display options (
B):
The selected item is highlighted with a blue bar.
Active option
Inactive option
2 Press to access the selected item or to confirm modification.
3 Press to exit screen without confirming modification.
ENTERING A NUMERICAL VALUE
2
2
1
1
4
3
C
Fig. 31
1 Press to move the cursor (C) across the digits
2 Press to edit the highlighted digit (increase, decrease)
3 Press to confirm
4 Press to exit screen without confirming modification
ENTERING TEXT
1A
1A
1B
1B
4
2
A
B
2
3
Fig. 32
1A Press in succession to select the character you wish to type
(UP / DOWN).
1B Press in succession to select the character you wish to type
(RIGHT / LEFT).
2 Press to:
- Confirm the selected character
- Delete the character before the cursor
(when the symbol "
" is selected)
- Save the entered text
(when the symbol "
" is selected)
3 Press to delete the character before the cursor
4 Press to exit screen without confirming modification
Legend:
imp01
Typed Name
|
Cursor
Selected character
Shift cursor across name
characters
Caps lock
Deletes the character
before the cursor
Saves the entered text
SETUP
