28

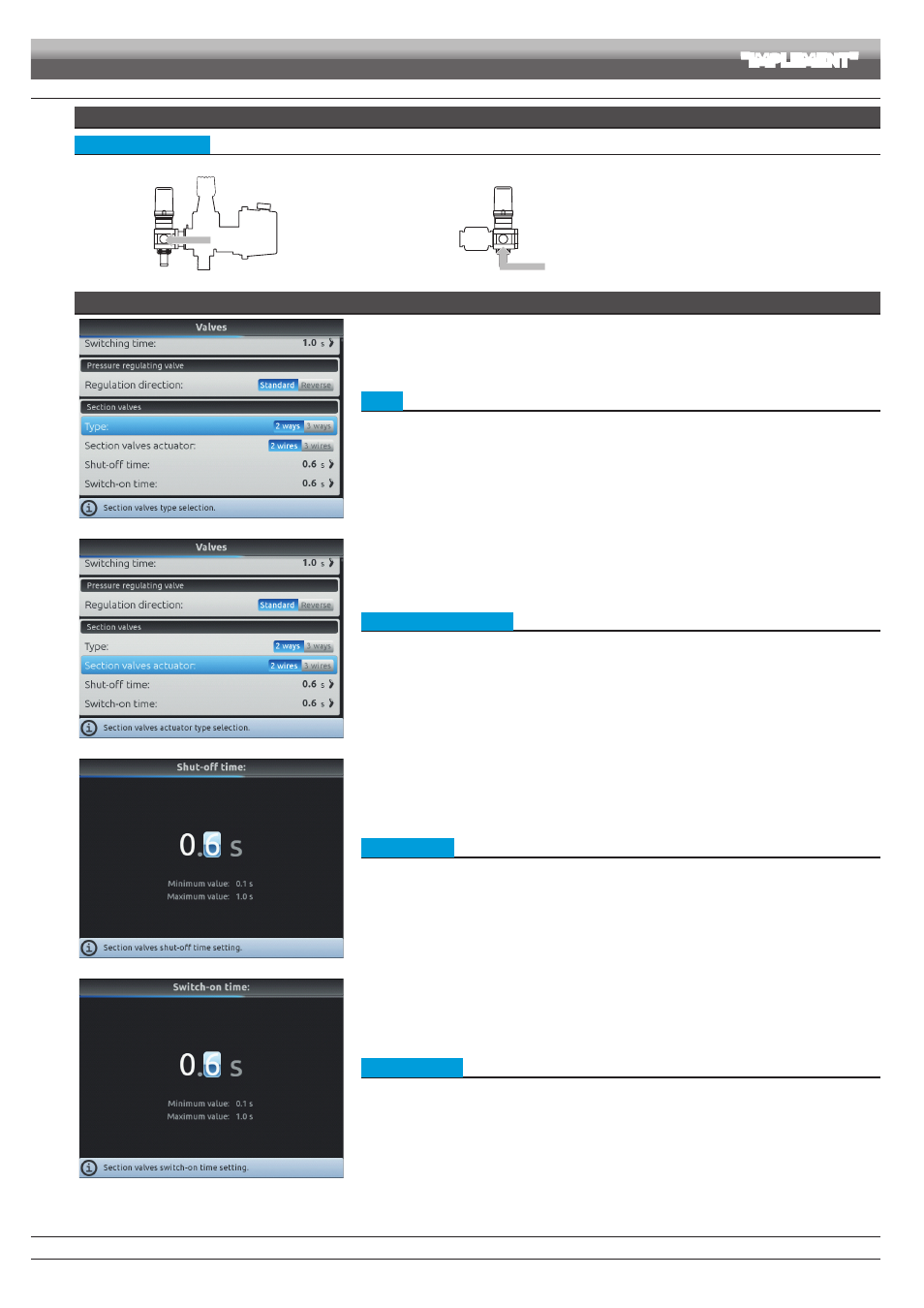

PRESSURE REGULATING VALVE
• Regulation direction
Indicate the type of installed control valve. Available options are:
• Standard = • Reverse =
SECTION VALVES
Fig. 78
• Type
Indicate the type of installed section valves. Available options are:
• 2 ways (valves without calibrated backflows)
• 3 ways (valves with calibrated backflows)
Fig. 79
• Section valves actuator
Indicate which kind of actuator controls the section valves and the main control valve. Available options are:
• 2 wires
• 3 wires
Fig. 80
• Shut-off time
Indicate the time between the moment when the command is sent to the section valves and the actual
moment in which product output stops.
Fig. 81
• Switch-on time
Indicate the time between the moment when the command is sent to the section valves and the actual
moment in which product output starts.
> > > 10.1.5 Valves
END 10.1.5 Valves
ADVANCED SETUP "IMPLEMENT"
