Page 63
63

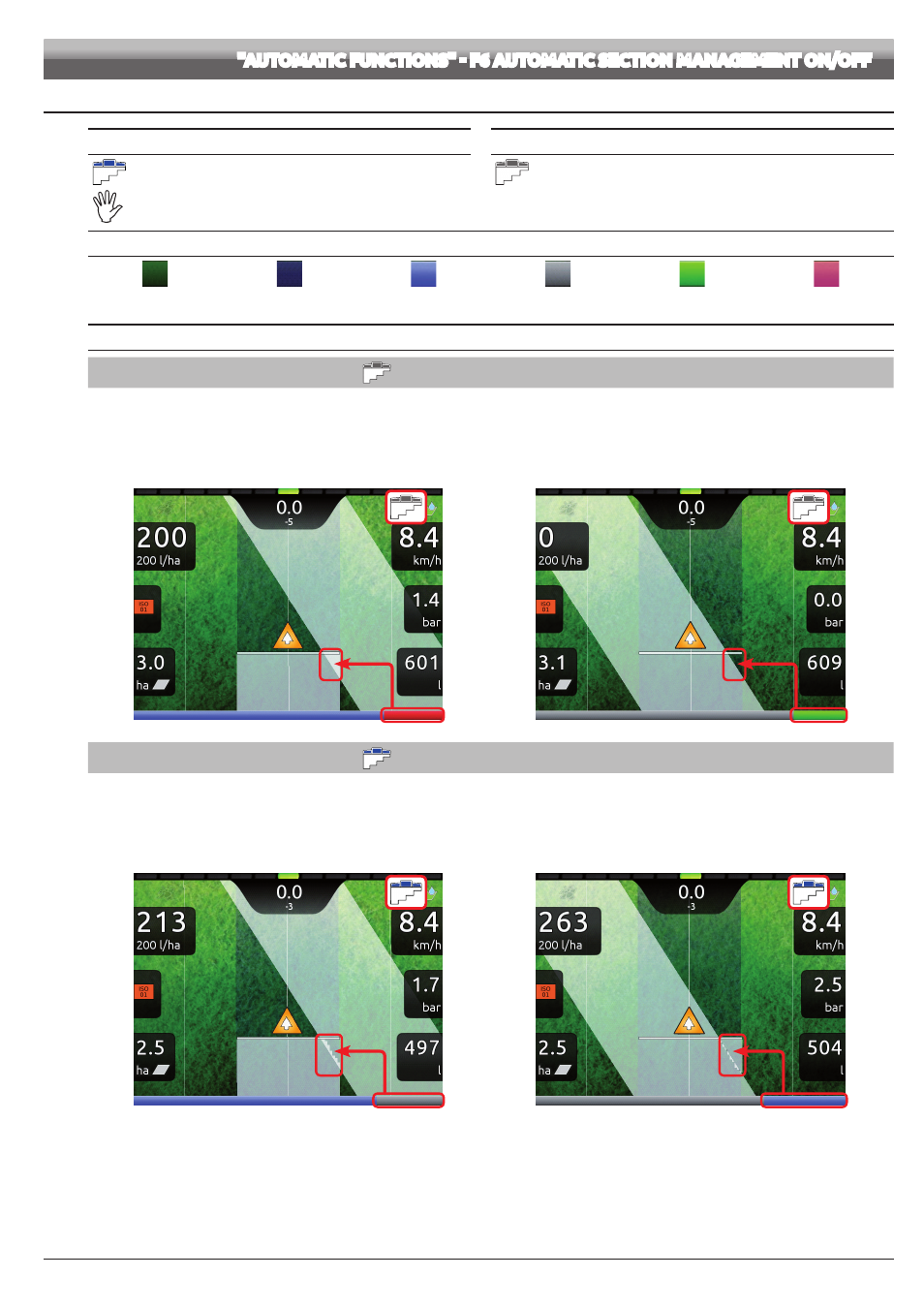

12.4
Boom section management
AUTOMATIC MANAGEMENT ON
AUTOMATIC MANAGEMENT OFF (MANUAL)
The section valves are closed or opened automatically.
Section valves must be opened or closed manually.
To change section valve management mode, use function
F6
Automatic section management ON/OFF
(par.
TREATMENT AND BOOM SECTION STATUS
Main control
OFF
Sections
OFF
Main control
OFF
Sections
ON
Section
ON
Section
OFF
Zone to be sprayed.
OPEN SECTION
Zone already sprayed.
CLOSE SECTION
OPENING AND CLOSING SIGNALS
MANUAL SECTION MANAGEMENT
When overlapping is above the set value for the
Sections overlapping limit
(par. 10.1.11), Bravo 400S warns that the relevant sections must be CLOSED (Fig. 219).
Close the section valve with the relevant switch: Bravo 400S will confirm closure on the display. As the machine advances, the signal is triggered for each section.
When overlapping returns within acceptable levels, Bravo 400S signals that the relevant sections can be OPENED (Fig. 220). Open the section valve with the relevant
switch: Bravo 400S will confirm opening on the display. As the machine advances, the signal is triggered for each section.
Closing signal
Opening signal
Fig. 219
Fig. 220
SECTION AUTOMATIC MANAGEMENT
When overlapping of ONE or ALL boom sections is above the set value for the
Sections overlapping limit
(par. 10.1.11), Bravo 400S CLOSES the relevant
sections (Fig. 221). It is not necessary to intervene on the switches. Bravo 400S closes the sections automatically. Job interruption is shown on the display in real time.
When overlapping returns within the set limit, Bravo 400S opens the relevant sections automatically. Job resumption is shown on the display in real time (Fig. 222).
Automatic section closing
Automatic section opening
Fig. 221
Fig. 222
"AUTOMATIC FUNCTIONS" - F6 AUTOMATIC SECTION MANAGEMENT ON/OFF
