> > > 10.1.11 Working parameters
• Spray closing delay
Indicate the distance corresponding to the delayed closing of sections during spraying, to ensure correct spraying range.
NOTE: Negative values indicate that sections are closed in advance with respect to the calculated point.

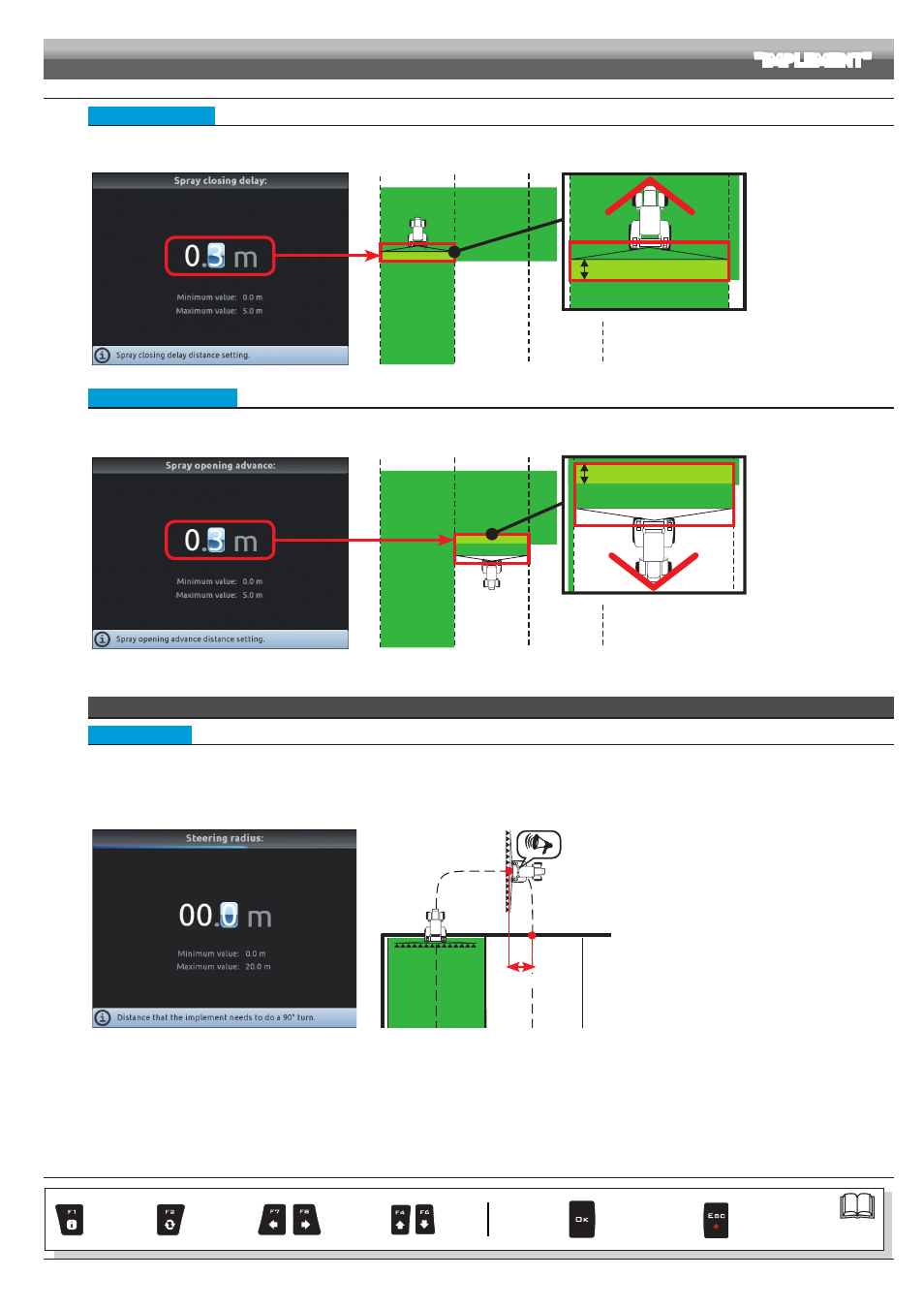

Fig. 118
Closing delay: 0.3 m
Fig. 119
• Spray opening advance
Indicate the distance corresponding to the advanced opening of sections during spraying, to ensure correct spraying range.
NOTE: Negative values indicate that section opening is delayed with respect to the calculated point.
Fig. 120
Opening advance: 0.3 m
Fig. 121
GUIDANCE
• Steering radius
By setting this value, an acoustic alarm will indicate the exact moment when the operator must steer in order to align the machine with the following track, avoiding
unsprayed or overlapping areas between the two sprays.
The acoustic alarm may be enabled or disabled from the menu User > Steering warning (par. 10.3.4).
This distance should correspond to the implement steering radius (
A
in Fig. 123), used at the end of the field to change driving direction and resume spraying on the
next track, but it will have to be adjusted according to the characteristics of the operator and the speed of the machine.
The alarm is triggered ONLY if the direction of the machine is at an angle of more than 85° with respect to the next track.
Fig. 122
A
Fig. 123
ADVANCED SETUP "IMPLEMENT"
Par.
7.4
Exits the function
or data change Confirm access
or data change
Scroll
(LEFT /
RIGHT) Delete
selected
character Increase /
Decrease
of data Scroll
(UP /
DOWN) Enter
selected
character
CONTINUES > > >
