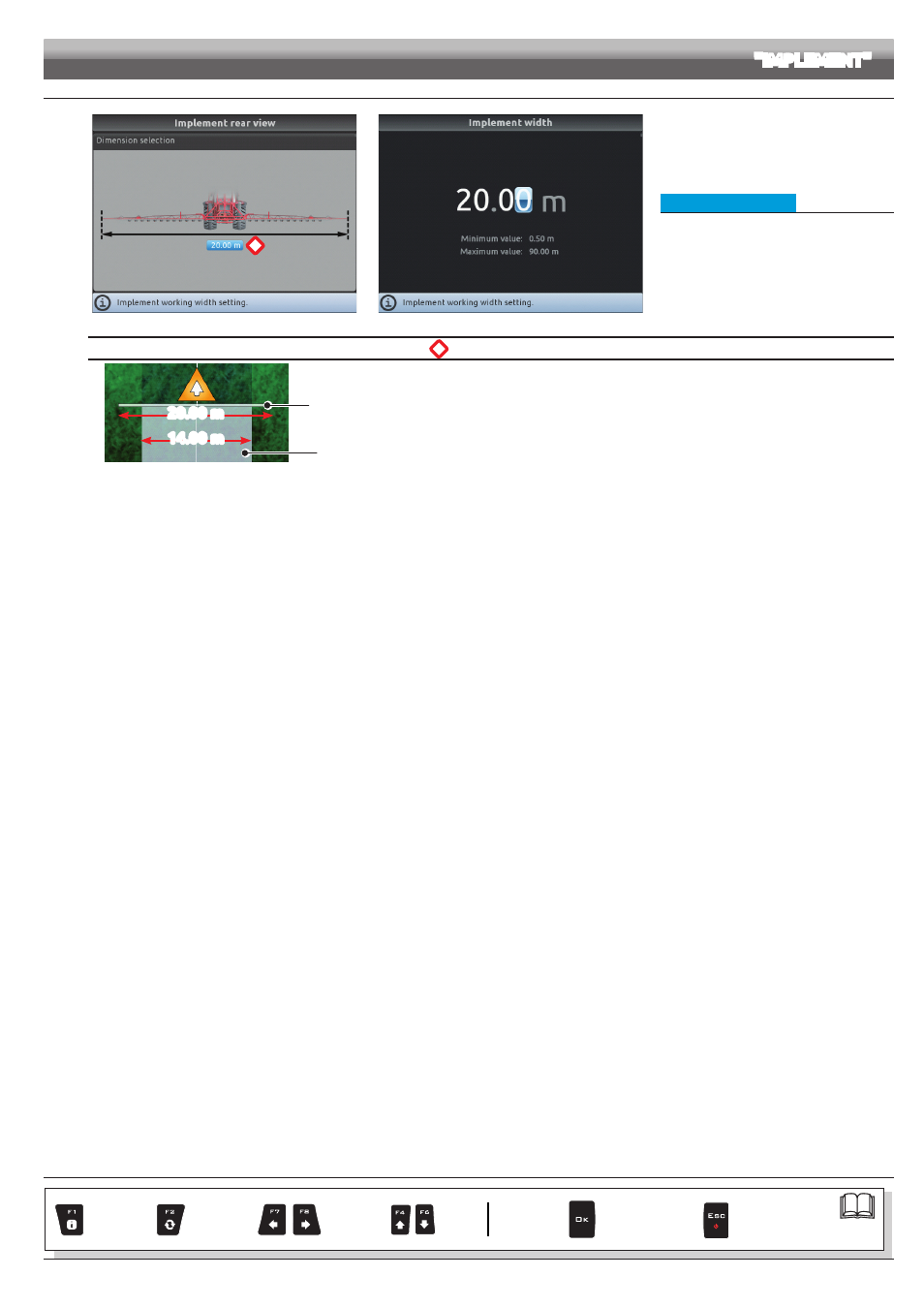

Fig. 148 Fig. 149
• Implement rear view
- Confirm by pressing OK to enter setup.
- Enter the value.
* Implement width
Implement width
Boom length
(sprayed area)
14.00 m
20.00 m
Fig. 150
The width set for the implement is shown on the display in the guidance screen: usually it is
equal to the boom width, and thus to the covered area diagram.
If you wish to see two different widths displayed on the guidance screen,
as in the example of Fig. 150, set the
Implement width to a different value than the
boom width (par 10.1.1).
END 10.1.13 Implement geometry settings (SYSTEM WITH REAR / FRONT 3-POINT HITCH)
> > > 10.1.13 Implement geometry settings (SYSTEM WITH REAR / FRONT 3-POINT HITCH)
ADVANCED SETUP "IMPLEMENT"
