Full Screen Mode: Select a channel and click on number “1” button. Then, the corresponding channel will display in Full
Screen.
Quad Screen Mode: Click on No.4 button and a quad screen will display. The quad screen is in combination of 1~4, 5~8,
9~12 and 13~16. If users select Channel No. 7 and click the button, 5~8 quad screen will display. Similarly, if users select
Channel No. 16, 13~16 quad screen will display.
9-Split Screen Mode: Click on No.9 button and 9-split screen will display. The 9-split screen is in combination of 1~9 and
8~16. If users select Channel No. 9 and click the button, 1~9 split screens will display. Similarly, if users select Channel No.
10, 8~16 split screens will display.
16-Split Screen Mode: Click on No.16 button and 16-split screens will display.
25-Split Screen Mode: Click on No.25 button and 25-split screens will display.
36-Split Screen Mode: Click on No.25 button and 36-split screens will display.
64-Split Screen Mode: Click on No.64 button and 64-split screens will display.
Seq: Click ‘Seq’ and then it will show an ordered list of display which will change the channel of live display to next channels.
For example, In 4 channel display CH5 to CH8 on the display screen will change to CH9 to CH12 sequently.
(NOTE)
The selected channel is outlined in blue
11.3.3.2
Health Check

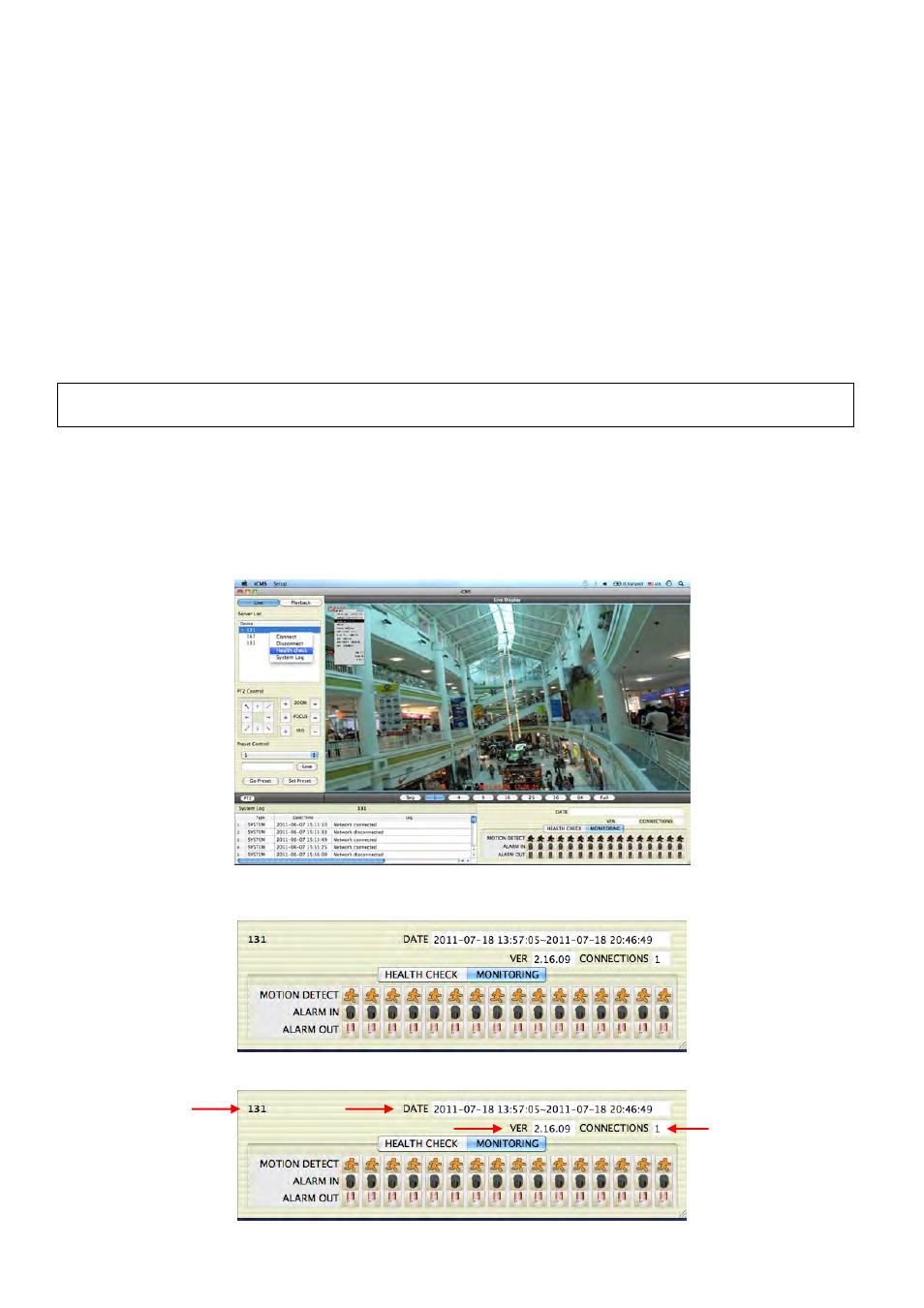

Please choose one of the registered sites in Server list on the right hand side of the ‘Live Display’ and the right click on the
mouse button will pop up the menu with ‘Health Check’.
Please choose ‘Health check’ function when users want to check the status of the DVRs.
Now users can choose either Health Check or Monitoring to see the status of the DVR at the bottom of the right corner.
Health check shows the status of how many cameras are activated, how many HDDs are available, and how many channels
are recorded.
Monitoring shows the status of the number of motion detection and how many alarm in and alarm out are activated.
