 Check  check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be
excluded from channel sequencing.
 Adjust the rotation interval of camera by clicking Dwell column. The rotation interval changes to 3>5>10>15>30>60 seconds
by each press.
 ‘4 Split Screen sequencing’ is disabled in the following modes.
- 8 channel DVR: 3x3 Mode
- 16 channel DVR: 4x4 Mode
 Use only with 16 channel DVR.
 Adjust interval for ‘X9 Split Screen sequencing’.
 Check  check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be
excluded from channel sequencing.
 Adjust the rotation interval of camera by clicking Dwell column. The rotation interval changes to 3>5>10>15>30>60 seconds
by each press.
 ‘9 Split Screen sequencing’ is disabled in 4X4 Mode.

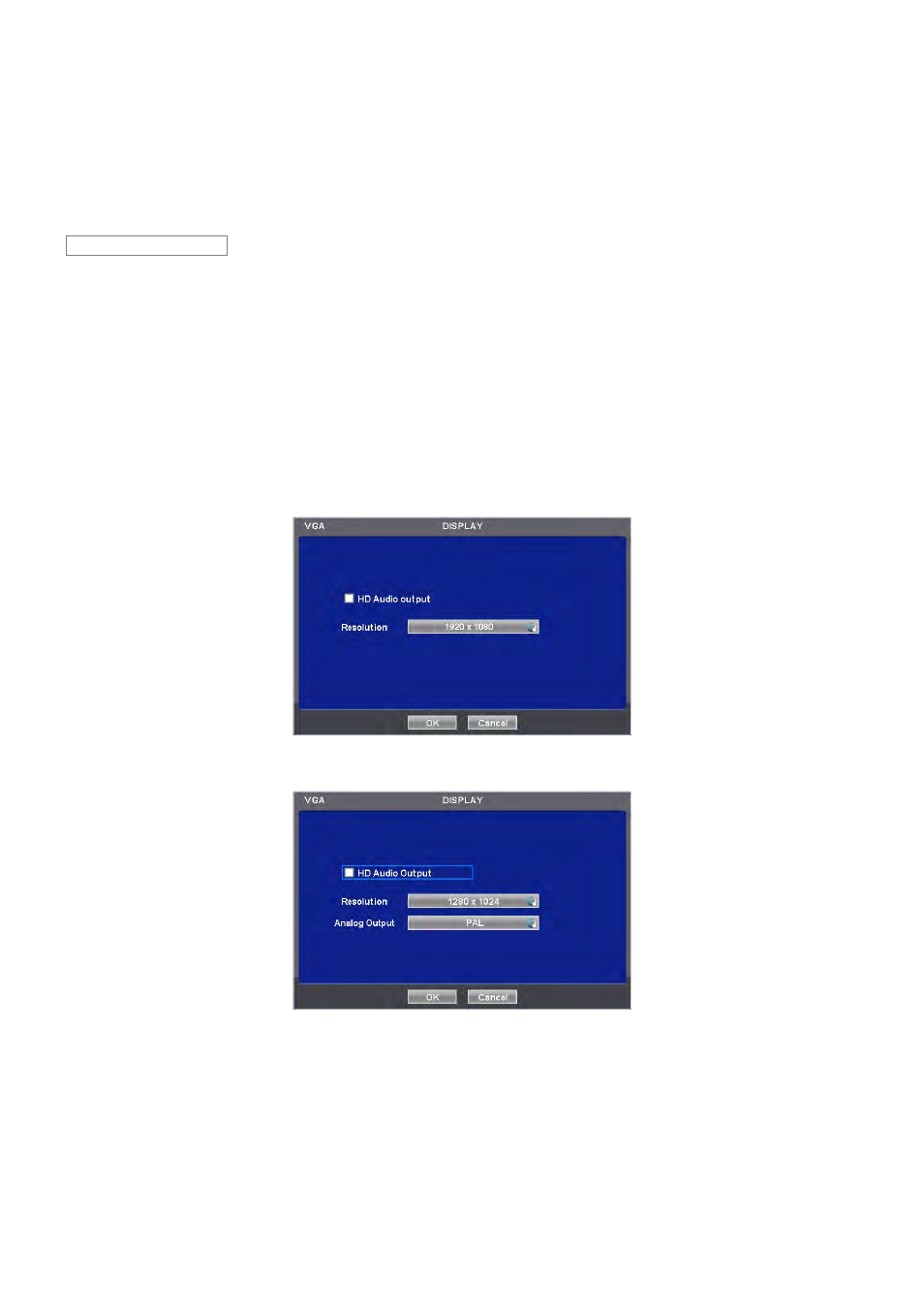

4.3.6 VGA (C, D, E, F, G, H, and I Type)
 Users are able to set its video output resolution from 1024x768 to 1920x1080
 If user wishes to hear audio via HDMI cable, check the box HD Audio Output
 HD-SDI DVR displays and records differently with previous NTSC or PAL methods.
 Analog Output will help users to select its video output between NTSC and PAL
 Once it has changed, it will ask to reboot for the new recognition of video out method
 The default value is NTSC
X9 Seq
