150
 Enter Site Name and IP/Domain.
 Enter Admin and Stream port.
 Enter ID and Password.
 Click “Add” to save the setting.
14.3.4 Connection

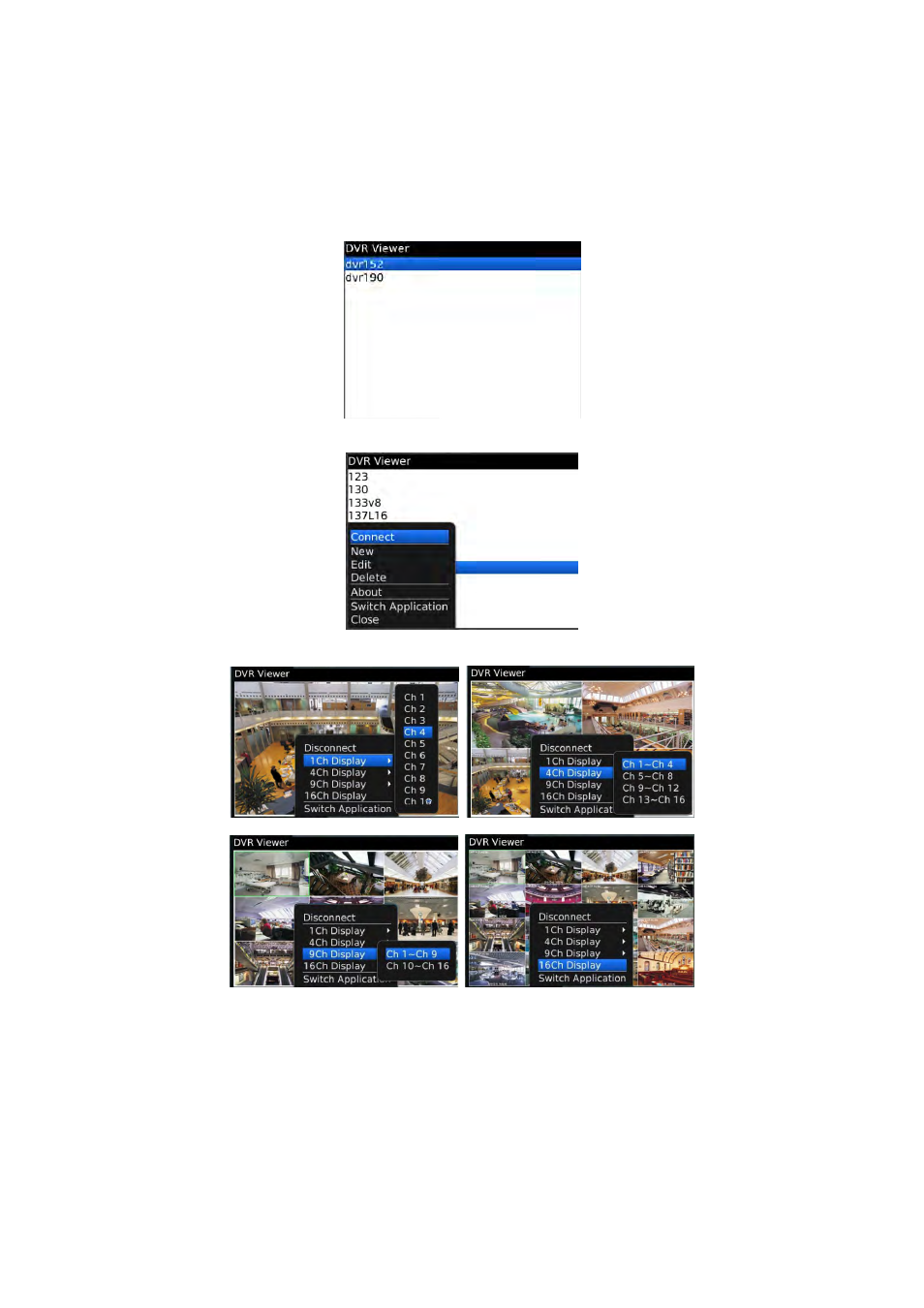

 If the site is registered appropriately, the following screen will be shown.
 Click “Menu>Connect” to connect the site.
 Users can select the display mode from 1, 4, 9 and 16 multi view.
 16 channel multi view is available for CIF resolution.
 4 channel multi view is available for H.D1 and D1 resolution.
 Only 1 channel view(full screen) is available for 720p and 1080p.
 The message as below pops up when users try to see the multi view which exceeds its resolution.
