Rugged Cams HD Megapixel - Manual (Page 40)

40

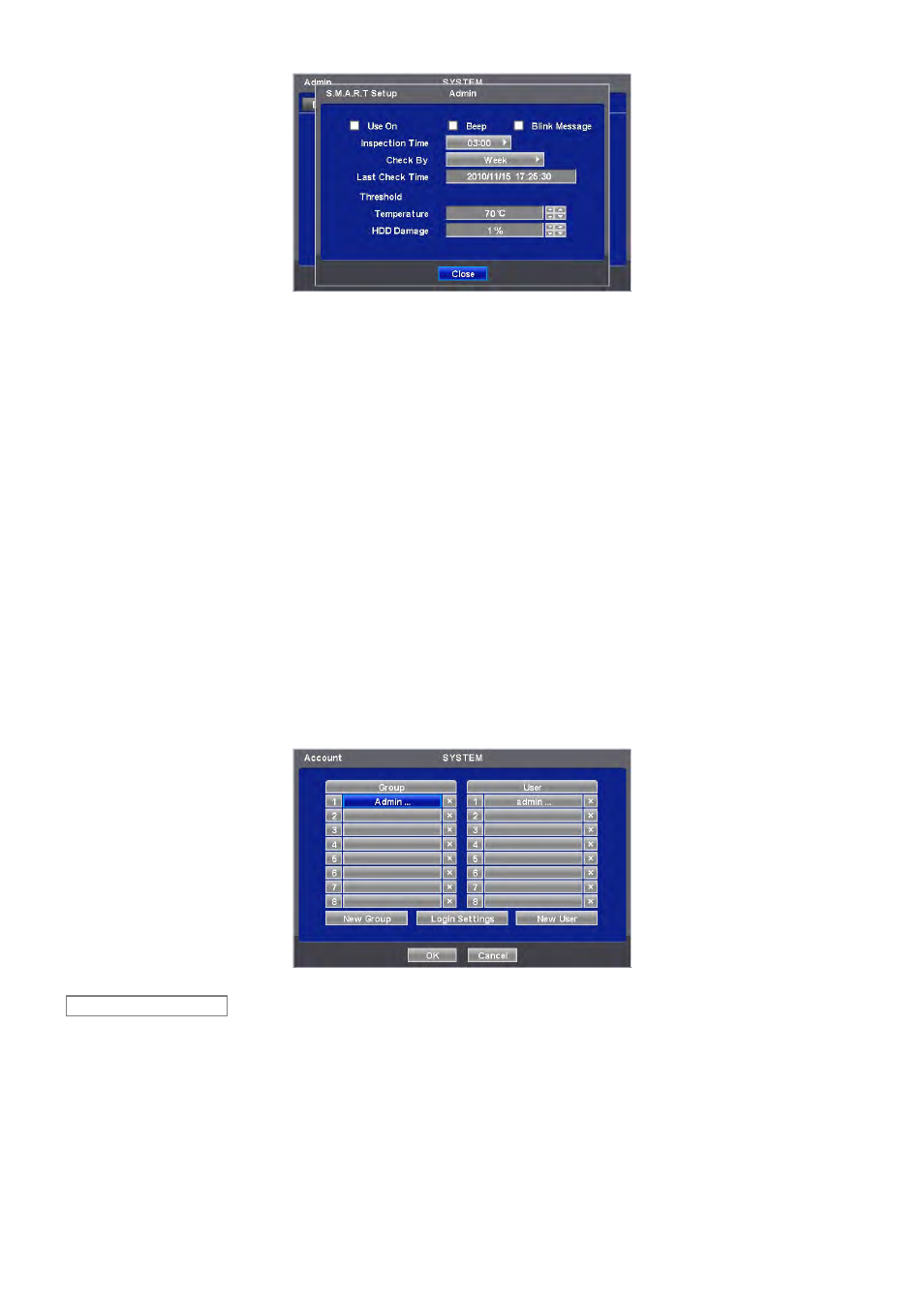

 Check the square box  next to Use On. Through S.M.A.R.T function, make alarm message, indicating HDD damage, will
show.
 Check  Beep; it will give the alarm sound, indicating HDD damage, as the SMART setup.
 Check  Blink Message, the alarm message will blink on the OSD, as the SMART setup.
 If “Use on” box is unchecked, Beep, Blink Message will be unchecked automatically. Only when “Use on” is checked, user
can set Beep, Blink Message function.
 Click ( ) Inspection Time frame to set inspection time.
 Click Check by frame to select inspection interval.
 Last Check Time: show the time of the last inspection.
 Click ( )
▲, ▼ direction buttons on the right-hand side of Temperature frame to adjust to maximum temperature for the
HDD used in DVR. In general, it is 55℃.
 Click ( ) ▲, ▼ direction buttons on the right-hand side of HDD Damage frame to set the permissible level of HDD damage
(%). HDD is a very crucial element for DVR recording, so set the permissible level within 1% to 2% to assure maximum
safety.
- While pressing (+) or (-) button on the rightmost side of Temperature or HDD Damage item, a target value increases or
decreases by 10 units.
 Choose ‘OK’ to confirm the setting.
4.2.3 Account
 Please click ( ) SYSTEM>Account and the following screen will appear.
 Please click ( ) New Group and the following screen will appear.
New Group
