Rugged Cams HD Megapixel - Manual (Page 131)

131
13. CMS WEB CLIENT
13.1 Setup and Login
 MS Explorer web browser is required for installation and using this program.
 Open a browser and type the IP address of DVR.
 It is required to install ActiveX in the first connection.
 Basically, Explorer limits automatic ActiveX installation.

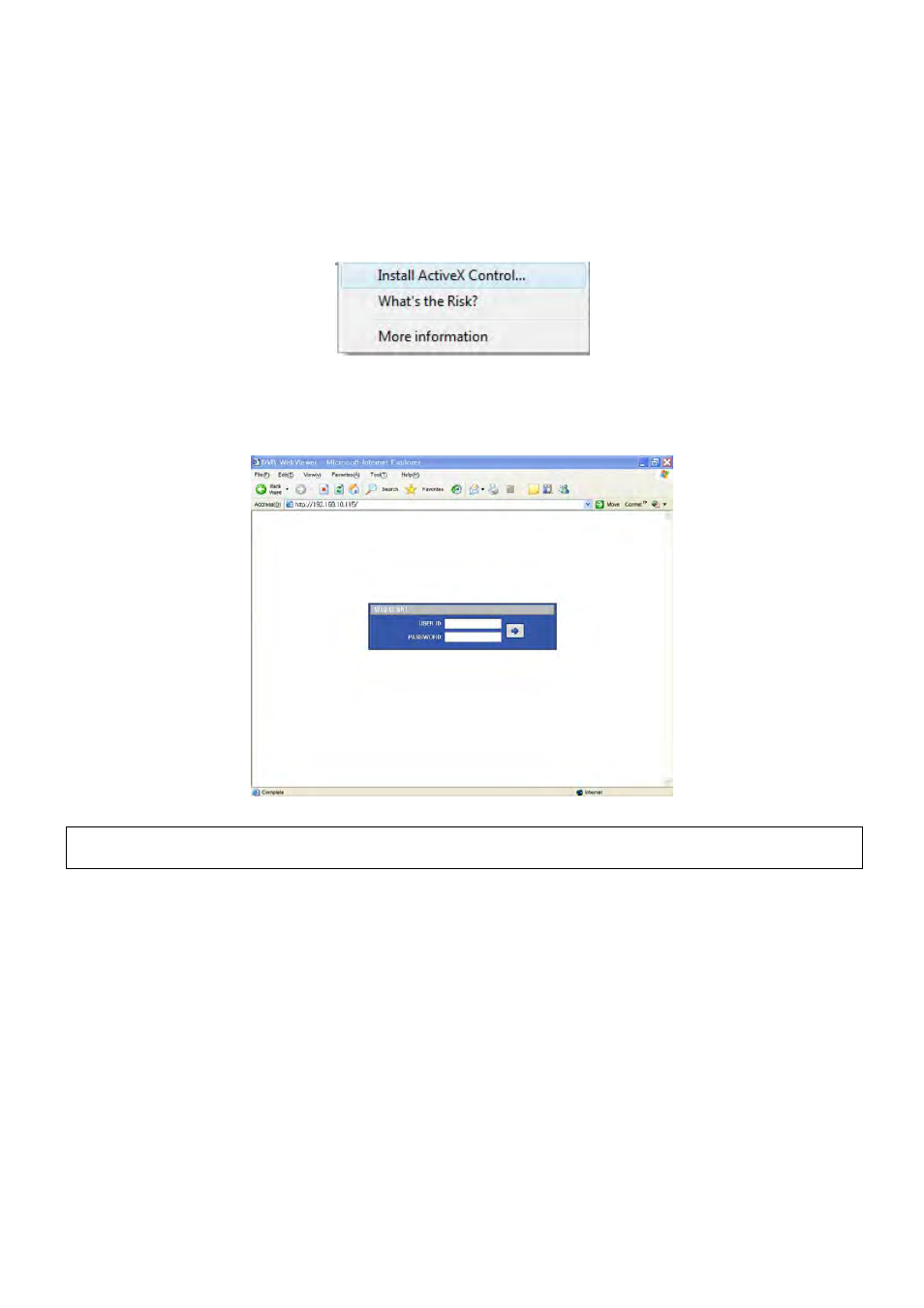

 Click the message above in the screen, then following menu box will appear.
 Click “Install ActiveX Control…” and start installation.
 Installation box will appears and click “Install” for next step.
 After complete installation, Login panel will appear.
 Enter User ID and password of registered DVR then click
(NOTE)
Before network connection, be sure that HDD is installed. Otherwise, the DVR will not be connected over network.
