197

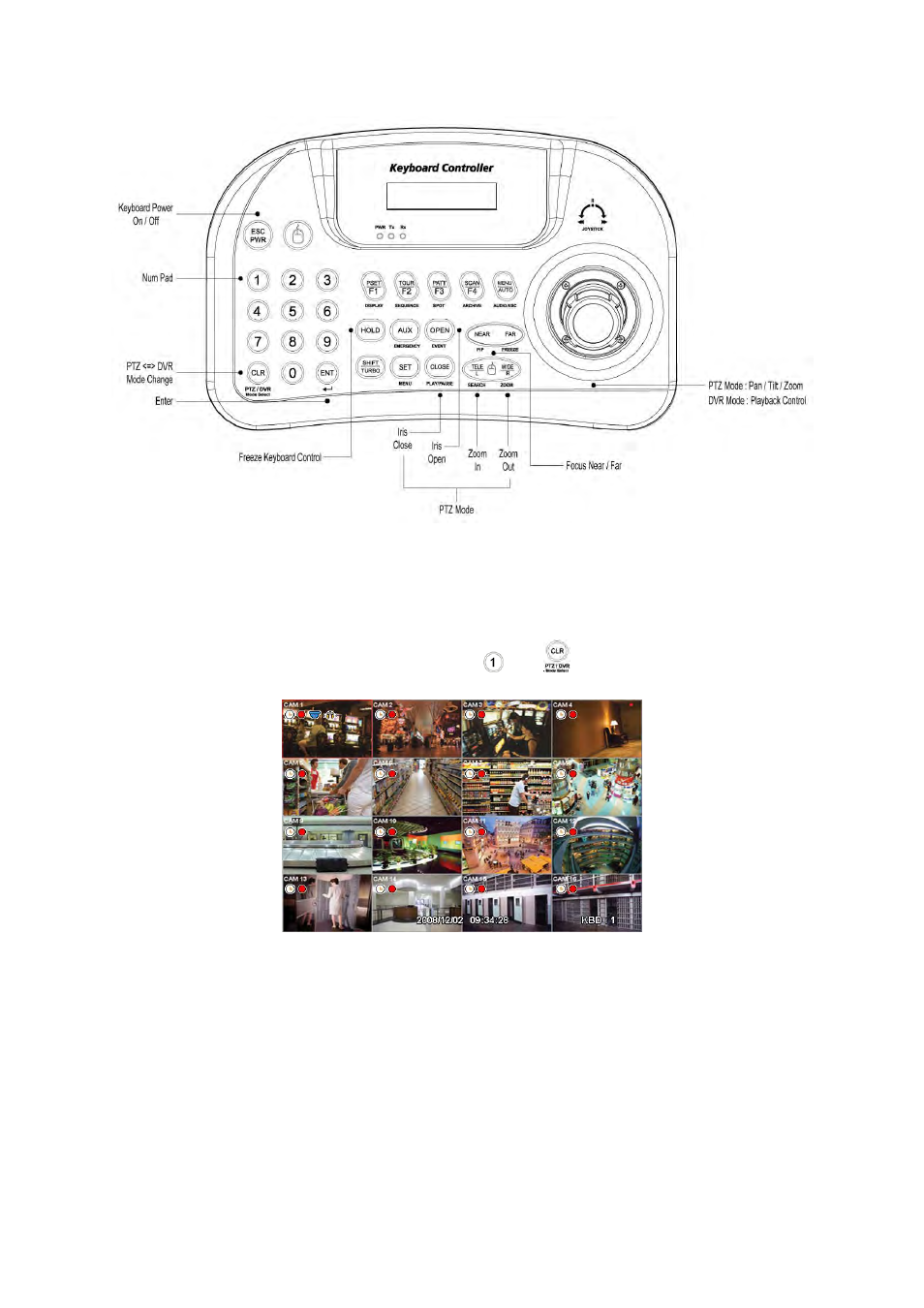

25.3 Keyboard Configuration
25.4 Operation
25.4.1 DVR/PTZ Mode conversion
 Press System ID number (For example, ID: 001 press Num Pad ) with button.
 OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture;
 Then, user should be able to operate the DVR functions by the keyboard controller.
25.4.2 DVR Control Mode
 In DVR control mode, all buttons are operated according to texts written underneath of each button. The functions are same
as Front buttons of DVR as follows:
- DISPLAY: change channel split screens in sequence of 1>4>9>16>1.
- SEQ: turn on/off Sequence function.
- SPOT: change the channel of a screen connected to the Spot monitor.
- ARCHIVE: pop up Archive window.
- AUDIO/ESC: shut down window when Setup window appears. Otherwise, it activates the AUDIO function. Any setup
changes during shutdown are not saved.(same as Cancel)
- EMERGENCY: turn on/off Emergency record function.
- EVENT: pop up a window to see System Log.
- PIP: turn on/off PIP screen in case of 1 channel screen. If PIP function is on, user number key(s) + ENT key to change
