5 Trial Operation (Checking Servomotor Operation)
5-10
5.5
JOG Operation Using SigmaWin+
This section describes the procedure for executing a JOG operation using Sig-
maWin+.
In the following example, test-run procedures are explained using the JOG operation
window of Test Run on the main menu of SigmaWin+.

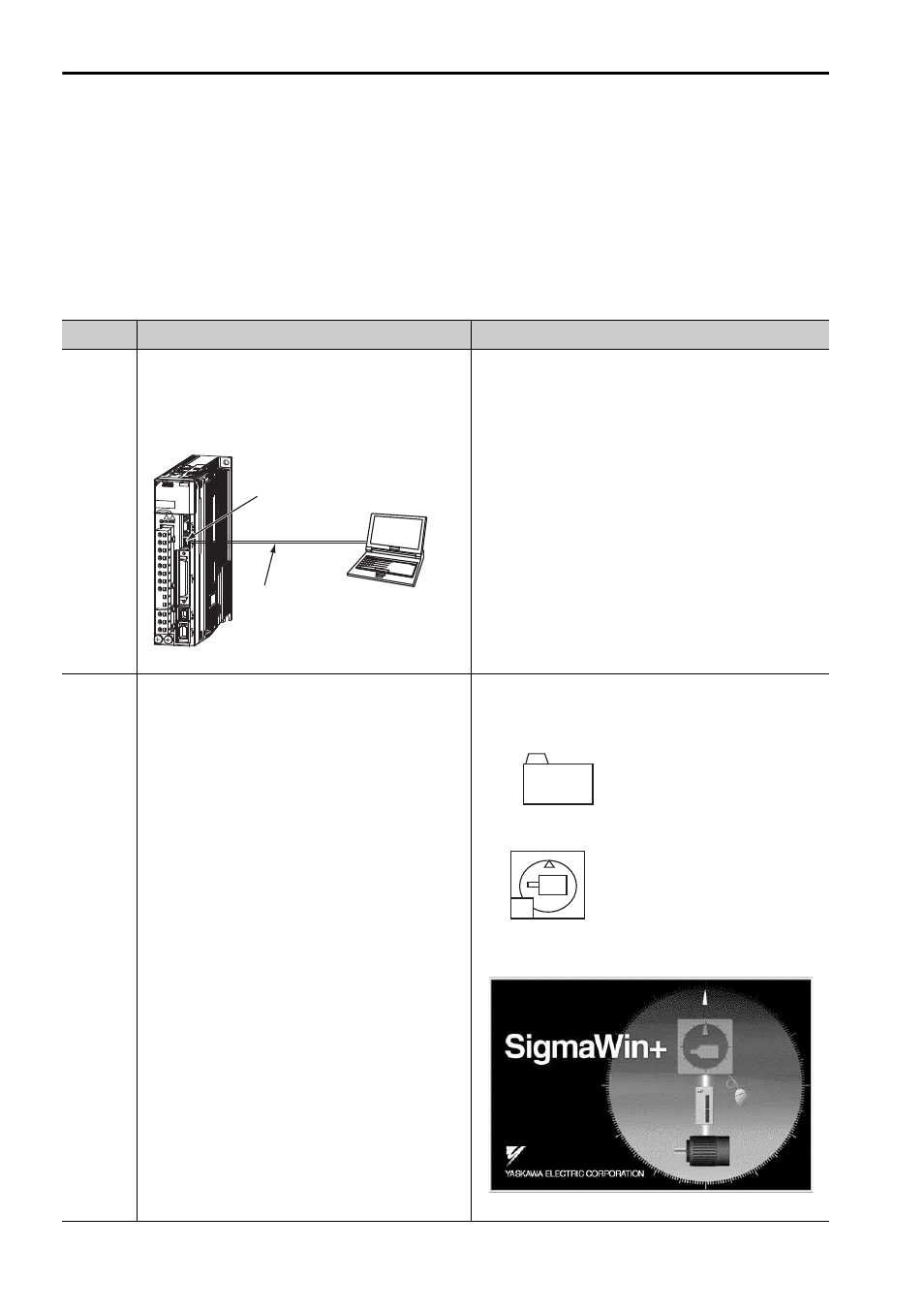

Step Operation Display
1
• Connect a computer.
Use a connection cable to connect a SERVO-
PACK to a computer which has SigmaWin+
installed.
2
• Start SigmaWin+ and open the main win-
dow.
(1) Turn ON the SERVOPACK.
(2) Turn ON the computer.
(3) Double click the YE_Applications folder
on the desktop.
(4) Double click the SigmaWin+ icon to dis-
play the SigmaWin+ startup screen.
Startup Screen
PC
SERVOPACK
JZSP-CVS06-02-E
CN7
Connection cable for
personal computer
YE_Applications
ψ
SigmaWin+
English Edition
