Section 9 TROUBLESHOOTING
9-18
12 Replace the Duplex Unit in its original position in the copier.
13 Close the front, upper right, and left covers to the copier, in
that order.
14 If necessary, reconnect the Side Feeder to the copier.
15 Reattach the copy eject tray.
If necessary, reattach the Document Finisher to the copier.
Then, push the release lever back into in its original position
and close the front cover to the Document Finisher.

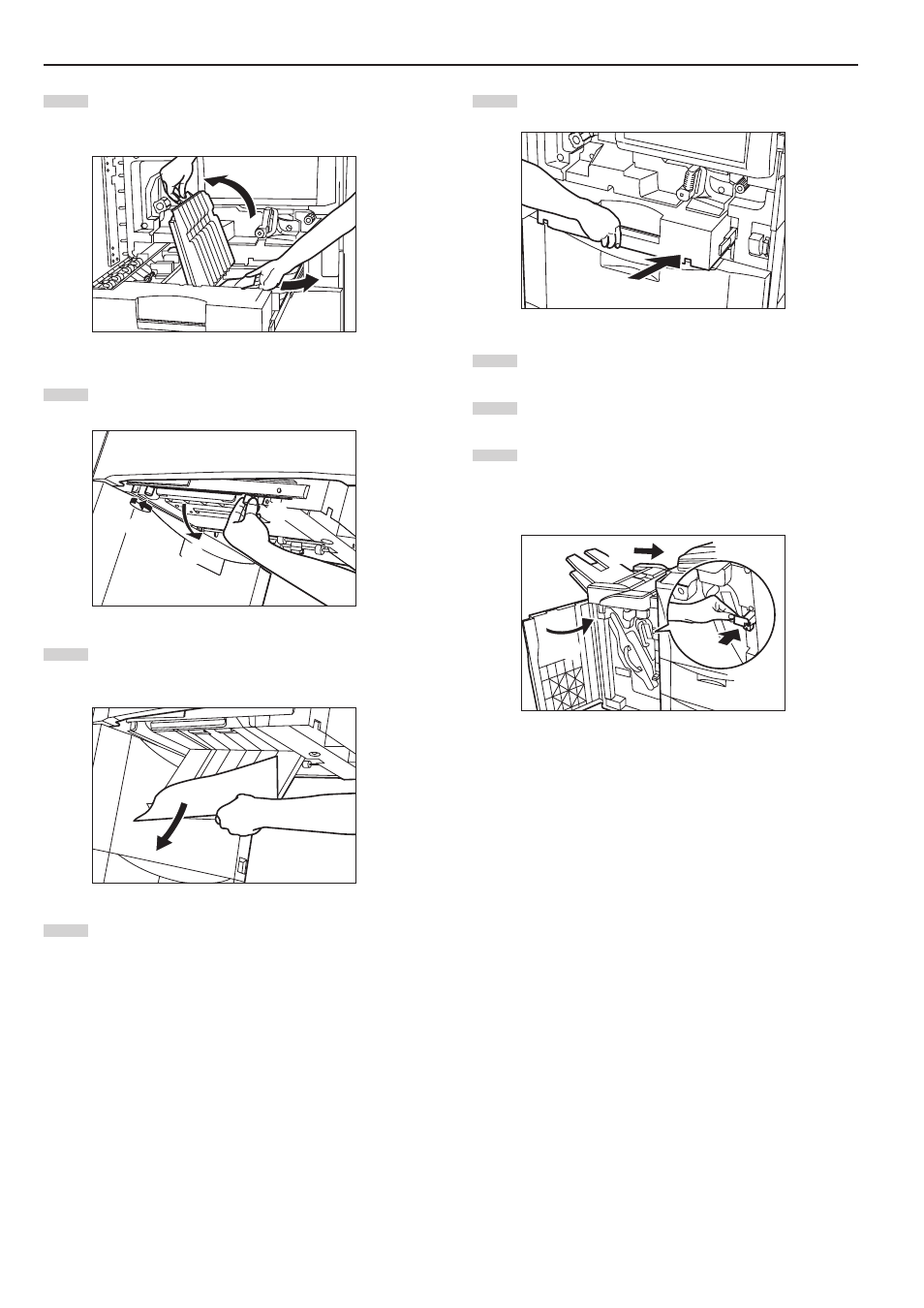

8 Open the upper cover to the Duplex Unit and remove any
jammed paper without tearing it.
Close the upper cover and then proceed to the next step.
9 Undo the 2 green screws on the bottom of the Duplex Unit.
10 Lower the Duplex Unit guide plate open and remove any
jammed paper without tearing it.
11 Close the guide plate and reattach the 2 green screws.
