Section 5 OTHER CONVENIENT FUNCTIONS
5-20

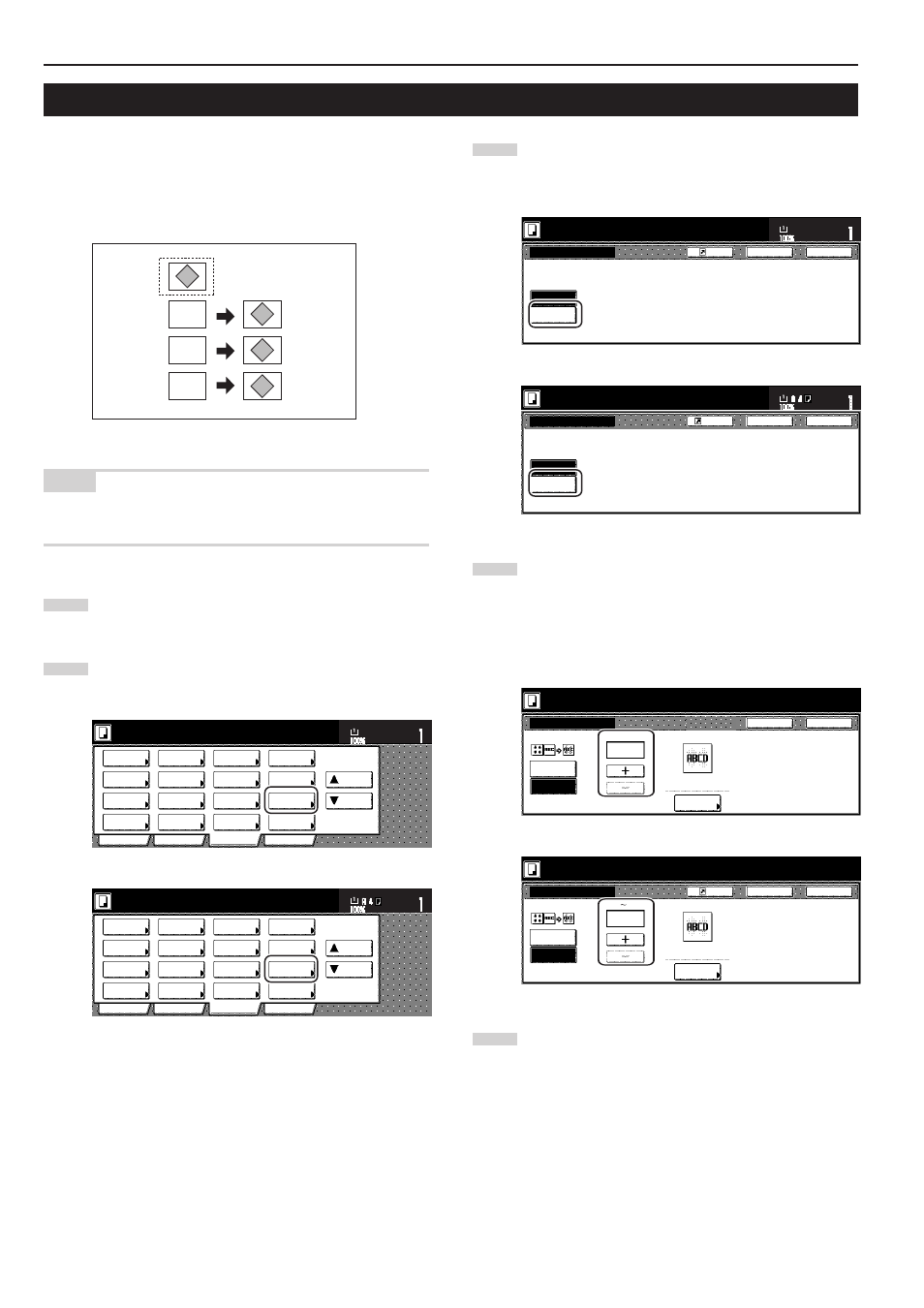

9. Overlaying one image over another [Form overlay mode]
This mode can be used to scan the first original (the “form”) into
memory and have its image overlaid onto copies made from
subsequent originals. It is also possible to register and store in
memory, in advance, the images that you want to use as original
forms.
NOTE
Refer to “(2) Form registration” on page 6-1 for the procedure to
register images as forms.
1 Touch the “Function” tab. The content of the “Function” tab
will be displayed.
2 Touch the “Forms Overlay”[“Form overlay”] key. The “Forms
Overlay”[“Form overlay”] screen will be displayed.
Inch specifications
2 sided/
Separation Select
paper
Combine
Reduce
/Enlarge
Margin/
Centering Forms
Overlay
Page #
Function Basic User choice Program
Cover
Mode
Booklet Sort/
Finished Border
Erase
Exposure
mode
Orig.image
quality
Ready to copy.
Select
orig. size
Auto
Selection Batch
scanning
Up
Down
Set Paper size
11x8 1 / 2 "
Metric specifications
Select
paper 2-sided/
Split Merge copy
Reduce/
Enlarge
Margin/
Imag. shift Page
numbering
Function Basic User choice Program
Cover
Mode Booklet Erase
Mode
Exposure
mode
quality
Sort/
Finished
Ready to copy.
Select
size orig.
Auto
selection Large # of
originals
Form
overlay
Up
Down
Set Paper size
3 Touch the “On” key.
The screen to set the shading level of the form image will be
displayed.
Inch specifications
On
Off
Forms Overlay Register
Use the first scanned image as a form
for copy after second original image.
Ready to copy. Set Paper size
Back Close
11x8 1 / 2 "
Metric specifications
On
Form overlay
1 s t s c a n n e d i m a g e c a n b e u s e d a s a fo r m
fo r c o py a f t e r s e c o n d o r i g i n a l i m a g e. Of
Back Close
Ready to copy.
Register
Set Paper size
4 Touch the “+” key or the “-” key to select the level of shading
that you want to use for the original form.
The desired shading level can be set to any 10% increment
between 10% and 100%.
* A sample of the effect that the selected shading level will
produce will be displayed to the right of the entry field.
Inch specifications
Place from first then press start.
Forms Overlay
%
(10~100)
Scan form once On
Off
Register Back Close
Exposure 50
Form
Selected
Metric specifications
Set form.
Press Start Key.
Form overlay
Off
50 %
On
Register Back Close
Scan form once
Form
selection
Exposure
(10 100)
5 If you want to use a previously registered image as the form,
touch the “Form Selected” [“Form selection”] key and go to
the next step.
If you want to scan in a new image, go directly to step 9.
A
B
C
B
C
A
