1.4.7 Downloading the Project to the Module
For the gateway to use the settings you configured, you must download (copy)
the updated Project file from your PC to the gateway.
To Download the Project File
1 In the tree view in ProSoft Configuration Builder, click once to select the
gateway.

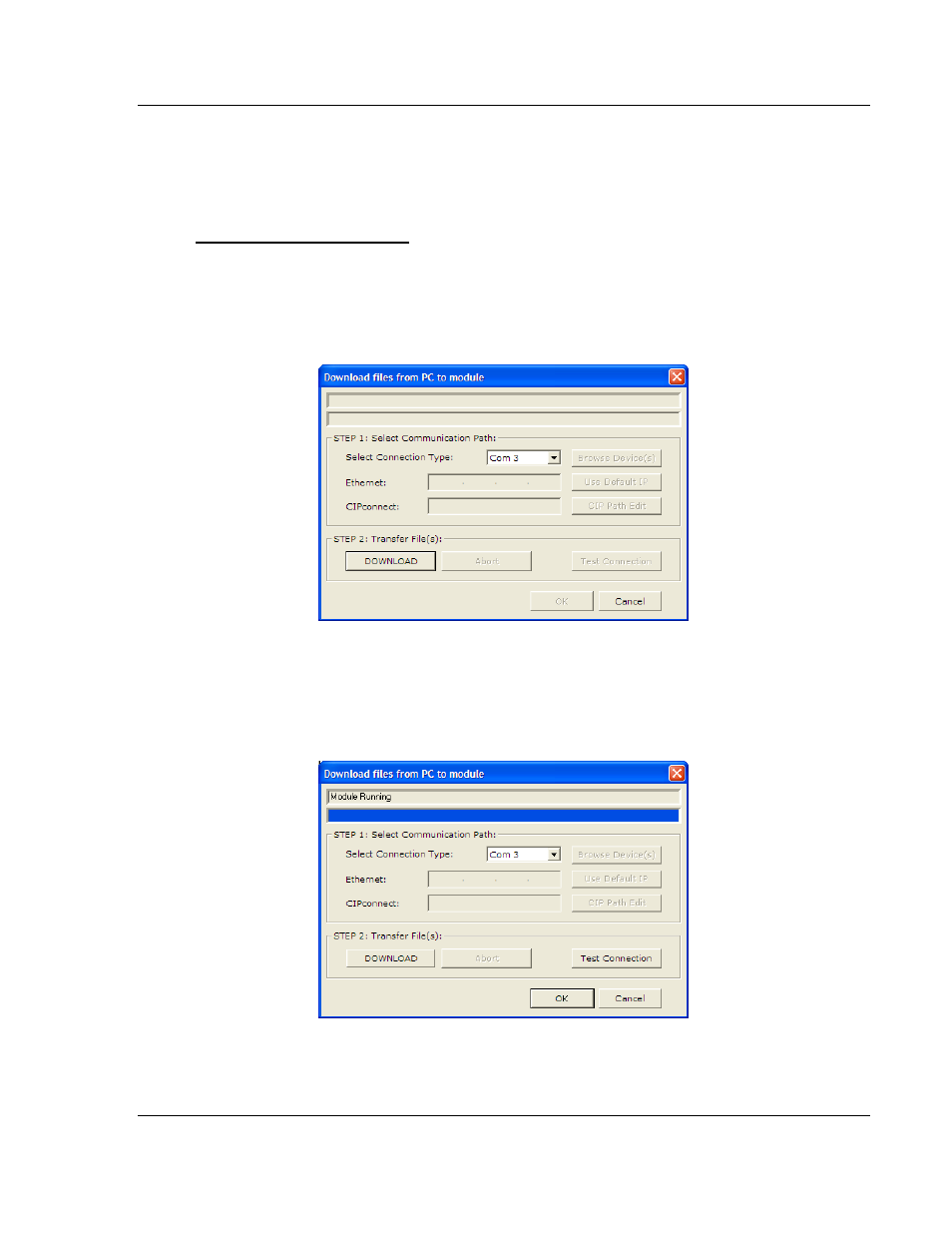

2 Open the P ROJECT menu, and then choose M ODULE /D OWNLOAD . The
program will scan your PC for a valid com port (this may take a few seconds).
When PCB has found a valid COM port, the Download dialog box will open.
3 Choose the COM port to use from the dropdown list, and then click the
D OWNLOAD button.
The gateway will perform a platform check to read and load its new settings.
When the platform check is complete, the status bar in the Download dialog
box will display the message Module Running.
