Gateway Communication Ports IEC-101 Slave ♦ ProLinx Communication Gateway
Protocol Manual IEC 60870-5-101 v3 Slave (Firmware version 3.xx)
Page 52 of 159 ProSoft Technology, Inc.
August 6, 2010
Note: When using RS-232 with radio modem applications, some radios or modems require
hardware handshaking (control and monitoring of modem signal lines). Enable this in the gateway
configuration by setting the UseCTS parameter to 1.

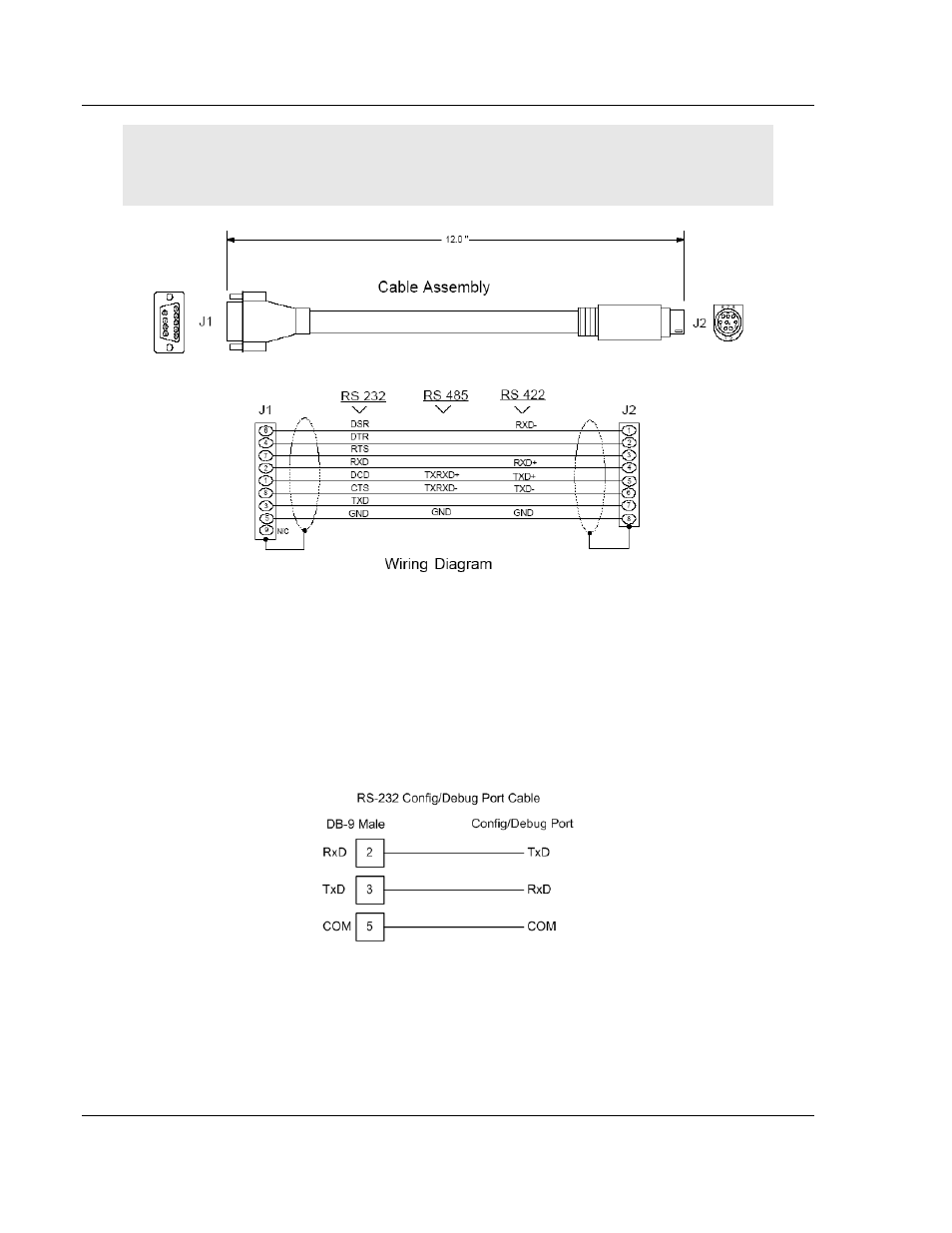

3.2 RS-232 Configuration/Debug Port
This port is physically an eight-pin, Mini-DIN8F connection. A Mini-DIN8M to
DB9M adapter cable is included with the gateway. This port permits a PC-based
terminal emulation program to view configuration and status data in the gateway
and to control the gateway. Here are the cable pinouts for RS-232
communication on this port.
