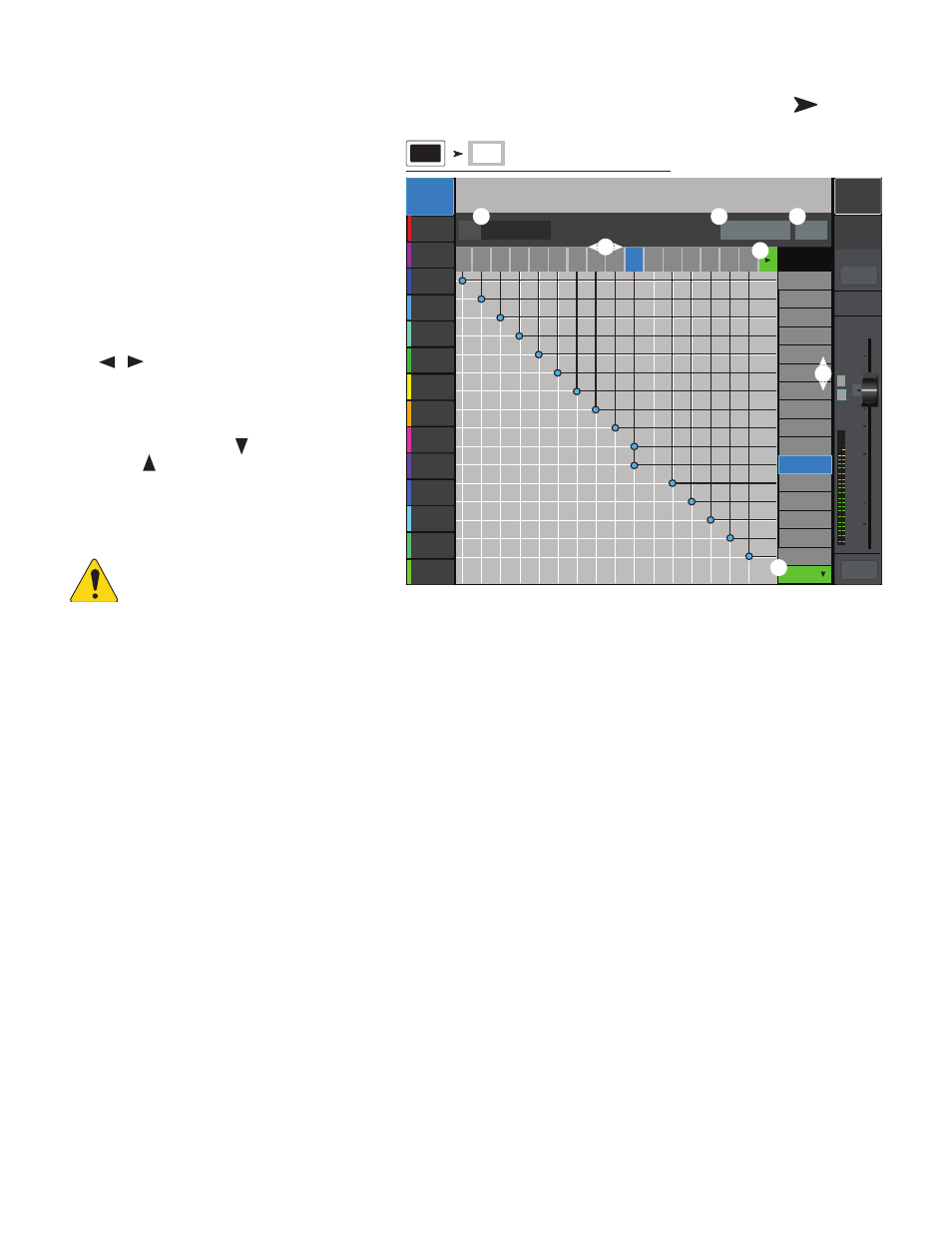

Patch Matrix (TouchMix-30 Pro only)
Manages connections between physical inputs and on-
screen channels.
1. Preset – Displays the name of the current
preset. ”Default routing” is the Reset or factory
default Preset.
2. Save / Recall button – Navigates to the
Patch Matrix Preset screen where patch matrix
settings may be stored or recalled. Use Home to
return to the Patch Matrix screen.
3. Reset button – Restores the default settings.
4. Input select buttons – Used to select a
physical input for rerouting.
5. / – Moves between Input groups 1–16
and 17–30.
6. Channel select buttons – Selects the Channel
to be connected to the selected Input.
7. Channels 17-30 and Channels
1–16
– Moves between channel groups
1–16 and 17–30.
Using the Patch Matrix
OIUT!: The Patch Matrix should be
used with care. It is easy to set up
confusing routings that make
troubleshooting difficult.
The image illustrates a “mult” (short for multiple connection). Perhaps the mixer operator needs to apply different channel processing to the
Acoustic Guitar for Mains and Monitors.
1. Open the Patch Matrix.
2. Select the input the Acoustic Guitar is connected to (Input 10).
3. Mult the input to the second channel by touching 11 Ac Guitar. Input 10 is now feeding both channels.
4. Any input can be routed to any channel or any combination of channels.
5. When an input is re-patched, the channel name changes to include the name of the physical input. In the above example, channel 11
would become “[In 10] Ac Guitar”.
Press Menu
Touch Patch
Matrix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Kick
Snare
Hat
Tom
Tom
Tom
CH
CH
E Bass
Ac Guitar
Ac Guitar
Sax
Trombone
Kazoo
Cajone hole
Cajone Slap
Channels 17-30
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Patch Matrix Default
Scene: Main Mix
L/R
Input
1
Input
2
Input
3
Input
4
Input
5
Input
6
Input
7
Input
8
Input
9
Input
10
Input
11
Input
12
Input
13
Input
14
Input
15
Input
16
Preset Default Routing
To configure routing, select an Analog Input from the top row,
then select Destination Channels from the right column. Save / Recall Reset
Patch Matrix
L
F
∞
10
5
u
5
10
20 0
40
10
Main
Cue
Main
L/R
Mute
Menu
2 1
7
6
4
3
5
Patch
Matrix
