60
1001108-01-F

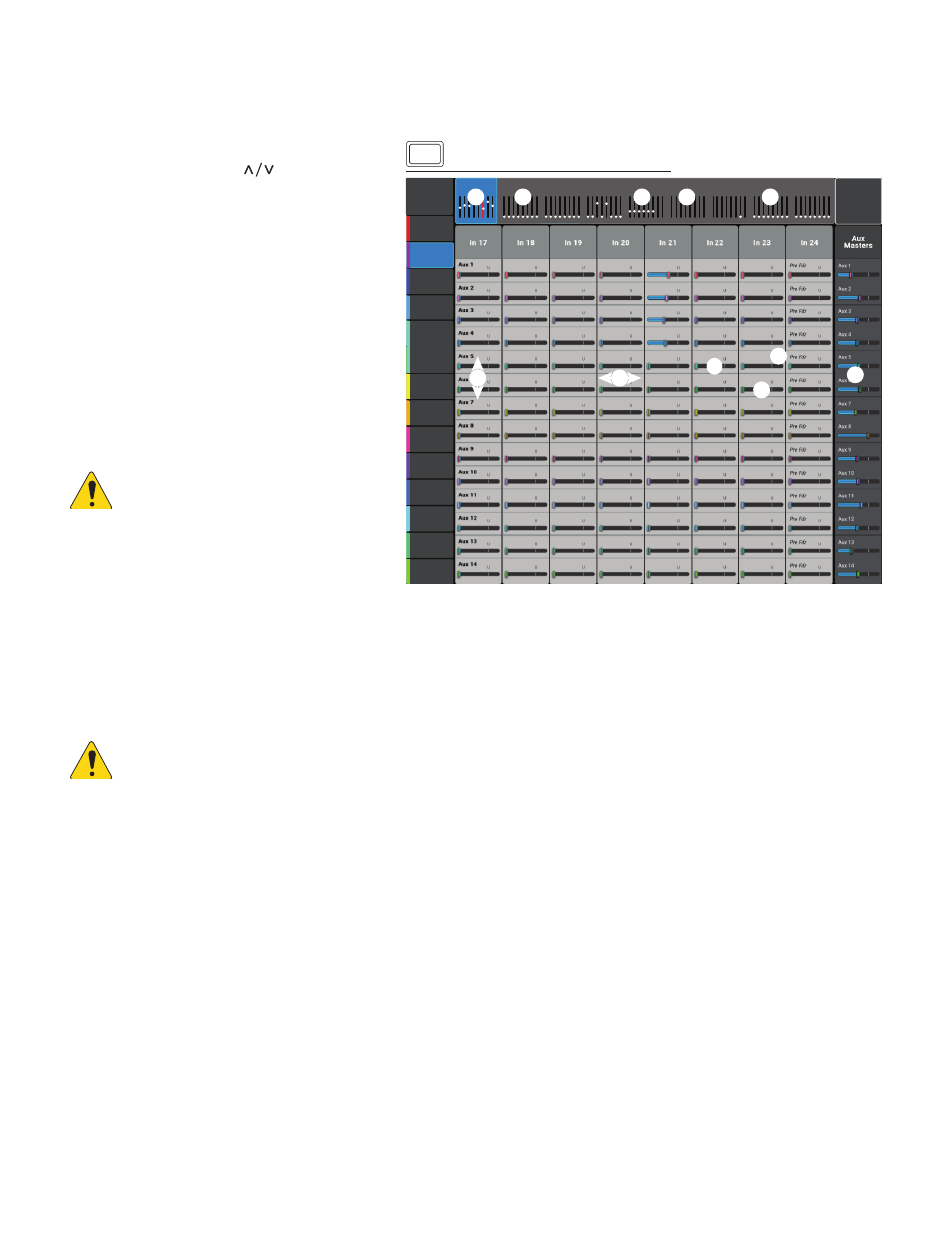

Aux Overview
Provides an overview of all the Aux mixes.
The Aux Send and Output levels may be adjusted on
screen or, for greater precision, by touching turning
the Master Control or using the
buttons on your
tablet device.
(TouchMix-30 Pro only) When the Aux Overview is
displayed, the Nav Strip display “grays out” the Aux
Out 9-14 and DCA Groups miniature fader banks. This
is because neither of these banks contains a signal
that’s available on any auxiliary mix. See the Aux Mix
on Faders topic for more information on Auxiliary and
Matrix mixes.
1. Input , FX Master and Sub Group
banks are selectable on the Nav Strip.
2. Each column (In 1, In 2) represents a channel,
and displays the channel’s Aux Sends and pan
controls.
OIUT!: If an input has been given a
name, the name will be displayed as the
column heading. Touch the Select (name)
button to navigate to the input
channel’s controls.
3. Each row represents an Aux mix , the name
of the mix is displayed in the first column and with the Master fader.
4. Stereo Aux Master Slider – A single slider is provided for a stereo linked Aux pair.
5. Pan Control Slider – Pans the input between the left and right sides of a stereo aux mix.
6. Pre Fdr/ Post Fdr / Pre Dyn / Pre All – Indicates the Aux Pick-off point that was set on the Aux Channel Setup tab.
7. Aux Master Fader – Adjusts the overall level of an Aux mix.
OIUT!: User defined names display in the left column.
Press Aux
Default
Scene:
Aux
Main Mix
L/R
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5/6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
2
6
4
1
7
5
3
1 1 1 1
Inputs 9-16 Inputs 1-8 Inputs 17-24 FX Masters Stereo In/2-Trk Aux Out 1-8 Sub Groups Aux Out 9-14 DCA Groups
