QSC Audio TouchMix-30 Pro 32-Channel Compact Digital Mixer with Touchscreen - Manual (Page 97)

88
1001108-01-F

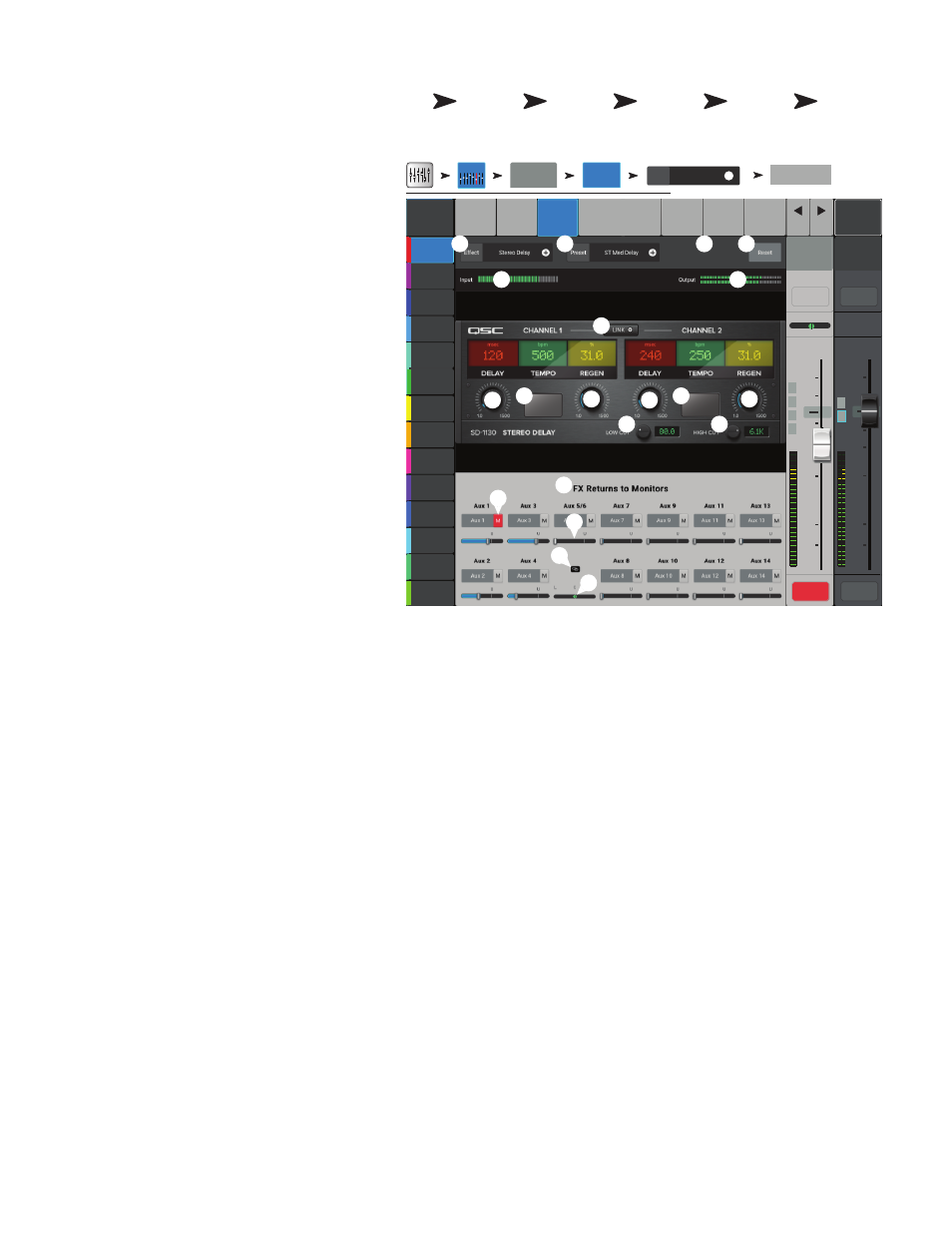

FX Processor – Mono and Stereo Delay
These effects delay the audio signal to create echo and
similar effects. Controls for the stereo delay may be
linked or operated independently.
Input channels and Sub Groups are able to send to
the effect.
1. Effect – Touch to select a different Effect Type.
2. Preset – Displays the name of the current
preset. Touch to access the preset library.
3.
4. Reset – Returns processor and Aux Send
controls to their default settings.
5. Input – Displays the incoming audio level
before the Effect.
6. Output – Displays the post-effect audio
level.
7. Link Button – (Stereo Delay only)
– Links all controls of both channels. Channel
two is set to the same level as Channel one.
8. Delay Knob – Sets the delay time in
milliseconds.
9. Tap Tempo Button – Sets the tempo
of the regenerations by tapping. Touch the Tap
Tempo button, then tap the Master Control knob
at a steady rate.
10. Regen Knob – Adjusts the amount of
delayed signal that is sent back to the input. At 0% only the first echo will be heard. At 99% the echo will repeat indefinitely at the
same level.
11. Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency setting. Range is 20 Hz to 2 kHz.
12. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency setting. Range is 200 Hz to 20 kHz.
13. FX Returns to Monitors – Sliders adjust the level of the effect heard in the performers’ monitors.
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab Touch Effect
Pull-Down
Touch Stereo
or Mono
Delay
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Overview Effect Auxes Setup EQ Presets Default
Scene: Main Mix
L/R
Prev Next
L
G
48
L
F
LR
1 2
3 4
5 6
7 8
∞ ∞
Cue
L C R
Mic
1
10
5
u
5
10
20 0
40
10 10
5
u
5
10
20 0
40
10
In 1 Main
Cue
Main
L/R
Mute Mute
Tap
Tempo
Tap
Tempo
Inputs 1-8
FX 1 Effect
FX Masters Stereo or Mono
Delay Effect None
+
2 4
5
1
10 9
7
8
11
6
12
3
9
8 10
13
a
b
c
d
