FX Processor
FX Processor – Basic Chorus
The Chorus FX Varies the pitch of a signal at a steady
rate to “thicken” a sound.
You can access the Effects from the Inputs and Sub
Group banks.

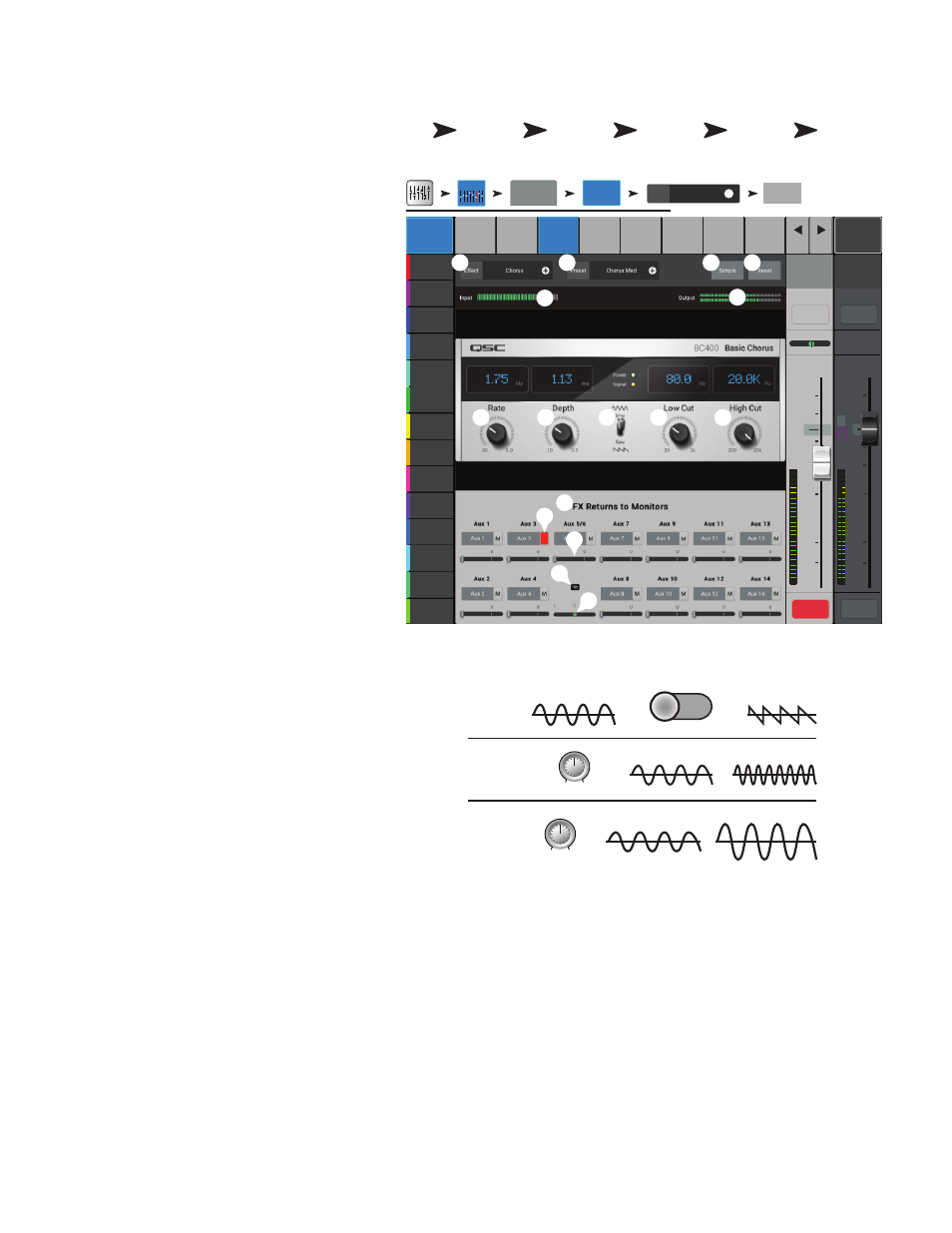

1. Effect – Touch to select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the library of Presets.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX.
Not present on Mono and
Stereo Delay effects.
4. Reset button – Returns processor and
Aux Send controls to their default settings.
5. Input meter – Displays the incoming audio
level before the Effect.
6. Output meter – Display the audio level
after the Effect.
7. LFO Rate knob – Determines the rate at
which the pitch will be varied.
8. LFO Depth knob – Controls the amount of
modulation applied to the audio signal.
9. LFO Type switch – Selects how the pitch
will be varied.
10. Lo Cut knob – Attenuates, or “cuts”
frequencies below this frequency setting. Range is 20 Hz to 2 kHz.
11. Hi Cut knob – Attenuates, or “cuts” frequencies above
this frequency setting. Range is 200 Hz to 20 kHz.
12. FX Returns to Monitors
a. M – Indicates the Aux Send for the Effect is muted from the
Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output,
typically the performer’s monitor.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
