32
1001108-01-F

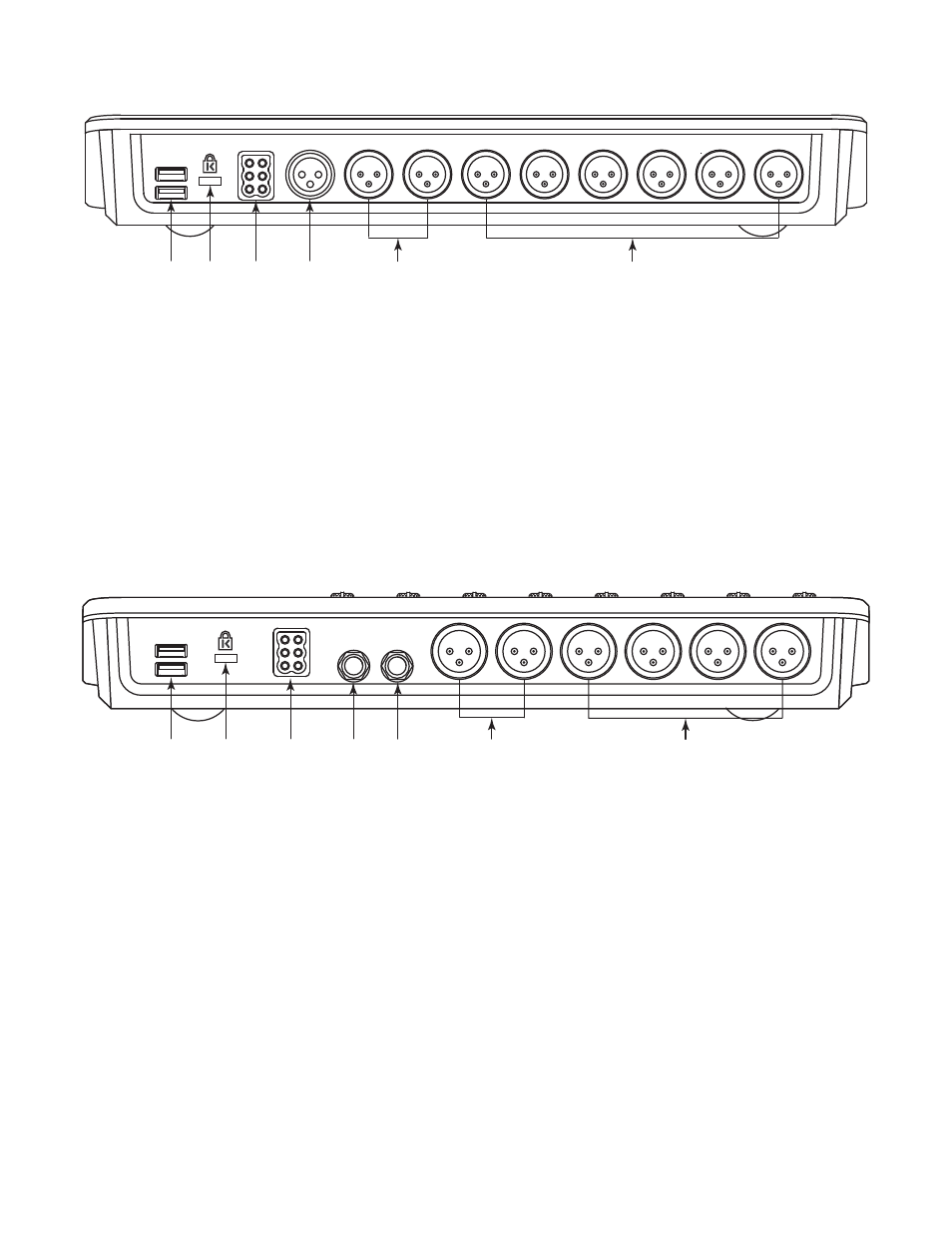

Rear Panel (TouchMix-16)
1. USB 3.0, Type A – For attaching USB storage devices 1 , MIDI 2 foot switch, and Wi-Fi adapter.
2. K & Lock® Security Slot – Compatible with the MicroSaver Security Cable
3. Power Supply – Use the power supply delivered with the mixer, do not substitute.
4. Talkback microphone – Balanced female XLR
5. Main Right and Left output – Balanced male XLRs
6. Auxiliary outputs 1 through 6 – Balanced male XLRs
Rear Panel (TouchMix-8)
1. USB 3.0, Type A – For attaching USB storage devices 1 , MIDI 2 foot switch, and Wi-Fi adapter.
2. K & Lock® Security Slot – Compatible with the MicroSaver Security Cable
3. Power Supply – Use the power supply delivered with the mixer, do not substitute.
4. Phones – Stereo 1/4” TRS. Line or headphone output is directed to this output when a channel Cue is activated.
5. Aux 3/4 – Stereo 1/4” TRS. Line or in-ear output. This output is wired in parallel with Aux 3 and 4 XLRs.
6. Main Right and Left output – Balanced male XLRs
7. Auxiliary outputs 1 through 4 – Balanced male XLRs
1 Drives must be formatted using the FAT32 file system. For best results use 7200 RPM, USB 3 hard drives or high-speed SSD. Drive performance is
critical for recording. For more information and to see a list of qualified drives, visit qsc.com. At this time, the TouchMix does not support importing or re-
importing digital audio files that have been created or edited on another device.
2 The TouchMix supports “class compliant” USB MIDI devices. QSC has verified proper operation with these USB MIDI footswitches: iCON G-BOARD and
Logidy UMI3
Aux 2 Aux 1 Talkback Main Right Aux 6 Aux 5 Main Left Aux 4 Aux 3 Power
USB
®
1 2 3 4 5 6
Aux 3/4 Phones
Right Left 4 3 2 1
Power USB
®
1 2 3 4 5 7 6
