58
1001108-01-F

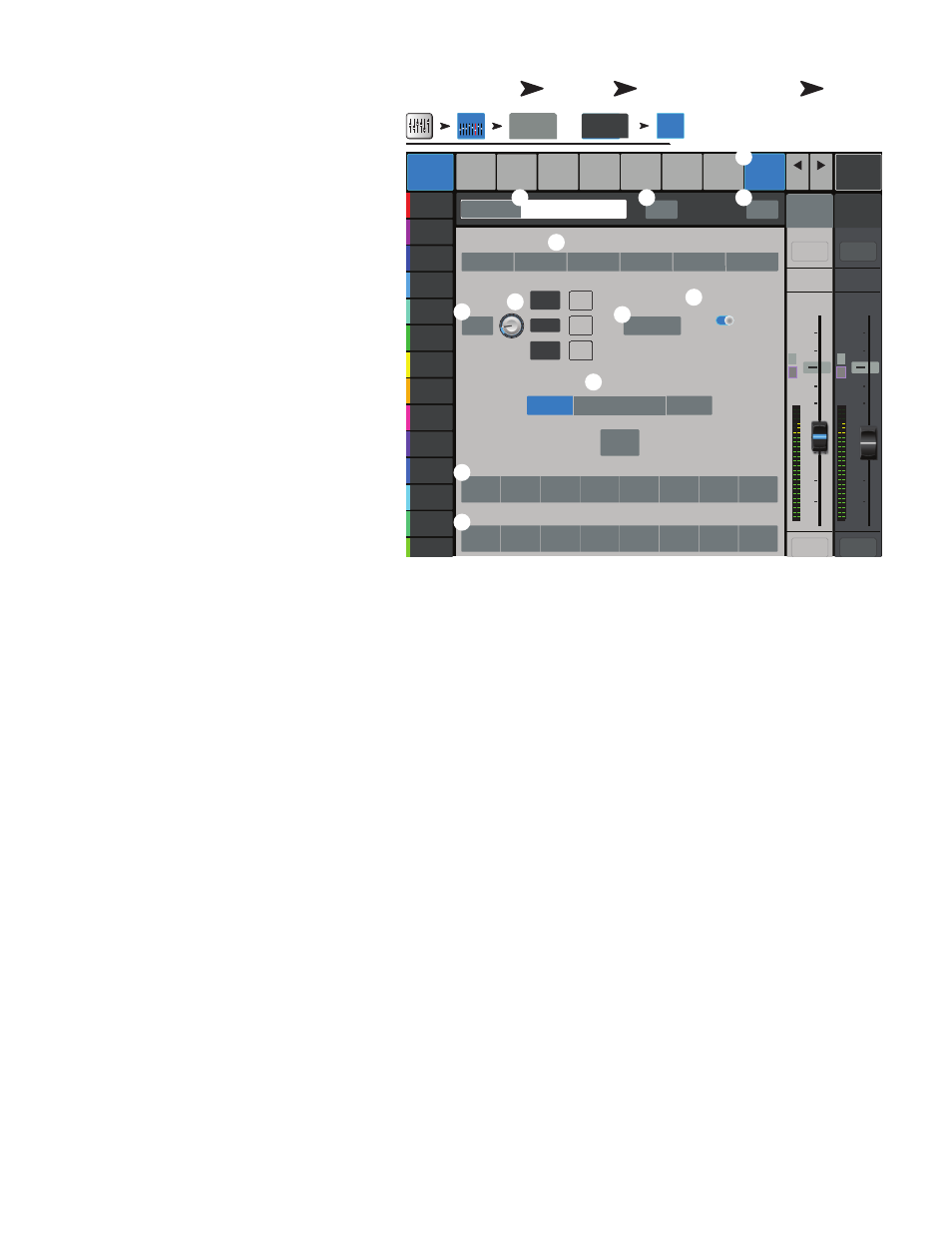

Output Channel − Setup / Delay
Various utility setup functions for Aux and Main output channels.
1. Setup Tab – Selects the Setup screen
2. Channel Name – Displays the channel name.
Touch to display a keyboard and rename the output.
3. Link (Auxes only) – Links adjacent channels.
Odd numbered channel settings are copied to the
even numbered channel. Pan settings are mirrored.
Only odd > even linking is supported.
4. Reset – Returns Setup parameters to factory default
values.
5. Aux Pick-Off (Auxes only)– Determines where
the aux signal is taken from the input channel signal flow.
The selections are: Pre Fdr (default)/ Post Fdr / Pre Dyn
/ Pre All.
6. QSC Amplifier and Speaker
Settings
– Displays tools to assist in optimizing
gain structure and other parameters for selected QSC
amplifiers and loudspeakers.
7. Delay In – Engages or disengages the Delay.
8. Delay – Displays and controls the output delay.
Readouts are provided in milliseconds, feet, and meters.
9. Channel Safe During Scene Recall
– Setting this switch to Safe prevents channel settings
from being changed when a Scene is recalled.
10. Connector Mode – (TouchMix-16 only) Converts auxes 7/8 and 9/10 from stereo outputs with unbalanced TRS jack to mono, balanced outputs.
Default is Stereo Mode.
11. DCA Group Assignments – Select the DCA Groups this channel is to be part of. User-assigned names display on the buttons. See the DCA
Groups topic.
12. Mute Group Assignments – Select the Mute Groups this channel is to be part of. User-assigned names display on the buttons. See the Mute
Groups topic.
Home
Touch Aux
Output Bank
Touch an Aux
Channel
OR Touch Main
Touch
Setup
Inputs 1-8
Aux 4 Setup
Aux Outputs1-8
∞ ∞
Stereo Mono (Bal)
10
5
u
5
10
20 0 0
40
10
5
5
10
40
10
Overview GEQ
Anti-
Feedback
Comp Auxes Presets Setup
Prev Next
Mute
Default
Main
Cue
Scene:
PEQ
Main
L/R
Main
Cue
Aux
4
Main Mix
L/R
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Mute
Amplifiers E Series K Series K2 Series KLA Series KW Series
Recallable
13.5
12.0
4.1
feet
ms
meters
Pre Fader Post Fader Pre Dynamics Pre All
Main L/R
DCA 1 DCA 2 DCA 3 DCA 4 DCA 5 DCA 6 DCA 7 DCA 8
DCA 1 DCA 2 DCA 3 DCA 4 DCA 5 DCA 6 DCA 7 DCA 8
Mute 1 Mute 2 Mute 3 Mute 4 Mute 5 Mute 6 Mute 7 Mute 8
Mute 1 Mute 2 Mute 3 Mute 4 Mute 5 Mute 6 Mute 7 Mute 8
In
Units
Assignments
Aux Pick-Off
Channel Safe
During Scene Recall
QSC Amplifier and Speaker Settings
Aux 4 Aux Link Reset
Connector Mode
L L
1
2 3 4
5
6
7
8
9
11
12
Aux 1
Inputs 1-8
Aux Outputs1-8
OR Setup Main
10
AF AF
