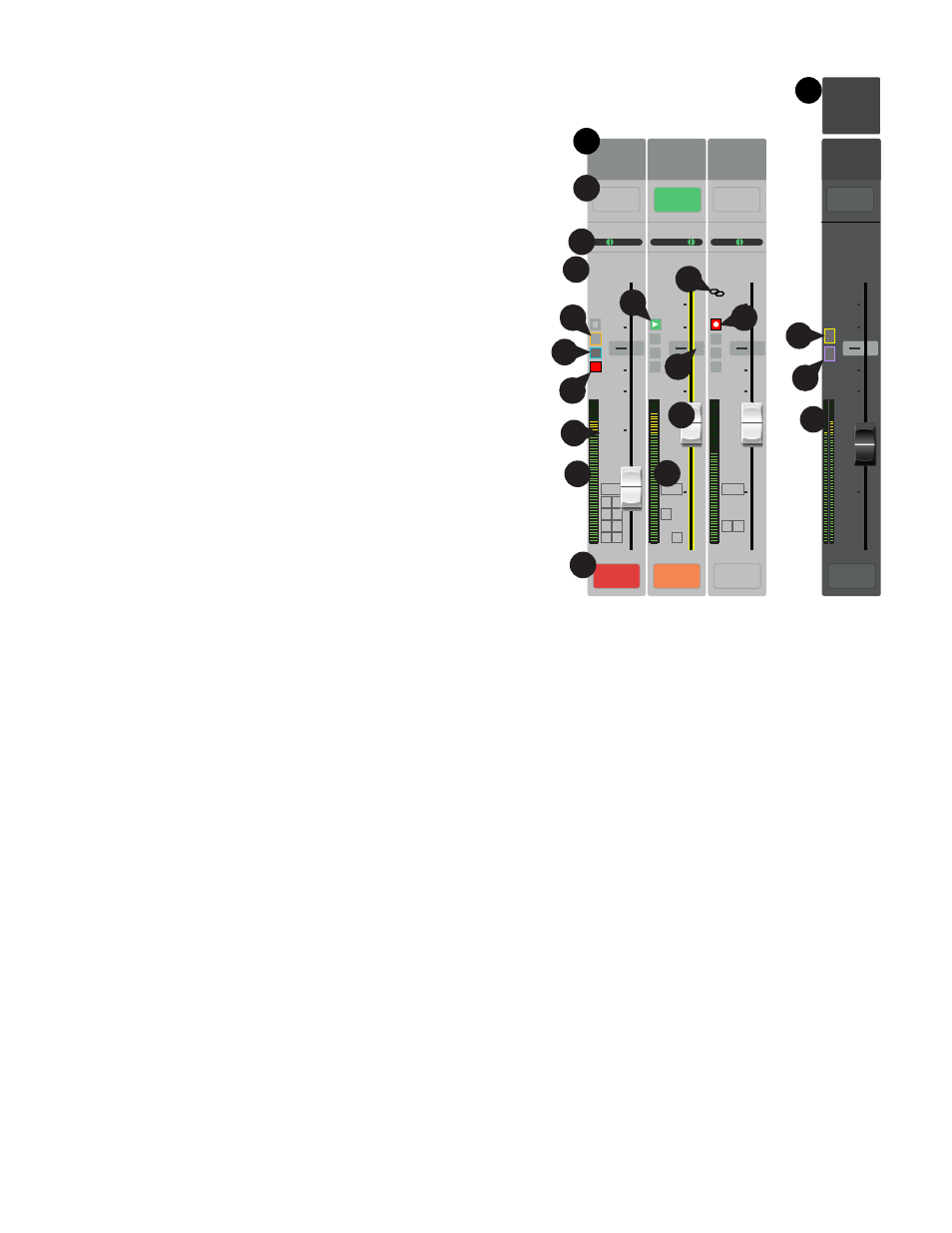

Channel Controls
Input channels are shown on left. FX, Aux, and DCA channels may differ slightly. The
Main L/R Channel is visible on most screens.
1. Select button – Displays the user-defined channel name. Touch to access
Master Channel controls.
2. Channel Cue button – Routes the channel signal to the Phones and
Monitor outputs regardless of Mute status. Green indicates “on”.
3. Pan slider – Adjust by touch or Master Encoder. Stereo pans
are mirrored.
4. Mic 1 – Represents physical XLR (1) and channel type (In, Aux, FX, etc.).
5. C – Indicates the Compressor is engaged. Input channels do not have a
Limiter.
6. G – Indicates Gate is engaged.
7. 48 – Indicates the Phantom Power is on.
8. “ 0 ” (Unity) – 0 dB (Meter)
9. Meter (Input channel) – Indicates the pre-fader signal level regardless of
Mute setting. Can be controlled by source output level, Trim knob or Digital
Gain.
10. Mute – Silences the channel audio to the Main L/R, Auxiliaries and FX.
Does not mute the send to multi-track. Orange color indicates the channel is
muted by DCA or Mute Group.
11. Link – Indicates linked adjacent channels. Lower numbered, odd channel
links to higher numbered even channel.
12. Playback – Indicates that the input to this channel is a recorded track.
13. Recording Armed – Indicates this channel is armed for recording.
14.
U (unity) – 0 dB (Fader)
15. Channel/Main Fader – Adjust by touch or Master Encoder. Yellow slot indicates selected.
16.
Assignments – Indicates to which mixes the channel is assigned: Main (L/R) – all models, Sub Groups (1 – 8) – TouchMix-30 Pro
only.
17. Scene – Displays the name of the active Scene. Touch to access Scenes.
18. L – Indicates the Limiter is engaged
19. AF – Indicates the Anti-feedback Filter is engaged
20. L/R Meters – Indicate Main output signal level.
Joe In 2 In 3
Cue Cue Cue
L C R L C R L C R
Mic Mic Mic
1 2 3
10
5
u
5
10
20 0
40
10 10
5
u
5
10
20 0
40
10 10
5
u
5
10
20 0
40
10
LR
1 2
3 4
5 6
7 8
LR
1 2
3 4
5 6
7 8
LR
1 2
3 4
5 6
7 8
Main
Cue
Main
L/R
10
5
u
5
10
20 0
40
10
Scene:
Deltas Scene II
Mute Mute Mute Mute
G
48
C
G
48
L
AF
C
G
48
C
2
3
4
1
7
15
10
9
6
8
14
11
5
19
18
17
20
16
13
12
