Input Channel − Presets
Recall presets from the factory library. Store and recall user
presets.
1.

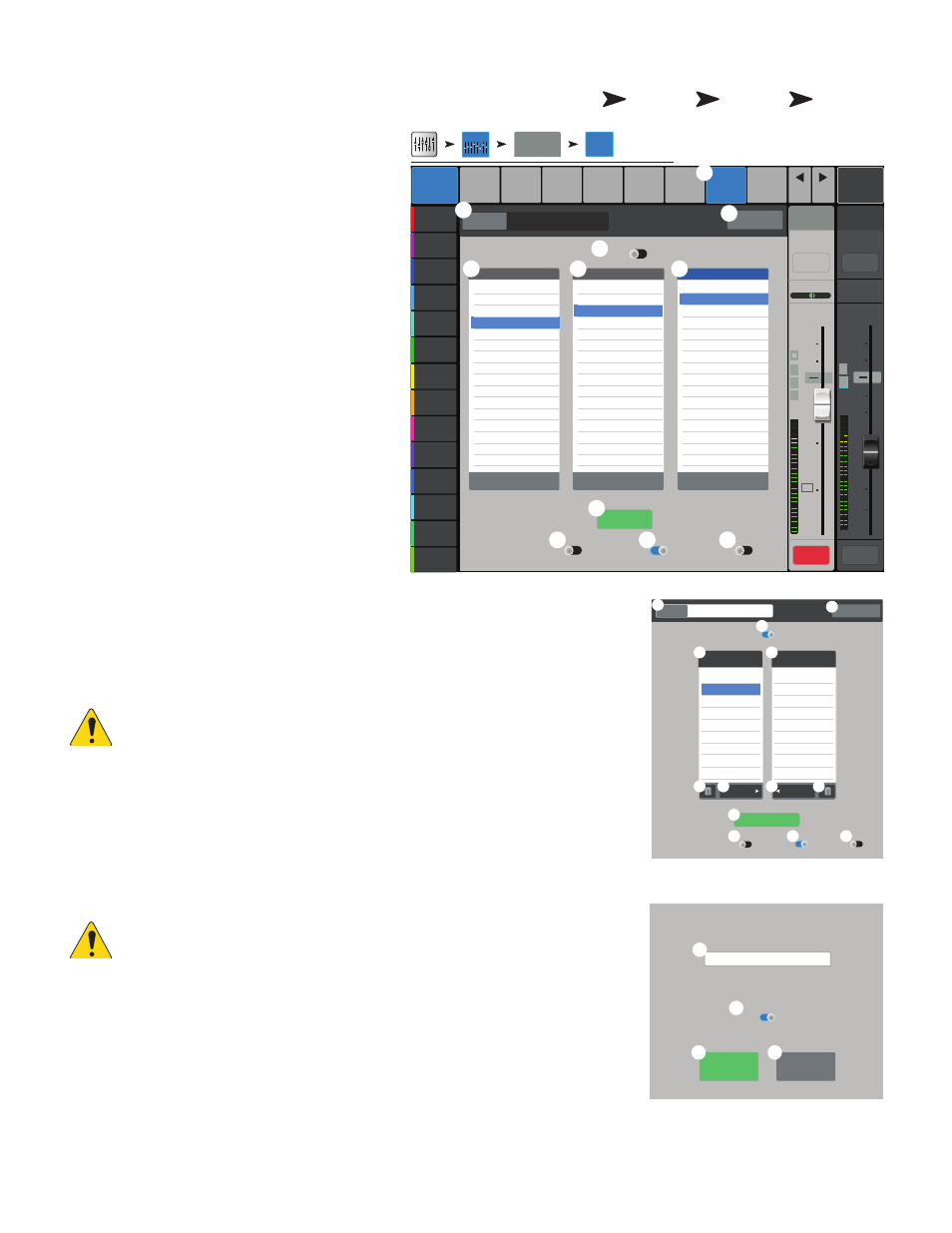

Presets tab – Selects Presets screen.
2. Current Preset – Displays the name of the
current preset.
3. Preset Info (Factory only) – Touch to display details
about a preset. Information provided may include style of
music, instrument details, microphone/pick-up type and
position, or other helpful information.
4. Factory / User switch – Toggles between
Factory and User preset libraries.
• Factory Presets – A library of QSC designed input-
channel presets.
• User Presets – User Presets may be stored to and recalled
from Internal memory or an External (USB) storage device.
5. Instrument list (Factory only) – Displays a list of
instrument categories. .
6. Type list (Factory only) – Displays a list of specific
instruments within the selected Instrument category.
7. Preset Name list (Factory only) – Displays a
list of professionally voiced, live-sound presets.
8. Recall button – Recalls the selected Preset.
Recalls all parameters for an Input Channel except:
Analog/Multi-track state, Track/Arm button, Cue, Mute,
Channel Link state
9. Omit Levels & Assignments switch – When engaged, channel, FX and aux levels as
well as mute, sub group and DCA assignments are not effected by preset recall.
10. Omit Name switch – When engaged, Channel Name is not effected when a preset is recalled.
11. Omit Phantom switch – When engaged, Phantom power setting is not effected when a preset is
recalled
OIUT!: The following controls are available only when the Factory / User switch is set to User.
12. Save / Save As Button – Displays the Save Preset As screen with options for naming
a preset and selecting internal or USB storage destination.
13. Mixer list – Displays a list of user-defined presets that are saved on the mixer.
14. External (USB) list – Displays a list of user-defined presets that are saved on a USB drive currently
connected to the mixer.
15. Copy to USB button – Copy the selected Internal preset to a USB drive connected to the mixer.
16. Copy to Mixer button – Copy the selected USB preset to the Internal Mixer storage.
17. Delete button – Select a preset and touch this button to delete the preset.
OIUT!: When saving a preset using an external tablet device do not use unsupported characters in the
name. Supported characters are 0 to 9, A to Z, a to z, a period (.), hyphen (-), equal sign (=), exclamation
point (!), parenthesis, underscore (_), or plus sign (+).
18. Save button – Saves the preset to the location indicated by the Internal / External (USB) switch. In
addition, the Save button recalls the preset.
19. Cancel button – Cancels the Save operation
20. File name field – This field displays the currently recalled preset name. There are two options:
• Choose to keep the same name. If the name exists in the target location, confirmation is required to overwrite.
• Change the name partially or in whole. If the name does not exist in the selected location, the preset saves.
21. Storage Location switch – Select either Mixer or USB for the location in which the preset is to
be saved.
