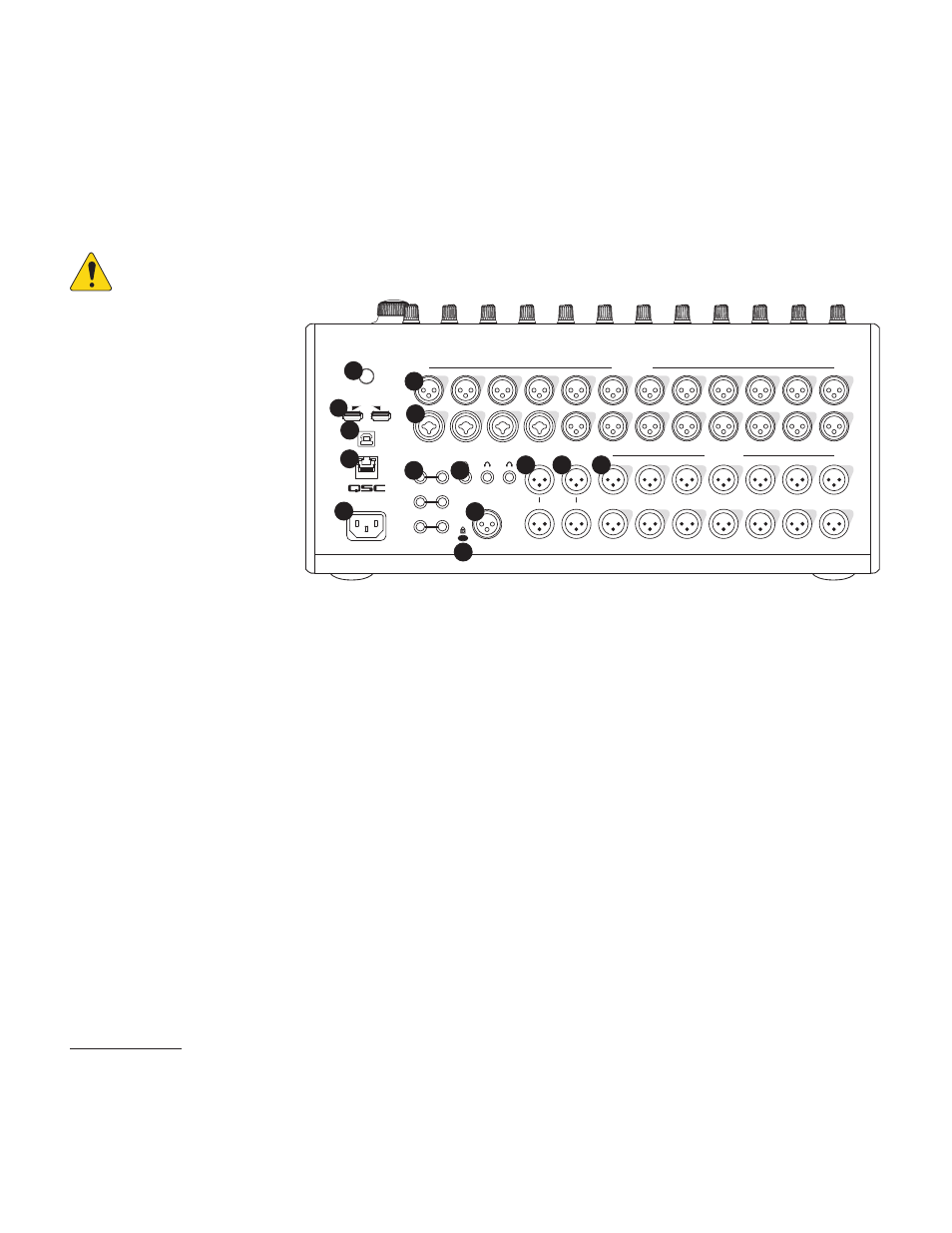

Rear Panel (TouchMix-30 Pro)
1.
Standby
– Press to enter or exit Standby. A confirmation screen displays when entering Standby.
2.
USB
– 3.0, Type A For attaching USB storage devices
1
, MIDI
2
foot switch, Wi-Fi adapter, External Control Surfaces or upgrading the
mixer firmware.
3.
USB
– Type B For attaching a Mac-based DAW. The Mac must be running OS Yosemite or later.
4.
Ethernet
– RJ45 For connecting to a network with wireless capability.
5.
AC Mains
– power connection, 100-240 V, ~85 W, 50/60 Hz
CAUTION!:
If AC power is removed, wait for 5 seconds before reapplying the AC power.
6.
Analog Inputs
1 through
20 – Balanced XLR female
connectors
7.
Analog Inputs
21 through
24 – Balanced XLR / 1/4” TRS
female combination connectors
8.
Stereo Inputs
25 - 30
TRS – Two female balanced
linked inputs per stereo pair. Odd
number is left side, even number
is right side. Stereo pair 29/30
shared with 3.5 mm TRS on top
panel.
9.
Cue Phones
,
Aux 13/14,
and Aux 11/12 –
Stereo
female TRS 1/4” outputs
10.
K Lock® Security Slot
– Compatible with the MicroSaver Security Cable
11.
Talkback
microphone – Balanced female XLR, 48 V phantom power available
12.
Monitor Left and Right
– Balanced male XLR outputs
13.
Main Left and Right
– Balanced male XLR outputs
14.
Auxiliary outputs 1 through 14
– Balanced male XLRs
1 Drives must be formatted using the FAT32 file system. A FAT32 format utility is accessible from the Recording Setup screen. For best results use 7200
RPM, USB 3 hard drives or high-speed SSD. Drive performance is critical for recording. For more information and to see a list of qualified drives, visit qsc.
com. At this time, the TouchMix-30 Pro-30 supports playback of MP3 digital audio files from the USB port, and exporting the recorded 2-Track files to the
MP3 format.
2 The TouchMix supports “class compliant” USB MIDI devices. QSC has verified proper operation with these USB MIDI footswitches: iCON G-BOARD and
Logidy UMI3
Stereo Inputs
25/26
Aux Outputs
Analog Inputs
Right
Left
Monitor
L
R
27/28
L
R
29/30
L
Talkback
(48V Selectable)
Aux
11/12
Aux
13/14
Cue
Phones
12
11
10
9
8
7
6
5
4
3
2
1
20
21
22
23
24
19
18
17
16
15
14
13
9
2
10
3
11
4
12
5
13
6
14
7
8
1
100-240V ~85W 50/60Hz
Mains
USB
Ethernet
USB DAW
Standby
www.qsc.com
Right
Left
Main Mix
R
13
14
12
5
7
8
6
10
11
9
2
1
4
3
