2-Trk Playback − Auxes
Auxiliary outputs are used to create a mix for stage
monitors, in ear monitors, remote speakers or
video / broadcast.

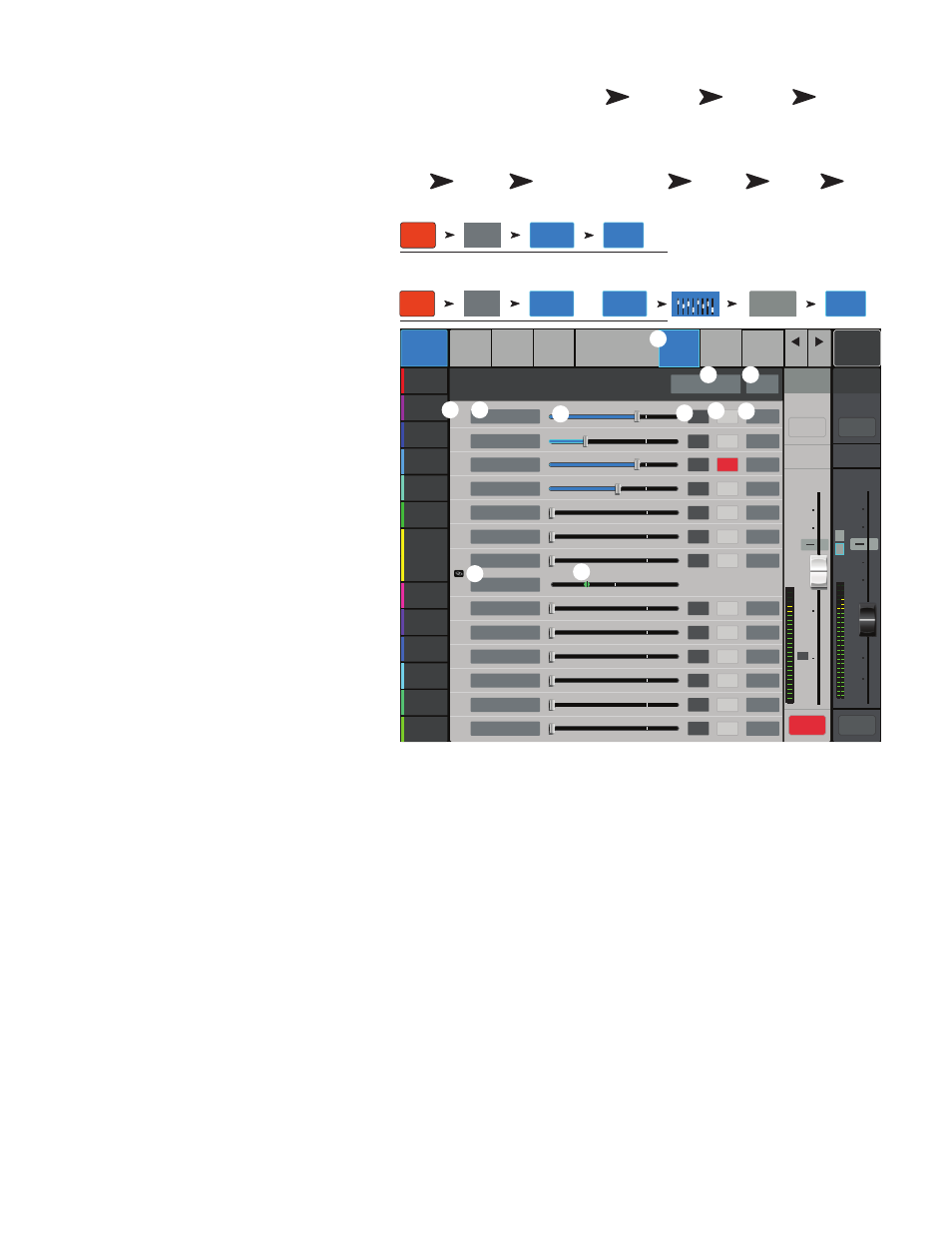

1.
Auxes tab
– Selects the Aux Sends screen
2.
Aux Overview button
– Navigates to
the Aux Overview which displays all Aux mixes
on a single screen.
3.
Reset button
– Resets all Aux Sends
controls, for the selected input channel, to the
factory default.
4.
Aux send system number
– Displays
the number of the associated Aux Output.
5.
Aux master name
– Displays the Aux mix
name. Touch to navigate to the associated Aux
output controls.
6.
Aux send sliders
– Sets the level of audio
sent from the channel to the Aux output; -40 dB
(-Inf) is off.
7.
Gain
– Provides a numeric display of the Aux
send level.
8.
Mute
– Mutes the send from the channel
to the assiciated Aux mix. Does not effect any
other mixes.
9.
Pick-off point
– Indicates if the Aux Buss
is taking a
Pre Fdr/ Post Fdr / Pre
Dyn / Pre All signal
. Touch to navigate
to the associated Aux output controls to change
the setting.
10.
Aux link indicator
– Indicates the Aux
channels are linked. You can link Aux channels
from an Input channel Aux Sends screen by
touching one of the Aux Master buttons, or one
of the pick-off buttons. Both take you to the Aux
channel Setup screen where linking is accomplished.
11.
Aux sends pan slider
– Pans the signal between a linked pair of auxes.
Press Rec/
