Output Channel − Auxes
(TouchMix-30 Pro only)
Auxiliary outputs 1 through 8 may be mixed to Aux
Mixes (buses) 9 through 14. In addition, the Main L/R
and Sub Groups can send audio to all 14 Auxes.

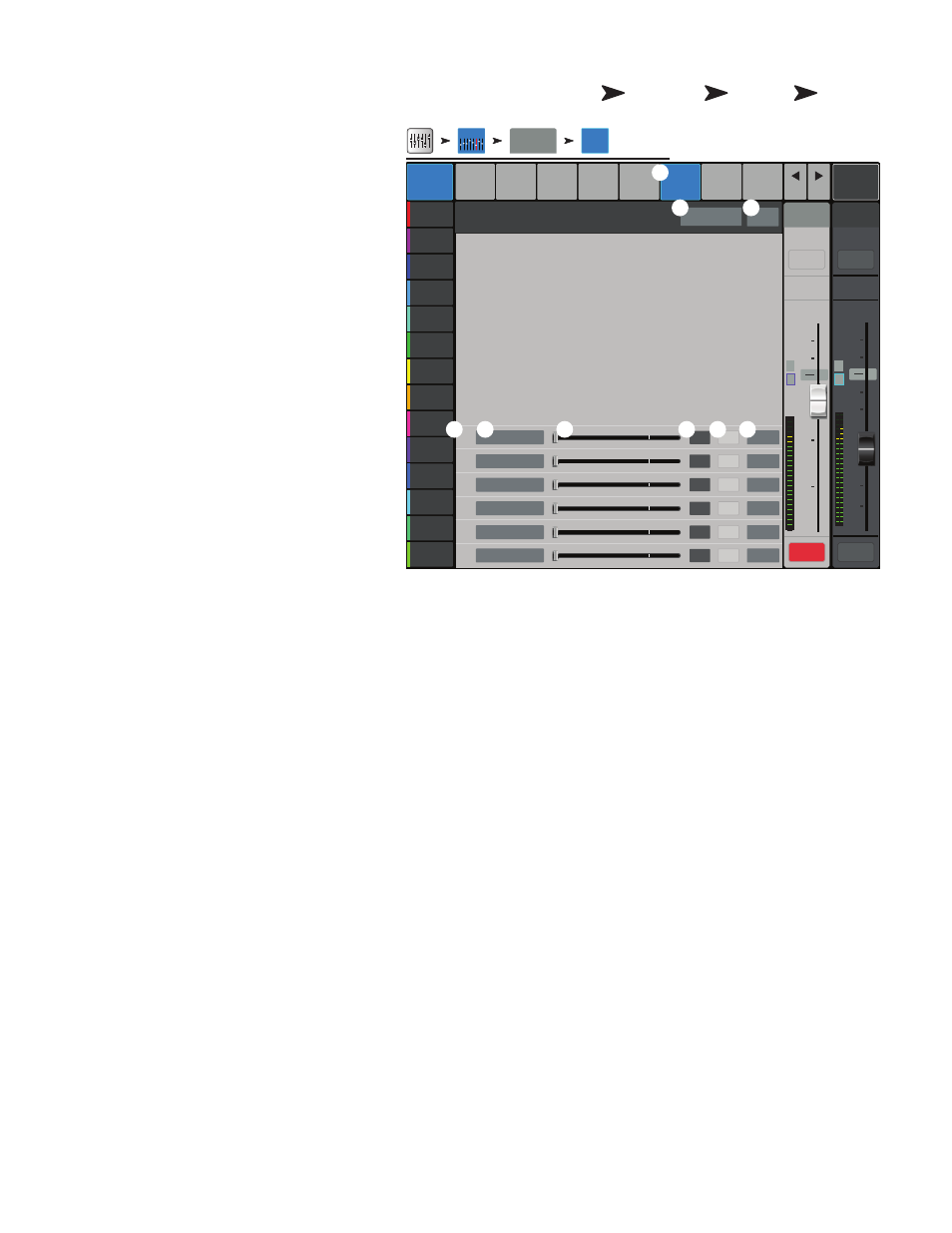

1. Auxes tab – Selects the Aux Sends screen
2. Aux Overview – Navigates to the Aux
Overview which displays all Aux mixes for the
selected Fader Bank.
3. Reset – Resets all Aux Sends controls for the
selected input channel, to the factory default.
4. Aux send number –Displays the number
of the associated Aux Output.
5. Aux master name – Displays the Aux mix
name. Touch to navigate to the associated Aux
output controls.
6. Aux send sliders – Sets the level of audio
sent from the channel to the Aux output; -40 dB
(-Inf) is off.
7. Gain – Provides a numeric display of the Aux
send level.
8. Mute – Mutes the send from the channel to
the associated Aux mix. Does not effect any
other mixes.
9. Pick-off point – Indicates if the Aux Buss
is taking a Pre All / Pre Dyn/ Pre Fdr / Post All signal . Touch to navigate to the associated Aux output controls to
change the setting.
