Scanner
Overview

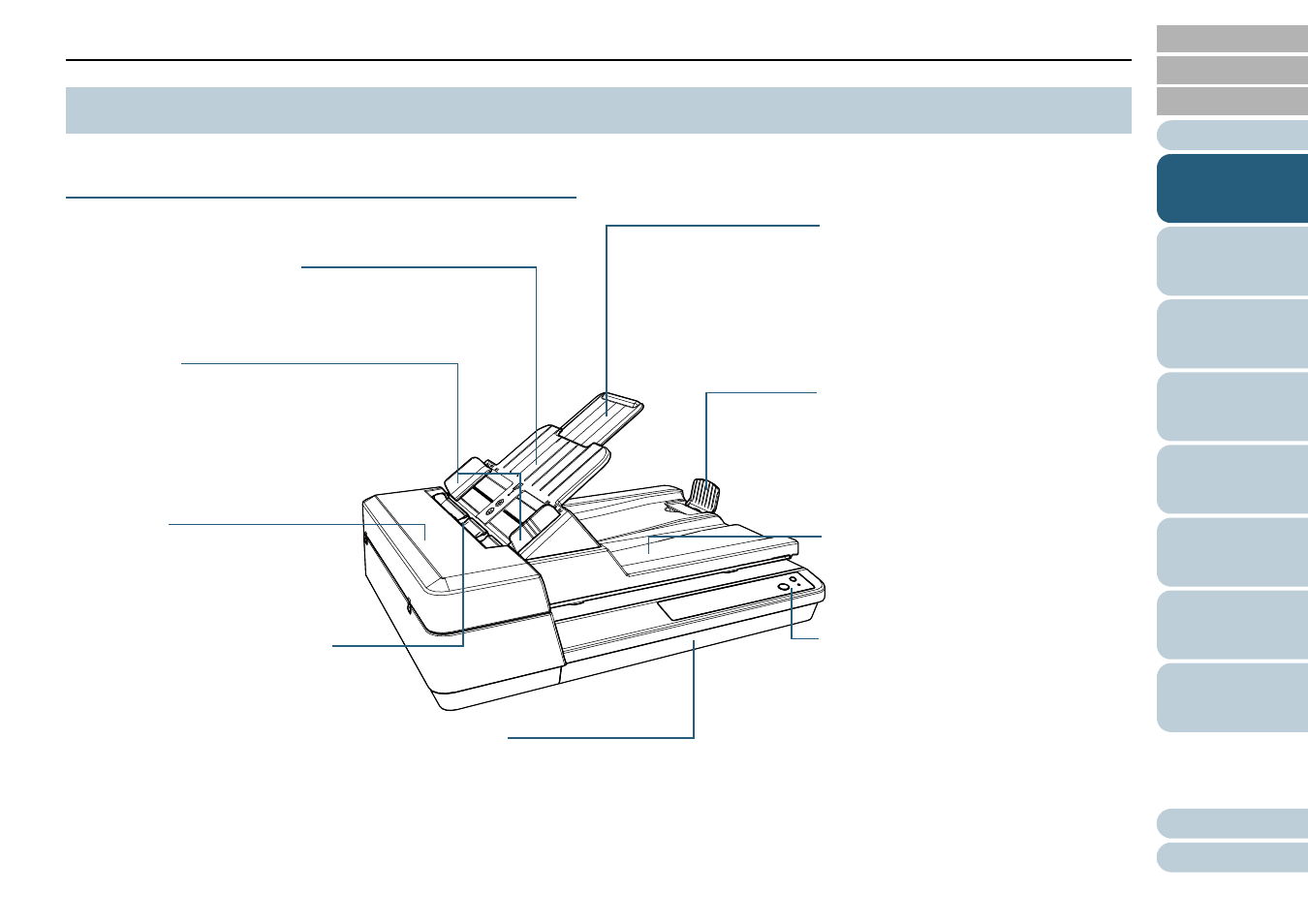

This section shows the names of the scanner parts.
Front
1.2 Parts and Functions
Stacker
Stacks up the ejected documents.
Operator Panel
Consists of buttons and an LED indicator.
Can be used to operate the scanner or
check the status.
For details, refer to
"Chapter 3 How to Use
the Operator Panel" (page 40) .
ADF
(Automatic Document Feeder)
Pulls and feeds the documents one sheet at a
time from the ADF paper chute (feeder).
Open this to replace consumables or to clean the
inside of the scanner.
Side Guides
Positions the documents in place when the
documents are loaded in the ADF paper chute
(feeder) as they are fed into the scanner.
ADF Paper Chute (Feeder)
Holds the documents to be scanned.
Chute Extension
Pull this out to adjust to the document length.
Flatbed
When you scan a document that cannot be
scanned with the ADF, such as thin paper or a thick
document such as a book, place the document on
the glass section.
Stopper
Lift this up if needed.
ADF Cover
Open this to replace consumables or to
clean the inside of the scanner.
