When you start a scan, documents that are loaded in the ADF
paper chute (feeder) are fed into the ADF one by one.
Using the chute extension will keep the documents straight
and feed them smoothly.
1

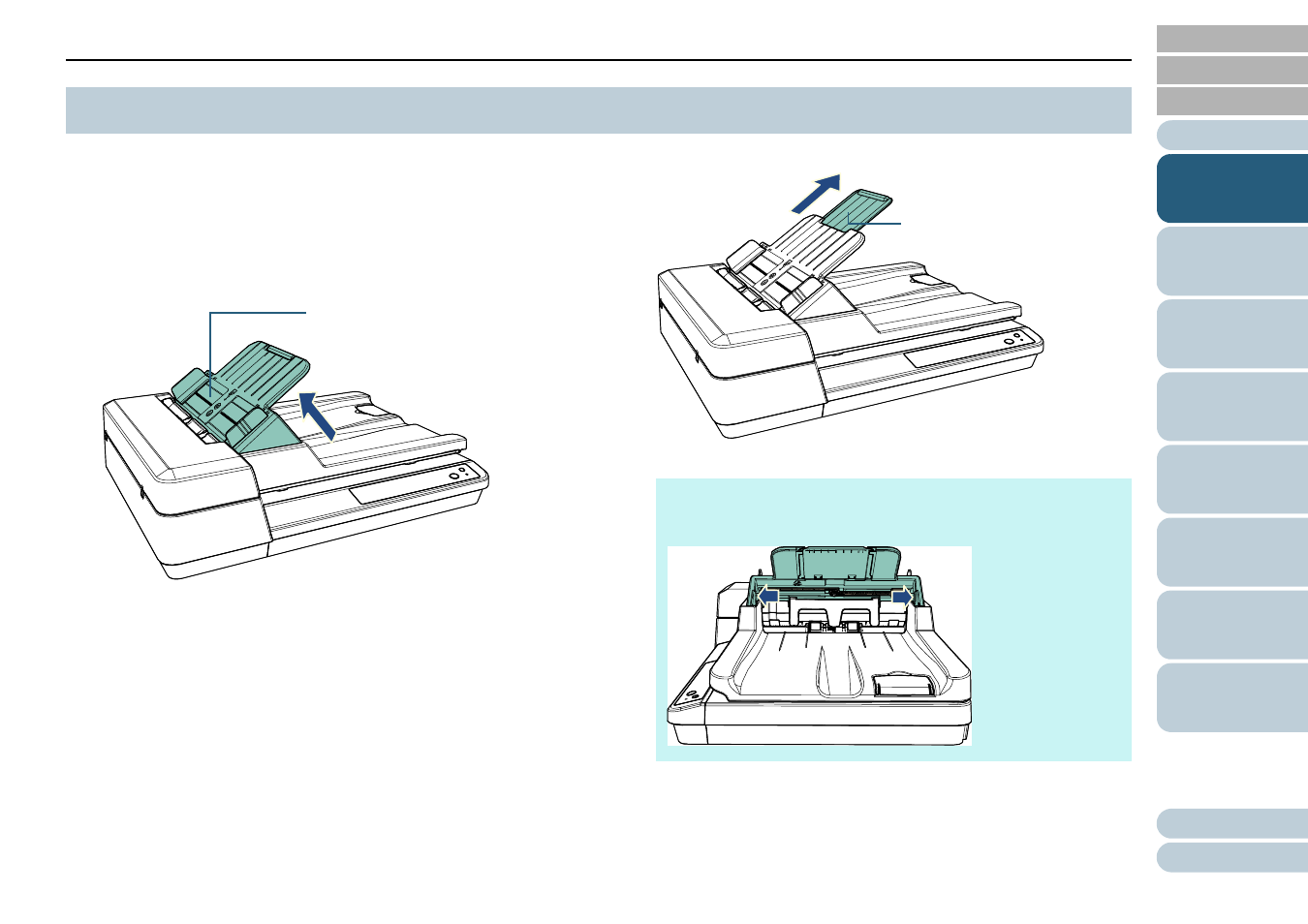

Lift up the ADF paper chute (feeder) until it locks in place.
2
Pull out the chute extension.
1.6 Setting Up the ADF Paper Chute (Feeder)
ADF Paper Chute (Feeder)
HINT
When the ADF is not used, push the parts indicated with an arrow
outwards and lower the ADF paper chute (feeder) in place.
Chute Extension
