Pad Unit (× 1)
Gently wipe the dirt and dust off the surface of the rubber pad.
Ultrasonic Sensor (× 2)
Gently wipe the dirt and dust off the surface of the ultrasonic sensors. If
it is difficult to clean, use a cotton swab.
Glass (× 2)
Gently wipe the dirt and dust off the surface of the glass sections.
Pick Roller Unit (× 1)/Plastic Idler Roller (× 4)/Feed Roller
(× 4)/Eject Roller (× 2)/Rubber Idler Roller (× 2)
Gently wipe off any dirt or dust as you rotate the roller manually, taking
care not to damage the roller surface. In particular, if black foreign
matter gets on the rollers, make sure that they are cleaned properly.
To avoid injuries, be careful not to get your
fingers caught on the pick spring (metal
part).
ATTENTION
 Vertical streaks may appear on the scanned image when the glass
sections are dirty.
 When cleaning, be careful not to damage the following parts with
your hands, a cloth, or a Cleaning Wipe.
- Pick spring (metal part)
- Mylar sheet
- Document sensor
- Anti-static brush

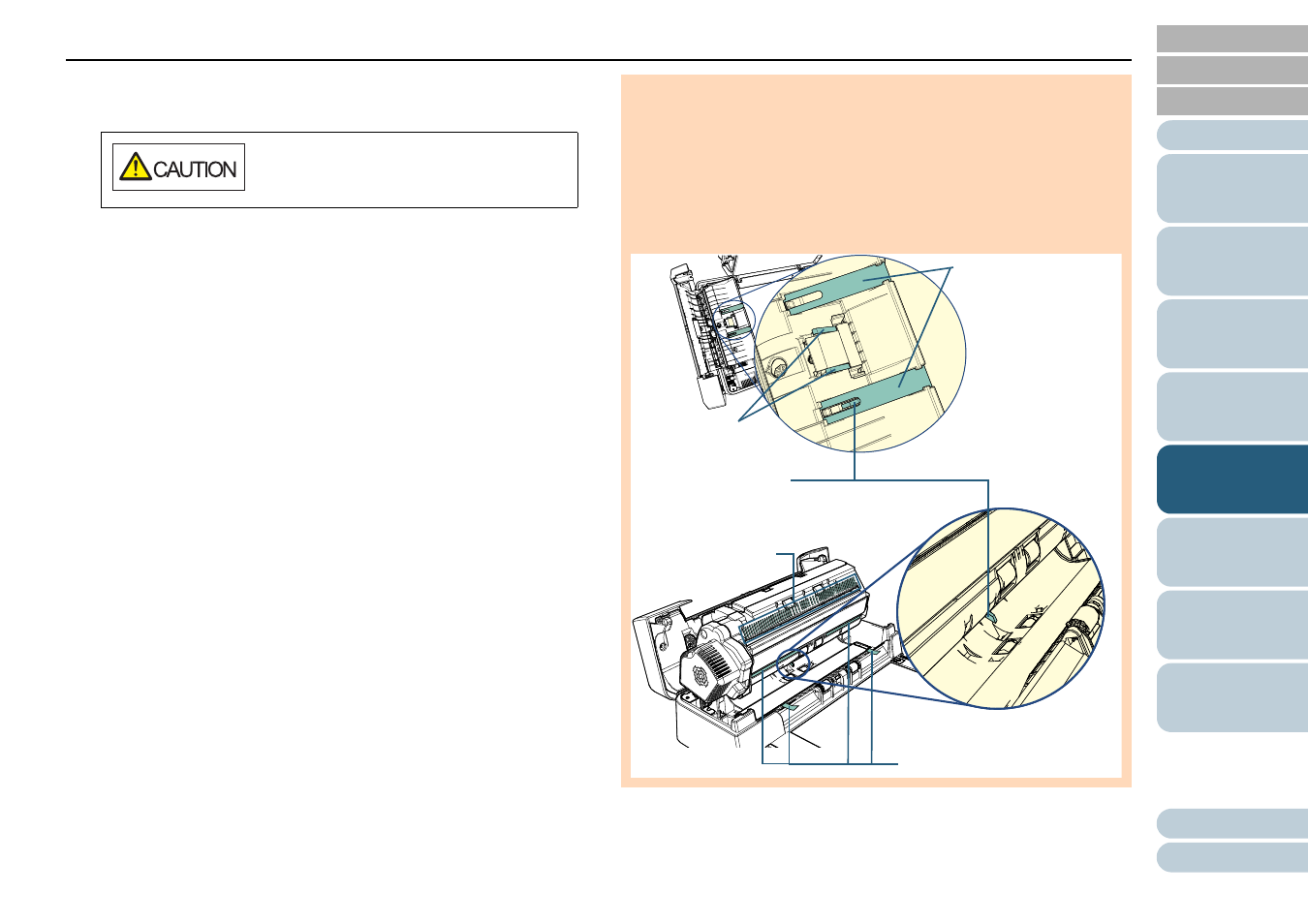

Document
Sensors
Pick Springs
(Metal Part)
Mylar Sheets
Mylar Sheets
Anti-Static Brush
