Attach a new pick roller unit.
1 Insert the end of the shaft into the slot while holding the bushing, and
insert the other end to the left.
2 Rotate the bushing until it clicks in the direction of the arrow.
7
Close the ADF cover.
For details, refer to "1.4 Opening/Closing the ADF" (page 20) .
8
Plug the power cable, and turn on the scanner.
For details, refer to "1.3 Turning the Power ON/OFF" (page 19) .
9
Reset the sheet counter in the Software Operation Panel.
For details, refer to "Resetting the Sheet Counters" (page 103) .
ATTENTION
Check that the pick roller unit is attached properly. Otherwise, it
may cause feeding errors such as paper jams.

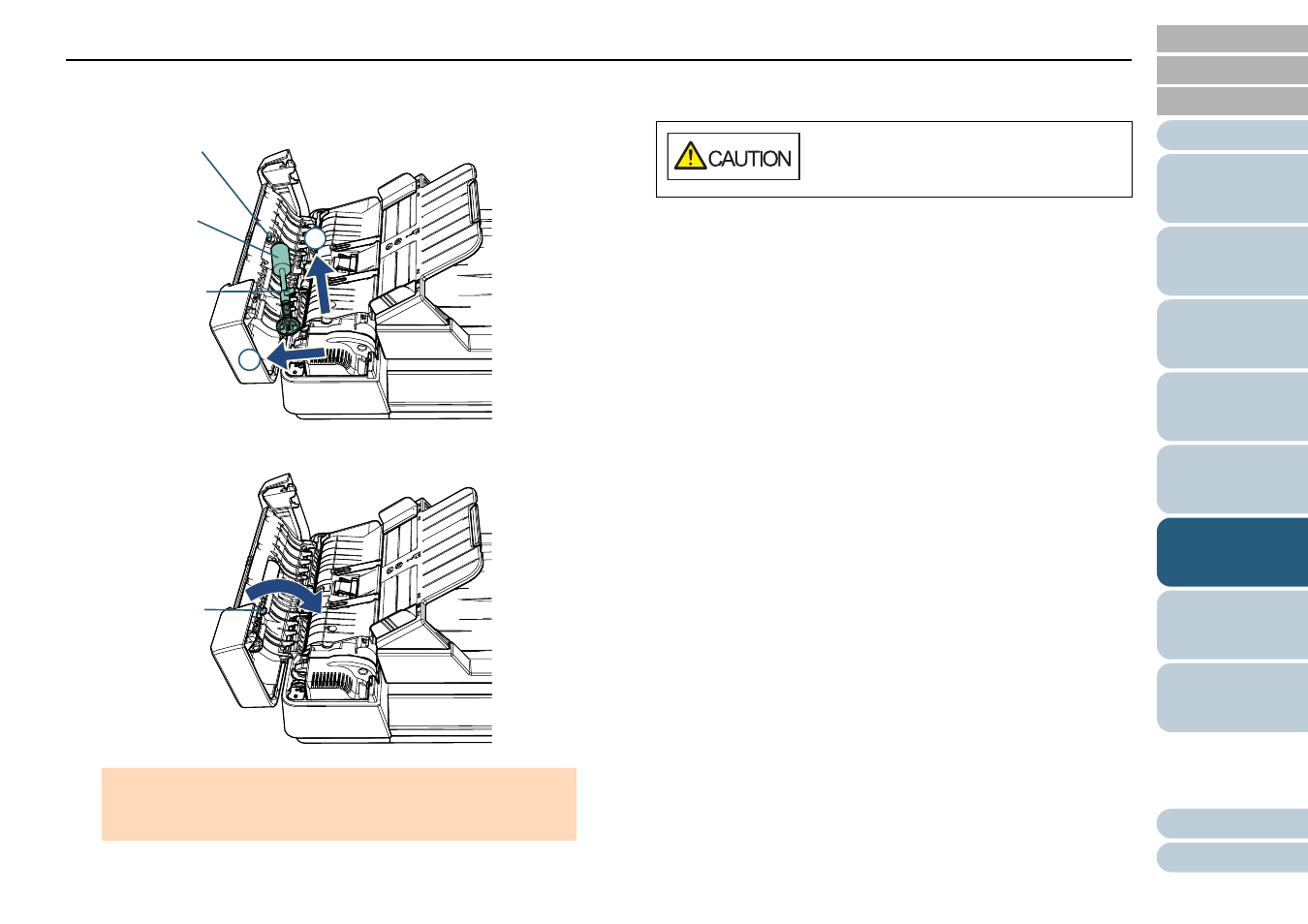

Bushing
Slot
1
2
Pick Roller
Unit
Bushing
Be careful not to have your fingers caught
when the ADF cover closes.
