Chapter 6 Replacing the Consumables
Appendix
Glossary
Introduction
Index
Contents
TOP
63
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Scanner
Overview
Replacing the
Consumables
6

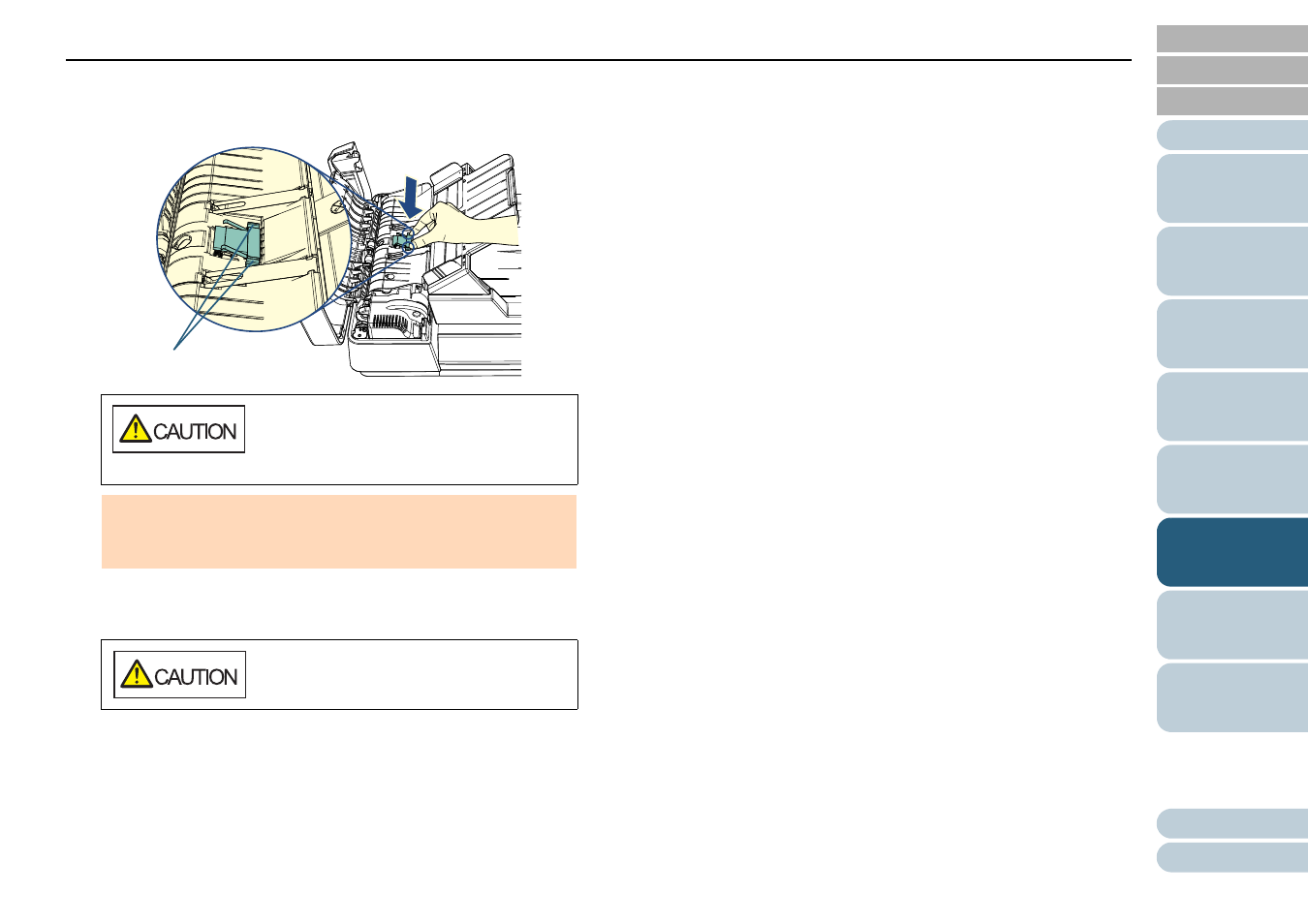

Attach a new pad unit.
Place the pad unit in its original position and push the right and left
catches into slots.
7
Close the ADF cover.
For details, refer to "1.4 Opening/Closing the ADF" (page 20) .
8
Plug the power cable, and turn on the scanner.
For details, refer to "1.3 Turning the Power ON/OFF" (page 19) .
9
Reset the sheet counter in the Software Operation Panel.
For details, refer to "Resetting the Sheet Counters" (page 103) .
To avoid injuries, be careful not to get your
fingers caught on the metal part that has
been exposed after the pad unit was
removed or the pick spring (metal part).
ATTENTION
Check that the pad unit is attached properly. Otherwise, it may
cause feeding errors such as paper jams.
Be careful not to have your fingers caught
when the ADF cover closes.
Catches
