5.5 Installing the expansion cards
5 Installation
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
5-8

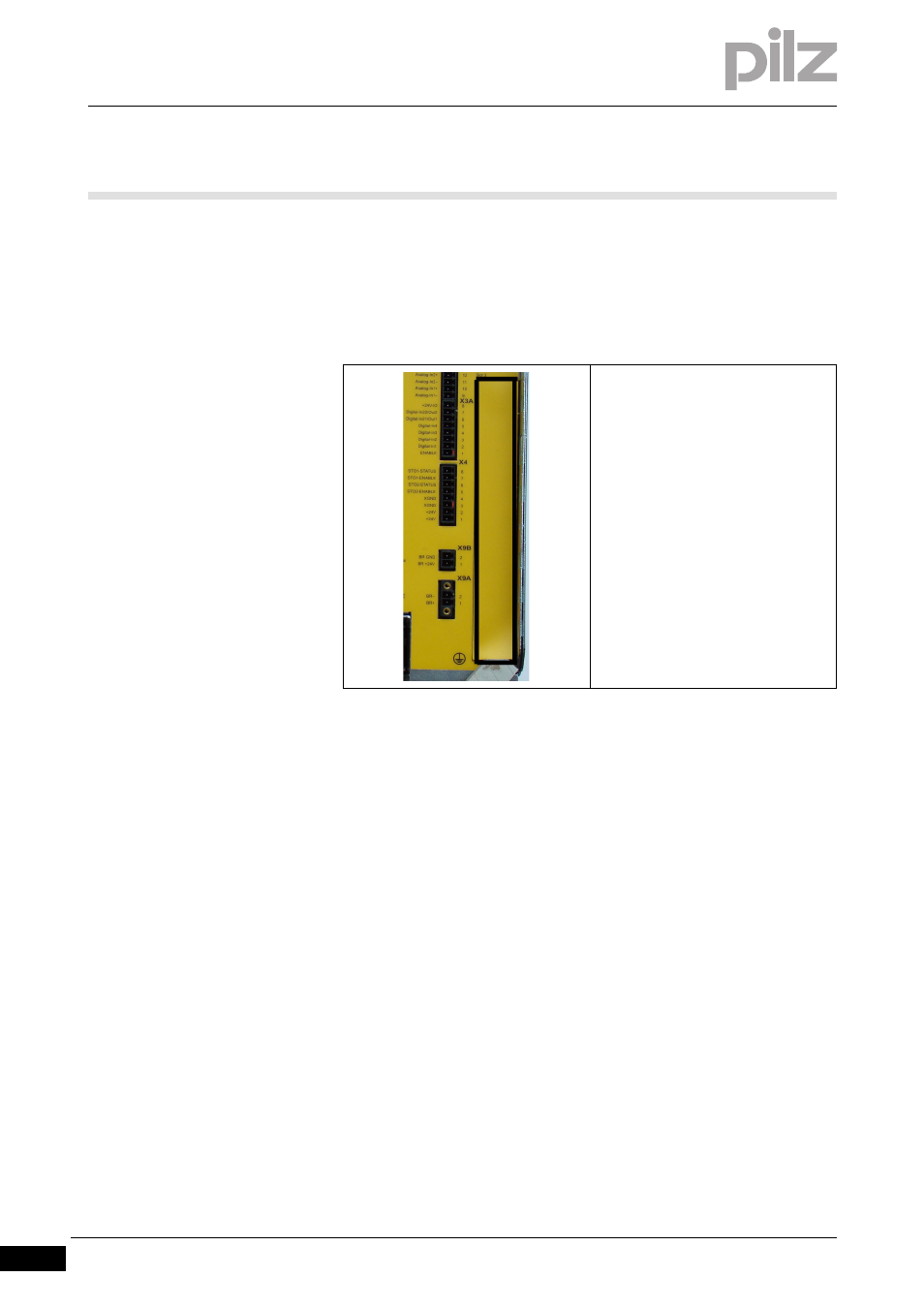

5.5.3 Expansion cards for slot 3
Expansion cards for slot 3 5- Montage_Erweiterung_3
The following expansion cards are available for slot 3:
 PosI/O, PosI/O-AO
 PMCprotego S1
 PMCprotego S2
The procedure for incorporating the
expansion card into slot 3 is similar to
that described for slot 1.
Remove the front membrane.
Lever out the cover plate beneath the
film.
Insert the expansion card into the slot.
Fasten the front plate of the expan-
sion card using the screws provided.
