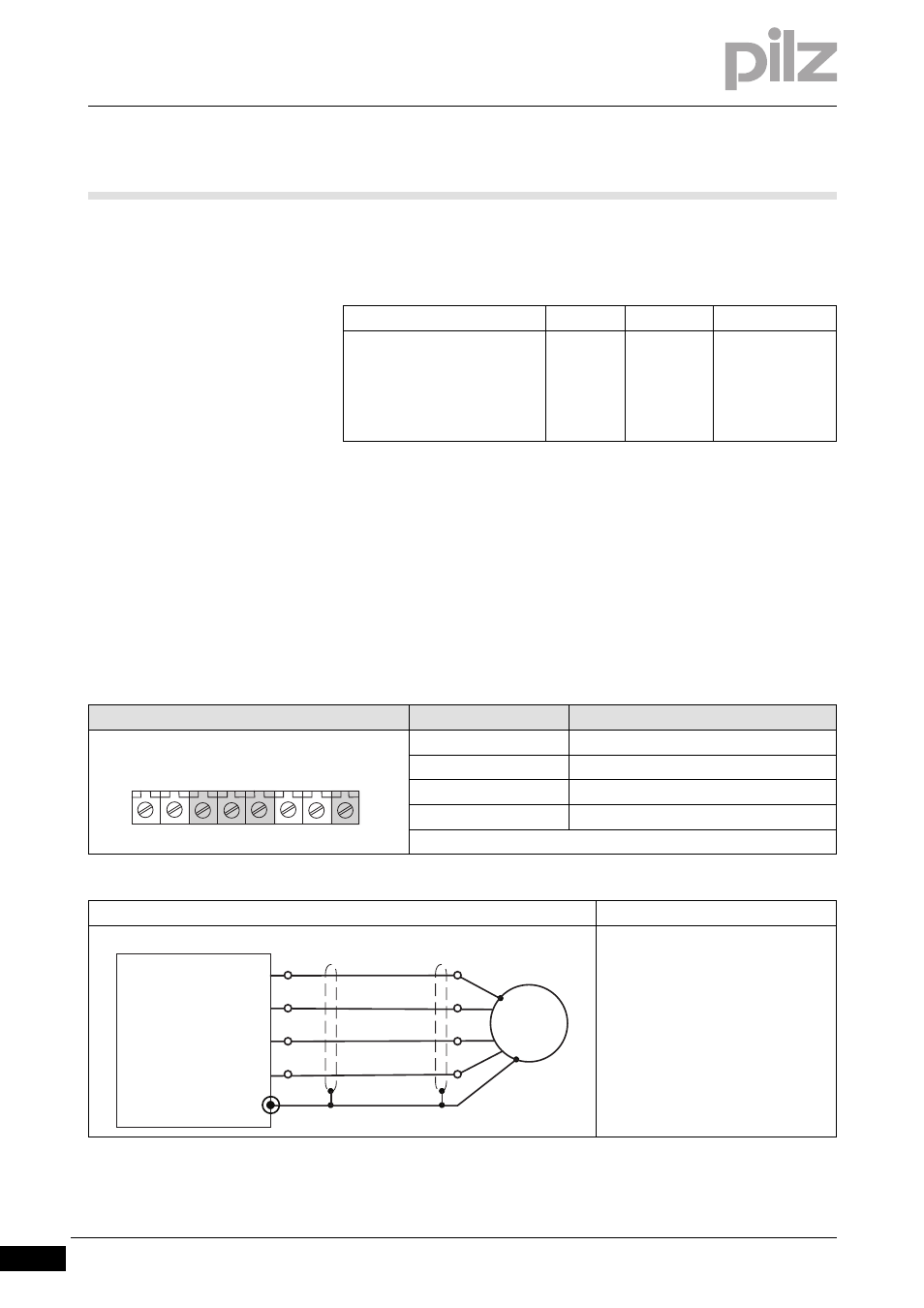

6.6 Power element
6 Wiring
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
6-16
Use the following fuses for F
N1
, F
N2
and F
N3
, depending on the device
type.
US types in brackets
6.6.2 Motor
Motor 6- ][Verdr_Leiterquerschnitte_Verweis
Under “Connection cables”, please note the requirements for the:
 Cable cross sections
 Insulation material
][Verdr_Motor_protego_D_48_72  The motor connection must be shielded appropriately.
Fuse
Device type D.48 D.72 Type
Blow-out fuse or similar 60 A 80 A gRL or gL 400V/
500V
(Fuse classes
RK5/CC/J/T,
600VAC 200kA,
time-delay)
Connector pin assignment
Connector X8 Designation Description
W2 Motor connection phase W
V2 Motor connection phase V
U2 Motor connection phase U
PE Earth conductor
Connection
Output circuit Motor with brake
Cable length
≤
25 m
Connect the shielding on both ends
X8
-RB U2 W2 V2 +RB -DC +DC PE
PMCprotego X8
M
PE
U2
V2
W2
PE
U
V
W
