7-7
7.2 Commissioning the servo amplifier
7 Commissioning
7.2.6 Set parameters for the servo amplifier
Set parameters for the servo amplifier 7- ][Inbetrieb_Parametrieren_1
Please note the following requirements:
 The servo amplifier must not be enabled (ENABLE = 0).
 The mains voltage must be switched off.
 The commissioning software PDrive must have been launched.
Set the basic parameter settings
1. In the project window, select Setup -> Basic Setup .
The "Basic Setup" window appears.
This contains information about the servo amplifier (hardware,
firmware, serial number, operating hours).
2. Change the entries for the mains voltage and servo amplifier.
If necessary, you can change the following fields, for example:
– Name : Identification for servo amplifier
– Maximum mains voltage : 230 V, 400 V or 480 V
][Inbetrieb_Parametrieren_2
Select motor from motor database
1. Select Tools -> Motor Database…
The Pilz Motor Database window appears.
2. Enter the motor's type code.
You'll find the type code on the motor's type plate. Make your entries
using buttons (1) or (2).
Example: PMCtendo AC2.32/0/M/X/X/X/H/6

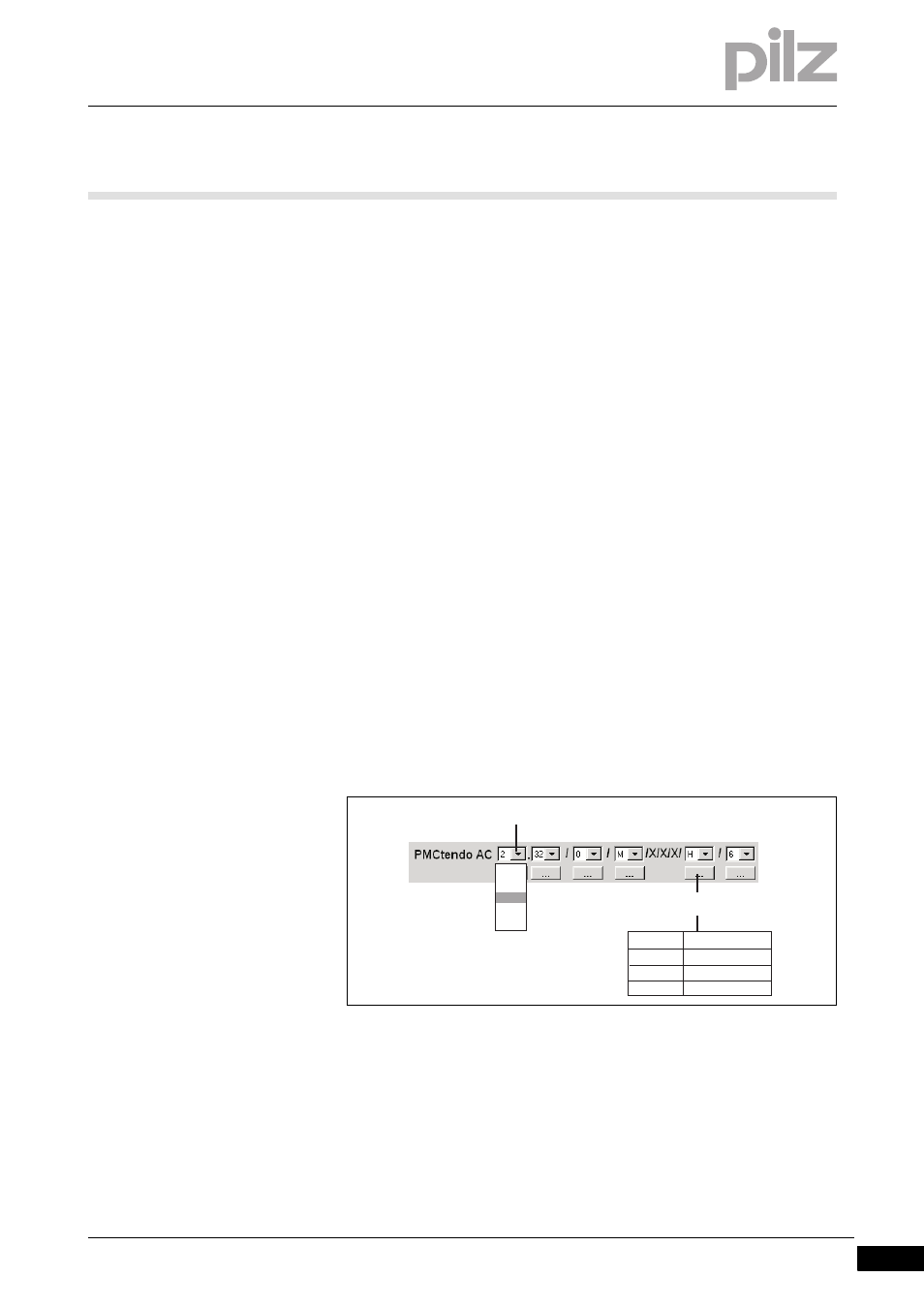

Fig. 7-2: Enter the motor's type code
Download the motor data to the servo amplifier
1. Click Apply to download the parameters to the servo amplifier.
Or click on Export Parameter File if you wish to save the parameters
in a file.
A dialogue box opens.
(1)
H 400 V
M 230 V
(2)
1
2
3
4
