6.6 Power element
6 Wiring
Use the following fuses for F
B1
and F
B2
, depending on the device type.
US types in brackets
6.6.5 Intermediate circuit
Intermediate circuit 6- ][Verdr_Leiterquerschnitte_Verweis
Under “Connection cables”, please note the requirements for the:
 Cable cross sections
 Insulation material
][Verdr_Zwischenkreis_protego_D48_72
The connections for the intermediate circuit are
 Not short circuit and earth fault proof
 Not reverse polarity protected.

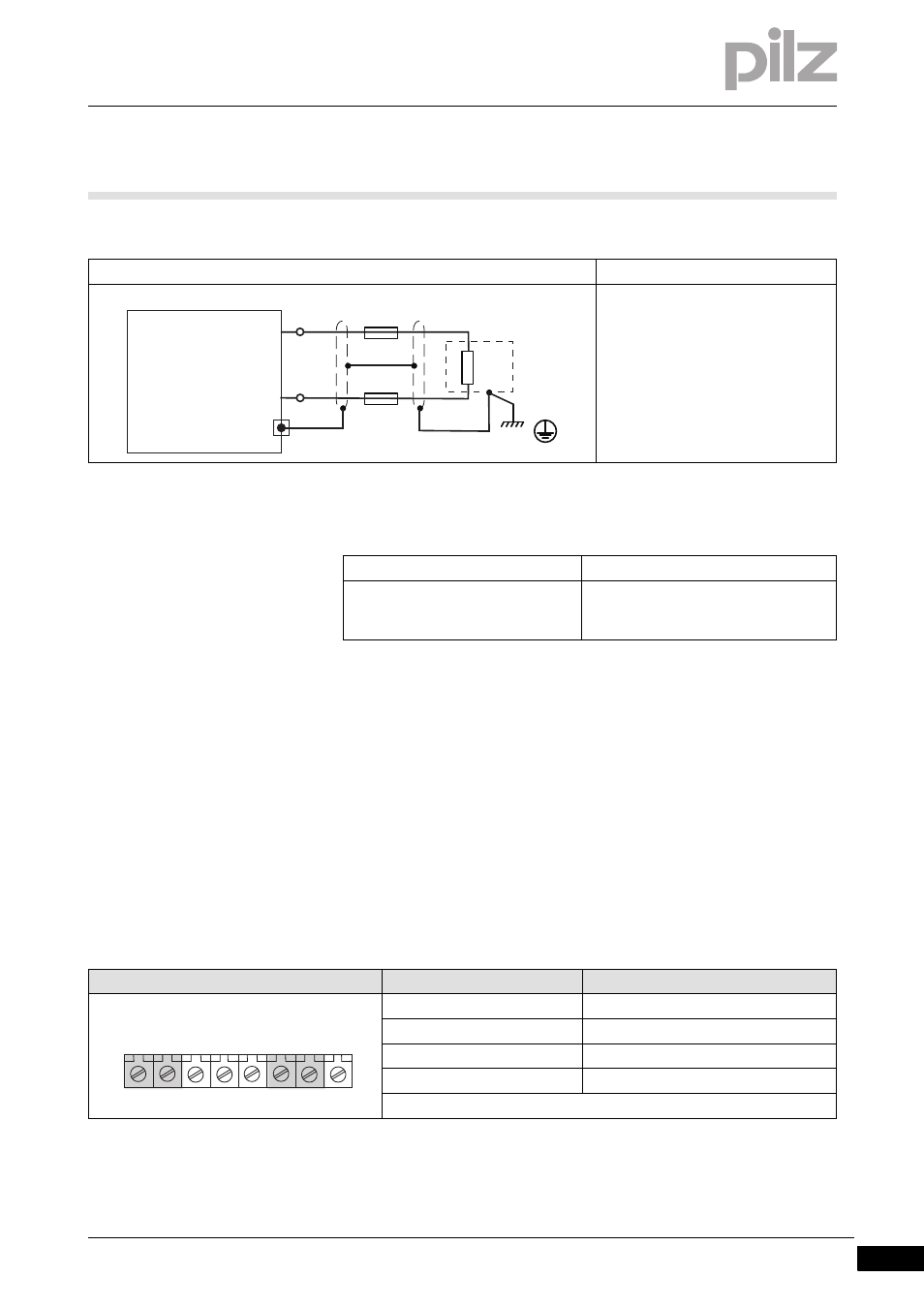

Connection
Output circuit External brake resistor
Fuse
Device type D.48, D.72
Blow-out fuse or similar 125 A, Bussmann HLS, 690V/125A
(Bussmann FWP-xxxA14F, Size
14x51mm mit 800Vdc UL approval
Connector pin assignment
Connector X8 Designation Description
-RB Connection of external brake resistor -
+RB Connection of external brake resistor +
-DC Intermediate circuit voltage -DC
+DC Intermediate circuit voltage +DC
PMCprotego X8
RBe
+RB
-RB
FB1
FB2
X8
-RB U2 W2 V2 +RB -DC +DC PE
